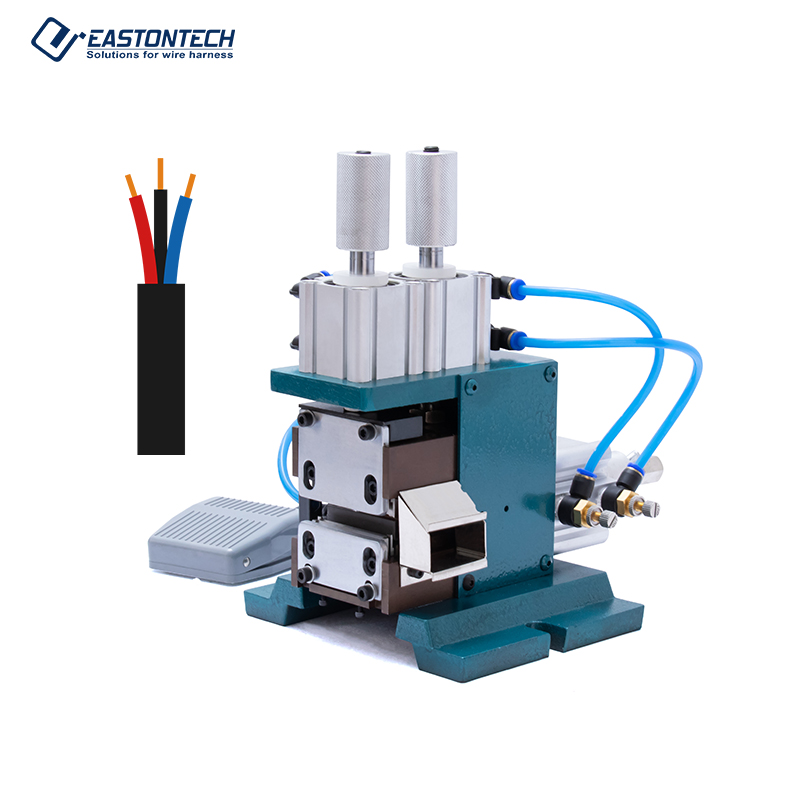

Feature
● Simultaneous Multi-Wire Stripping & Twisting (EW-10 3FN): Strips and tightly twists up to 1 to 6 wires simultaneously (AWG 16–22) in one fast pneumatic cycle, doubling processing efficiency.
● Dual Pneumatic Model Options: Choose the EW-10 3F for standard precision wire/core stripping or the EW-10 3FN for integrated stripping and wire strand twisting.
● Integrated Strand Twisting (5.0 to 25 mm Twist Length): Tightens loose copper wire strands immediately after stripping, preventing splaying and ensuring seamless insertion into crimp terminals or solder pads.
● High-Speed Pneumatic Output (Up to 120 cycles/min): Delivers rapid cycle times of 30 to 120 cycles per minute, dramatically outperforming manual wire strippers and hand twisters.
● Compact & Lightweight Benchtop Footprint: Weighing just 12 kg (3F) to 15 kg (3FN) with a compact chassis, it easily fits into any benchtop harness assembly station or cellular manufacturing cell.
● Universal Dual-Voltage Power Support: Compatible with universal AC 110V / 220V (50/60 Hz) electrical connections for seamless global deployment.
Application Range
● Multi-Core Sheathed Cable Processing: High-speed stripping and twisting of inner conductor leads after outer sheath removal.
● Wire Harness Assembly Prep: Preparing multi-wire groups for terminal crimping, soldering, or connector pin insertion.
● Home Appliance & Power Tool Wiring: High-volume strand tightening for power cords, switch leads, and motor jumper wires.
● Electronics & Automotive Control Wiring: Clean, non-frayed strand preparation for sensors, switchboards, and junction boxes.
