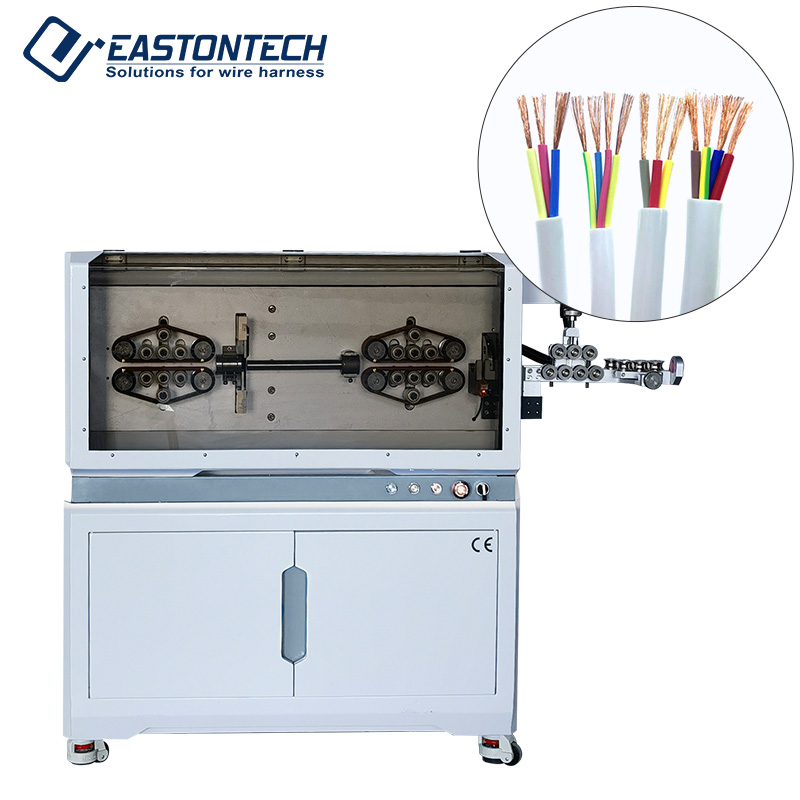

Feature
● 24-Roller Belt-Driven Traction (Zero-Scratch Guarantee): Replaces localized pinpoint pinching with an extended belt-over-roller traction assembly, distributing pulling force evenly over soft PVC, rubber, and silicone outer jackets without damage.
● Digital Programmable Roller Gap & Pressure Automation: All roller spacing and clamping forces are set digitally on the 7-inch HMI touchscreen. Stored recipes execute micro-adjustments automatically for fast changeovers.
● Layered Multi-Core Stripping Logic (EW-05H-1+ Model): Automatically strips the outer jacket and then independently strips 2 to 10 internal color-coded core wires in one seamless sequence, preserving core conductor integrity.
● Heavy-Duty Capacity (2.5–150 mm² / 33 mm Max OD): Handles massive single-core cables, sheathed multi-core trunks, and power lines with guide tube diameters up to 33 mm.
● High-Precision Servo Cutting & High-Speed Steel Blades: Driven by a 1.1 kW servo motor and imported high-speed steel blades, maintaining strict cutting length tolerances (< 0.002 × L) across lengths up to 999,999.9 mm.
Application Range
● EV & Renewable Energy High-Voltage Wiring: Heavy-duty processing of flexible battery power cables up to 150 mm².
● Industrial Control Cabinets & Power Distribution: Clean cutting and long-length stripping of multi-core control trunks (2 to 10 cores).
● Construction & Power Infrastructure Cables: Automated preparation of heavy PVC, rubber, and sheathed mains cables.
● Heavy Machinery & Automotive Harnesses: Precise processing of large-diameter engine, generator, and battery cables.
