Feature
● 16-Roller Belt Feeding with Zero-Mark Traction
The high-traction 16-roller belt feeding system transports cables smoothly while helping prevent scratches, deformation, or pressure marks on the cable jacket.
● Digital Roller Gap Control
Roller clearance and clamping pressure are adjusted directly through the 7-inch PLC touchscreen, eliminating manual handwheel adjustments during job changes.
● High-Speed Servo Cutting

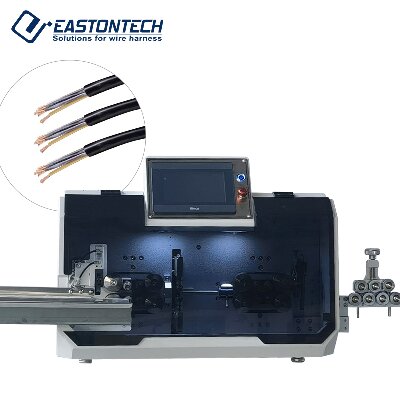

The servo-driven cutting system delivers cutting accuracy of ** The EW-05F+2 is a multi-conductor cable cutting and stripping machine designed for 0.75–30 mm² industrial cables. Its 16-roller servo drive, digital roller gap control, and 3,500 pcs/h productivity provide precise, damage-free processing for multi-core, sheathed, and industrial cable assemblies.
Application Range
The EW-05F+2 Multi-Conductor Cable Cutting & Stripping Machine is designed for manufacturers that require high-speed processing of multi-core, sheathed, and industrial cables with consistent stripping quality and flexible production capability.
● Wire Harness Manufacturing: Processes multi-core cables, sheathed wires, and control cables for automotive, electrical, and industrial wire harness production.
● Industrial Automation Equipment: Prepares PLC cables, machine wiring, and robotic control cables for automation equipment and production systems.
● Electrical Equipment Assembly: Cuts and strips power cables and control wires used in electrical cabinets, switchgear, and distribution equipment.
● Communication & Electronic Cable Production: Handles PVC cables, signal cables, and multi-core electronic cables requiring precise jacket and core stripping.
● OEM Cable Assembly: Supports customized cable processing with optional modules such as pre-feeders, window stripping units, twisting modules, coilers, and conveyor stackers for flexible production requirements.
