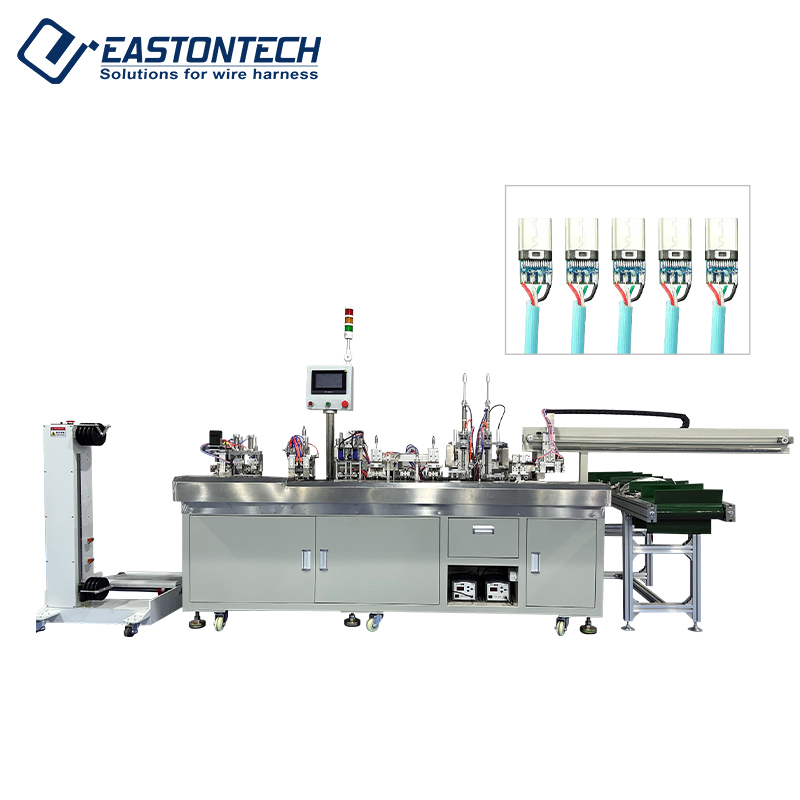

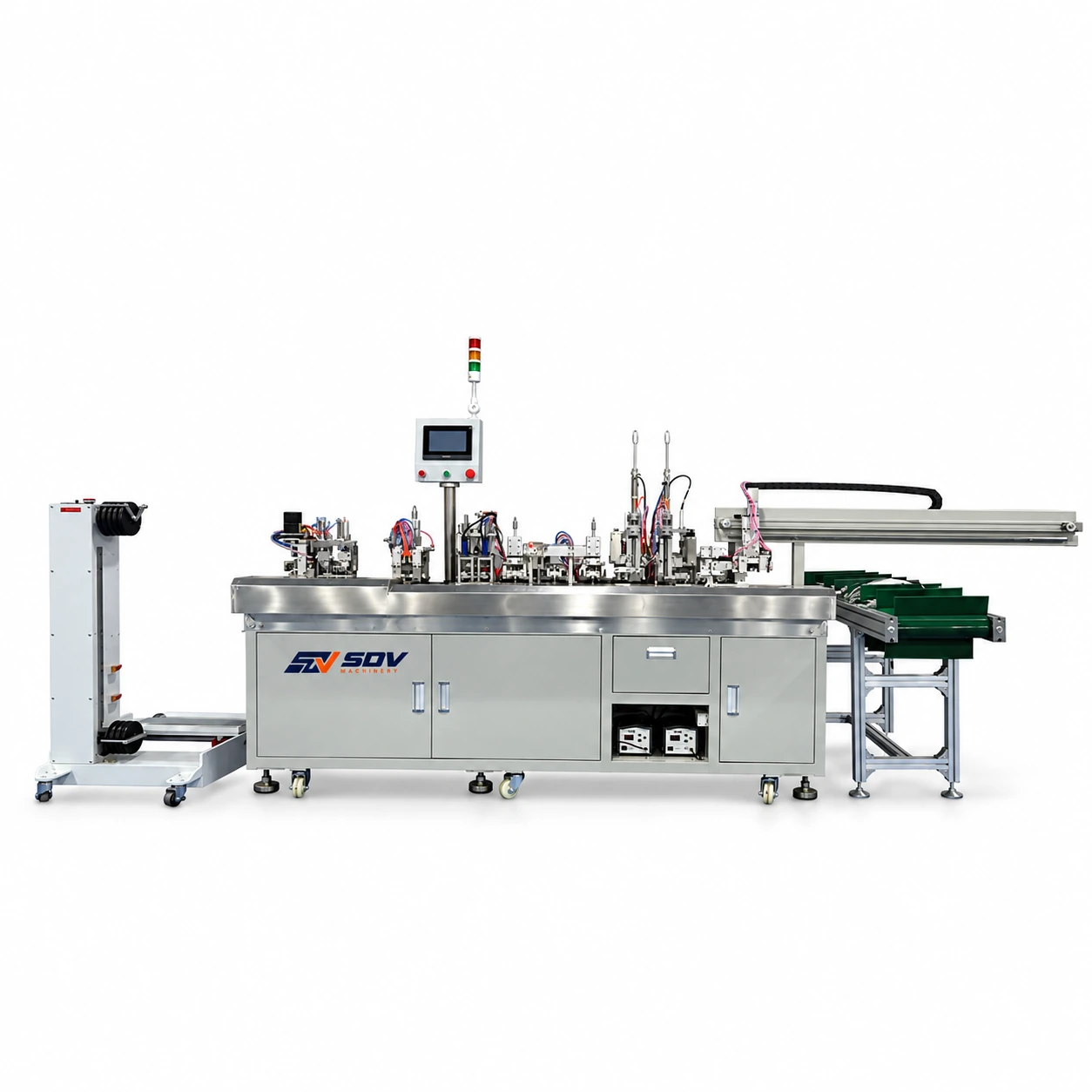

Feature
● End-to-End Automated USB Cable Soldering: Streamlines wire cutting (30–3,000 mm), jacket/core stripping, wire alignment, and high-precision USB connector pin soldering into a single continuous cycle.
● High Throughput Efficiency (1,300 pcs/h): Reaches high production speeds of up to 1,300 finished USB cable assemblies per hour (at 500 mm length), significantly reducing factory labor overhead.
● Ultra-Low Defect Rate (≤ 3‰): Digitally regulated time, pressure, power, and temperature keep the scrap rate below 0.3%, preventing pin short circuits and thermal insulation damage.
● Targeted 4-Core Cable Capability (ø 2.8 – ø 4.5 mm OD): Specially engineered to handle 4-core USB power and data lines with outer diameters from 2.8 mm to 4.5 mm.
● Digital Multi-Parameter Precision Control: Digitally adjustable soldering profile parameters guarantee repeatable thermal delivery and precise solder volume on every pin.
● Heavy-Duty Build with High-Grade Imported Components: Constructed with wear-resistant imported moving parts and a robust 750 kg chassis for vibration-free, long-life continuous operation.
Application Range
● USB Data & Charging Cable Assembly: Automated wire-to-plug soldering for USB-A, Micro-USB, Mini-USB, and 4-core Type-C cables.
● Consumer Electronics Harness Production: High-volume cable assembly for mobile phone chargers, smart home devices, and computer peripherals.
● Automotive USB Auxiliary Lines: Reliable, vibration-resistant 4-core USB interconnect cables for automotive infotainment systems.
● High-Volume OEM/ODM Cable Factories: Replacing manual hand-soldering benches with automated, low-defect automated workstations.
Feature ● Wire cutting, single (or double) end stripping, single (or double) end crimping, single end insertion of heat-shrink tub and heating, single end sleeve inserting machine ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Functions: Wire cutting, single/double-ended stripping, single/double/parallel-ended crimping, single/double/parallel heat-shrink tubing application. ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Equipped with high-precision servo motors for cutting and stripping mechanisms, the system delivers exceptional accuracy and consistency in wire processing operations. The positive and negative screw structure cutting blade ensures precise stripping results, while the robust ductile iron crimping mechanism provides stable crimping height and superior rigidity for reliable terminal connections. ● Featuring an intuitive color touchscreen interface with comprehensive program memory functions, the machine enables rapid product changeover through one-key parameter recall. The modular design allows individual function modules to be activated or deactivated as needed, maximizing production flexibility and equipment utilization across different product lines and manufacturing requirements.
Feature ● Maximum Rubber Sleeve Size: Diameter 30mm, Thickness 20mm, Square 30*30*20mm. ● Production Efficiency: Average 5 seconds/hole, slight differences may occur due to thread length and plastic shell positioning. ● Needle assembly changeover: 3 minutes; tube assembly changeover: 3 minutes; claw assembly changeover: 9 minutes. ● High production efficiency, saving 2-5 people and reducing manual labor intensity. ● High equipment compatibility; can achieve threading of various rubber sleeves through changeover, changeover time 15 minutes. ● High safety performance; multi-step, two-hand start-up. ● One-button switching between single and two rubber sleeve functions (customizable).
