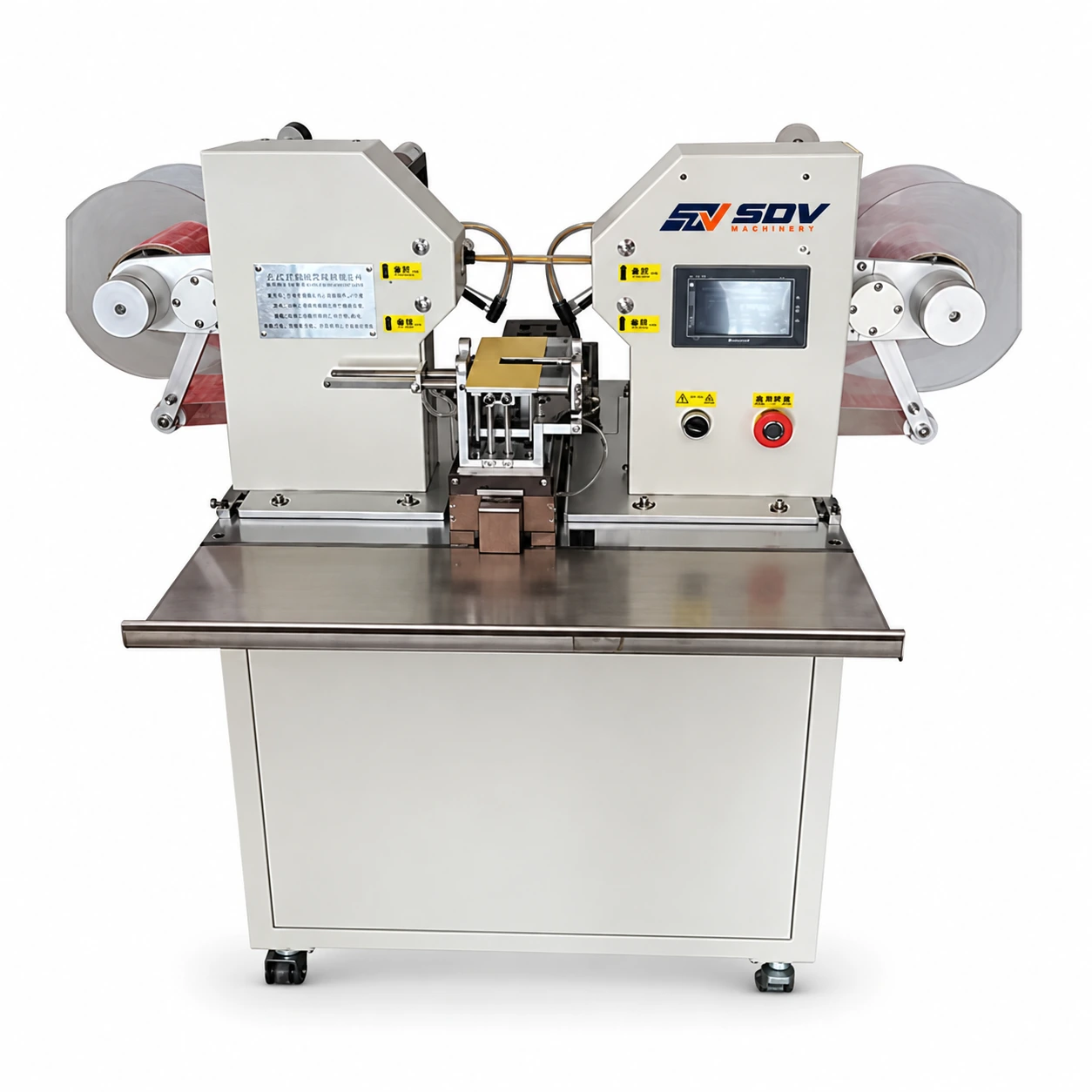

Feature
● Industry-Leading Placement Accuracy (±0.2 mm): Precision mechanical guides and optical alignment guarantee flush, perfectly matched flag-fold edges on every wire cycle.
● Expanded Label Length Range (20–160 mm): Handles short wire tags up to long wrap-around flag labels with widths ranging from 5 to 45 mm without tooling changes.
● High-Speed Output Throughput (Up to 1,800 pcs/h): Automates dispensing, wrapping, and folding, boosting hourly yield up to 1,800 pieces while eliminating operator fatigue.
● Heavy-Duty Industrial Construction (220 kg Chassis): Floor-standing industrial frame dampens operational vibration, ensuring multi-shift durability and continuous high-precision performance.
● Precision Electric Eye Optical Sensing: High-speed optical sensor instantly detects label gaps and backing edges, ensuring exact dispensing timing and eliminating misfeeds.
● Multi-Axis Fine-Tuning Calibration: Multi-degree freedom adjustments allow operators to quickly fine-tune height, angle, and position when changing wire specifications or label rolls.
Application Range
● Automotive Wire Harness Manufacturing: High-precision flag-labeling for ECU signal wires, sensor looms, and battery management leads.
● Telecom & Data Communication Cabling: Accurate flag tag application on Ethernet cables, coaxial leads, and fiber optic patch cords.
● Industrial Control Cabinets & Power Distribution: Fast circuit identification labeling for control panel wiring, relays, and terminal blocks.
● Consumer Electronics & Appliance Assemblies: High-volume automated labeling for power cords, internal ribbon cables, and wire looms.
Feature ● Wire cutting, single (or double) end stripping, single (or double) end crimping, single end insertion of heat-shrink tub and heating, single end sleeve inserting machine ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Functions: Wire cutting, single/double-ended stripping, single/double/parallel-ended crimping, single/double/parallel heat-shrink tubing application. ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Equipped with high-precision servo motors for cutting and stripping mechanisms, the system delivers exceptional accuracy and consistency in wire processing operations. The positive and negative screw structure cutting blade ensures precise stripping results, while the robust ductile iron crimping mechanism provides stable crimping height and superior rigidity for reliable terminal connections. ● Featuring an intuitive color touchscreen interface with comprehensive program memory functions, the machine enables rapid product changeover through one-key parameter recall. The modular design allows individual function modules to be activated or deactivated as needed, maximizing production flexibility and equipment utilization across different product lines and manufacturing requirements.
Feature ● Maximum Rubber Sleeve Size: Diameter 30mm, Thickness 20mm, Square 30*30*20mm. ● Production Efficiency: Average 5 seconds/hole, slight differences may occur due to thread length and plastic shell positioning. ● Needle assembly changeover: 3 minutes; tube assembly changeover: 3 minutes; claw assembly changeover: 9 minutes. ● High production efficiency, saving 2-5 people and reducing manual labor intensity. ● High equipment compatibility; can achieve threading of various rubber sleeves through changeover, changeover time 15 minutes. ● High safety performance; multi-step, two-hand start-up. ● One-button switching between single and two rubber sleeve functions (customizable).
