Feature
● Integrated Wire Cutting, Stripping, Tinning & Soldering

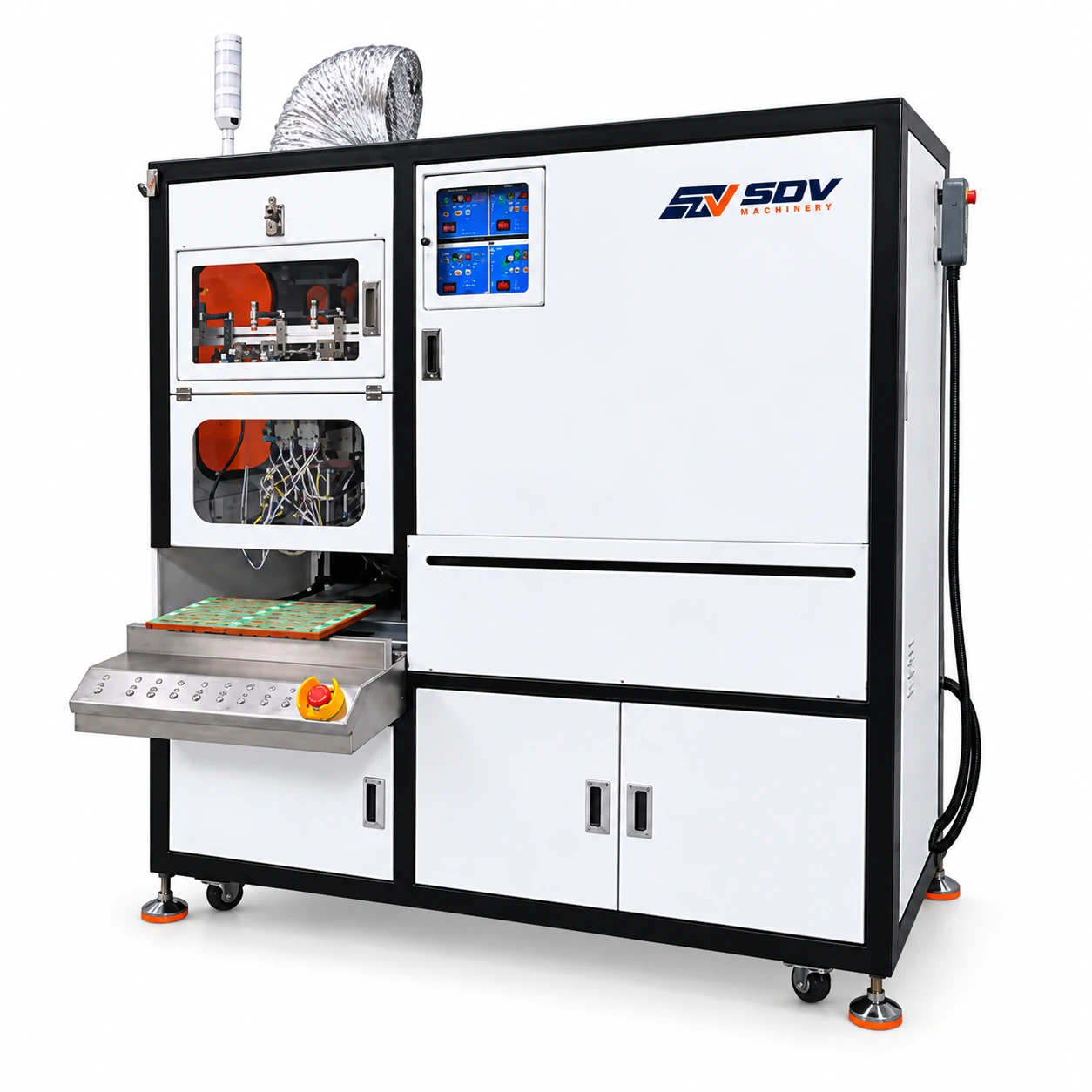

The EW-6235 combines automatic wire cutting, stripping, fluxing, tinning and soldering in one production process. This integrated configuration reduces the need for separate manual operations and simplifies wire harness processing.
● Precise Servo-Driven Positioning
The machine uses a microcontroller + PLC control system with servo transmission and ball-screw/closed-loop belt mechanisms. X/Y/Z repeat positioning accuracy reaches ±0.02mm, with 0.01mm resolution for precise positioning during wire processing and soldering.
● Flexible Wire Processing Range
The machine processes wires with an outer diameter of 0.2–3.5mm and supports a total wire cutting length of 20–300mm. Stripping length can be set from 1–5mm, with an optional 5–12mm stripping range and twisting function, while the tinning length is 1–12mm.
● Multi-Wire Feeding & Multi-Station Configuration
The EW-6235 supports 2–6 processing channels, depending on wire colors and production requirements. The Multi-Wire Payoff Rack provides organized multi-wire feeding, while the Four-Station Tape Unwinding Module and Four-Station Floating Pressing Module support synchronized multi-station processing.
● Programmable Processing & Adjustable Soldering Parameters
Up to 960 processing programs can be stored for different wire harness configurations. Soldering parameters such as temperature, heating time and tin-shaking settings can be adjusted according to the product requirements, helping maintain consistent solder joint quality.
Application Range
The EW-6235 is suitable for wire harness production where wire cutting, stripping, tinning and soldering need to be combined into a controlled automated process.
● Automotive Wire Harness Manufacturing: Suitable for automated processing of wires used in automotive harness assemblies and electrical connection systems.
● Electrical & Electronic Wiring: Designed for wires requiring consistent stripping, tinning and soldering before assembly or electrical connection.
● Industrial Equipment Wiring: Suitable for control wiring and internal wiring production where repeatable wire preparation and soldering are required.
● Consumer & Industrial Electronics: Can be used for small-diameter wires requiring precise stripping, tinning and soldering operations.
● Multi-Wire Harness Assembly: The optional 2–6 channel configuration and Multi-Wire Payoff Rack make the machine suitable for processing multiple wires in a coordinated production setup.
● Customized Wire Harness Production: With up to 960 stored programs and adjustable processing parameters, the machine can accommodate different wire lengths, stripping lengths and soldering requirements.
Feature ● Wire cutting, single (or double) end stripping, single (or double) end crimping, single end insertion of heat-shrink tub and heating, single end sleeve inserting machine ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Functions: Wire cutting, single/double-ended stripping, single/double/parallel-ended crimping, single/double/parallel heat-shrink tubing application. ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Equipped with high-precision servo motors for cutting and stripping mechanisms, the system delivers exceptional accuracy and consistency in wire processing operations. The positive and negative screw structure cutting blade ensures precise stripping results, while the robust ductile iron crimping mechanism provides stable crimping height and superior rigidity for reliable terminal connections. ● Featuring an intuitive color touchscreen interface with comprehensive program memory functions, the machine enables rapid product changeover through one-key parameter recall. The modular design allows individual function modules to be activated or deactivated as needed, maximizing production flexibility and equipment utilization across different product lines and manufacturing requirements.
Feature ● Maximum Rubber Sleeve Size: Diameter 30mm, Thickness 20mm, Square 30*30*20mm. ● Production Efficiency: Average 5 seconds/hole, slight differences may occur due to thread length and plastic shell positioning. ● Needle assembly changeover: 3 minutes; tube assembly changeover: 3 minutes; claw assembly changeover: 9 minutes. ● High production efficiency, saving 2-5 people and reducing manual labor intensity. ● High equipment compatibility; can achieve threading of various rubber sleeves through changeover, changeover time 15 minutes. ● High safety performance; multi-step, two-hand start-up. ● One-button switching between single and two rubber sleeve functions (customizable).
