Feature
● Dual-End Crimping with Single-End Heat Shrink

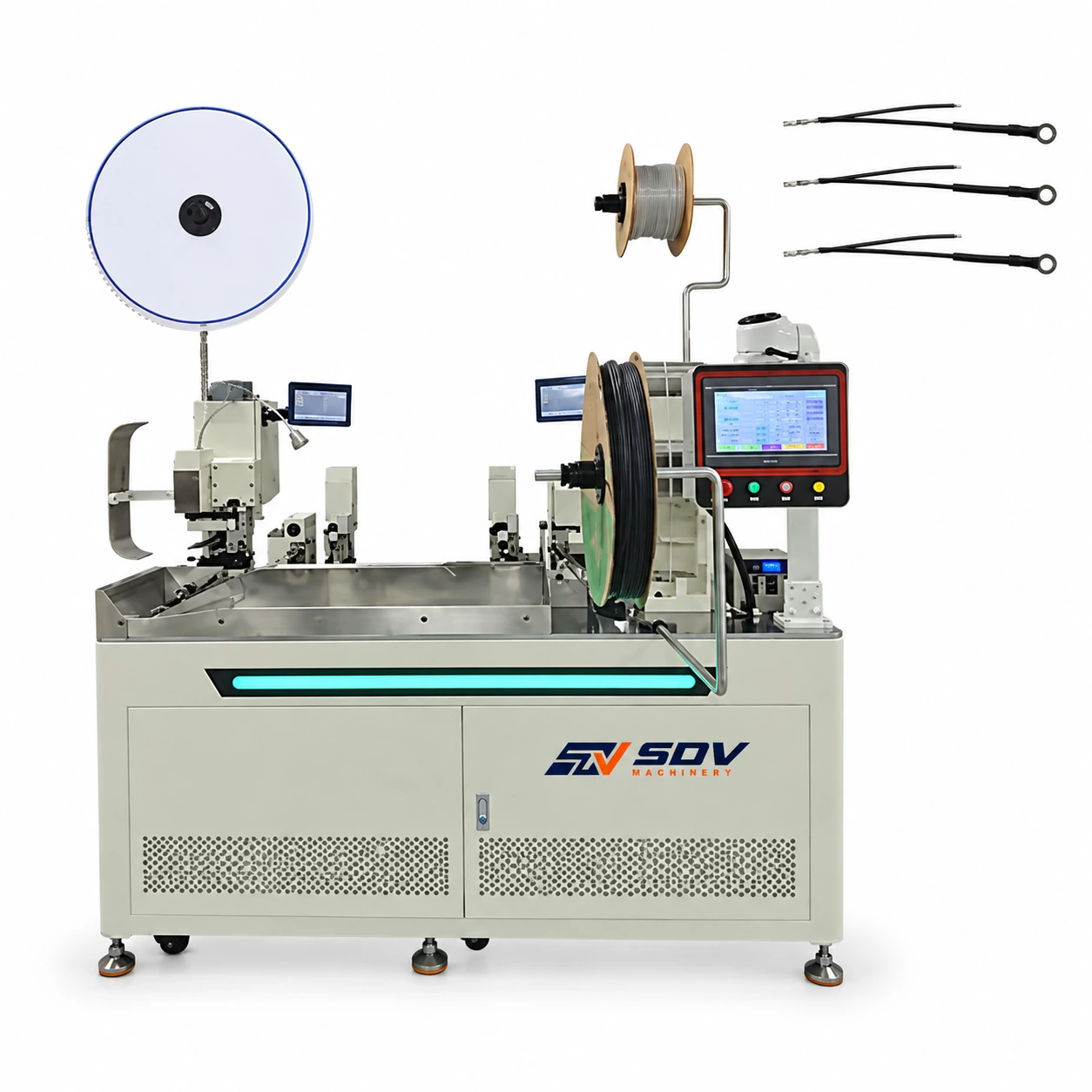

The EW-9380 combines wire cutting, stripping, dual-end terminal crimping, and single-end heat shrink processing in one automated workflow, reducing manual handling and improving production consistency.
● Four-Wheel Synchronized Wire Feeding
The integrated four-wheel synchronized feeder maintains stable wire tension during processing, helping improve feeding accuracy and crimping consistency.
● Motion Control with Bilingual Touchscreen
The motion control system and Chinese/English touchscreen simplify parameter adjustment, shorten setup time, and make product changeovers more efficient.
● Intelligent Quality Detection
The machine continuously monitors low air pressure, wire presence, crimping errors, and wire feeding, helping reduce production defects before finished harnesses leave the machine.
● Precision Blade Adjustment
The cutting blade supports 0.01mm adjustment resolution with a maximum adjustment depth of 5.50mm, allowing precise processing across different wire specifications.
Application Range
The EW-9380 is designed for manufacturers producing wire harnesses that require dual-end terminal crimping with single-end heat shrink protection in a fully automated workflow.
● Automotive Wire Harness Manufacturing: Ideal for lighting harnesses, sensor cables, and body wiring that require heat shrink protection on one terminal end while maintaining standard crimping on the opposite end.
● New Energy Vehicle Wiring: Suitable for battery management systems, charging harnesses, and power distribution cables where selected terminal connections require additional insulation and strain relief.
● Industrial Control Panel Wiring: Processes control cables and equipment wiring that combine dual-end terminal crimping with localized heat shrink insulation for improved durability.
● Electrical Equipment Assembly: Supports automated production of internal wiring for industrial machinery, electrical cabinets, and electronic equipment requiring consistent terminal quality.
● OEM & Tier-1 Wire Harness Production: Designed for high-volume manufacturing where programmable processing, fast product changeovers, and integrated quality inspection help improve production efficiency.
