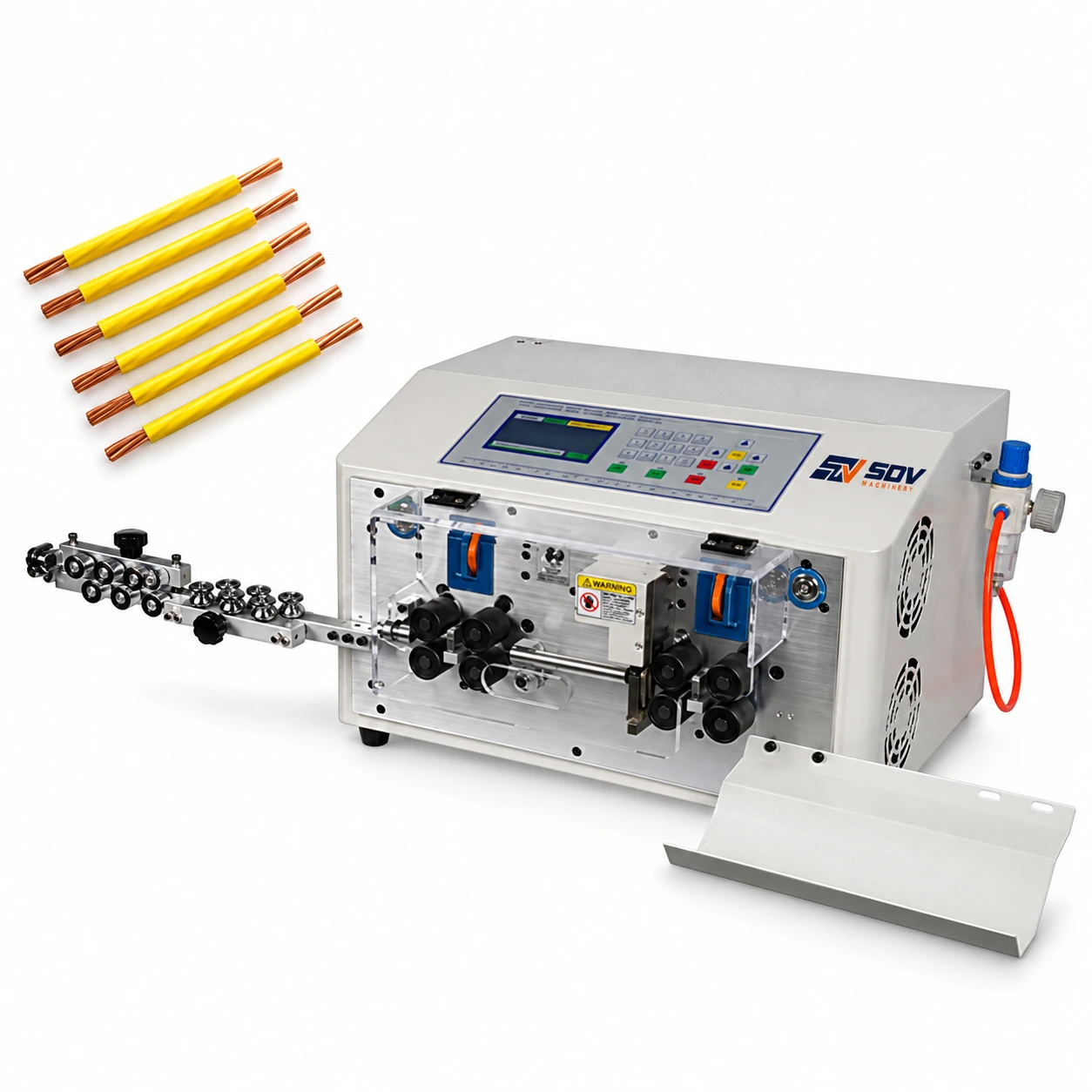

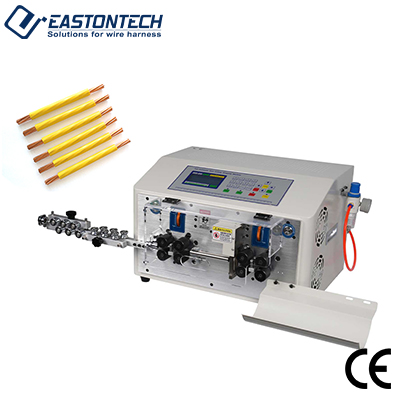

Feature
● Wide Wire Range & Conduit Capacity (0.3–25 mm² / 13 mm OD): Effortlessly processes fine to heavy-duty single-core wires and multi-strand copper cables up to 13 mm outer conduit diameter.
● High Speed & Precision (Up to 133 pcs/min): Delivers rapid processing speeds from 83 to 133 pieces per minute (at 100 mm length) with tight cutting repeatability of ±(0.002 × L) mm.
● Extended & Multi-Stage Stripping (100 mm Strip & 13 Window Cuts): Supports long stripping lengths up to 100 mm on both front and rear ends, plus up to 13 intermediate window stripping locations for complex wiring.
● Multi-Material Compatibility & Peripheral Ready: Cleanly strips PVC, high-temp Teflon, braided, and fiberglass wires while offering plug-and-play connectivity for external wire feeders and stackers.
Application Range
● Automotive & EV Wire Harness Assembly: High-volume cutting and stripping for heavy power distribution cables, battery jumpers, and sensor lines.
● Industrial Control Cabinets & Switchgear: Precision preparation of PVC and Teflon wires for panel building, relays, and terminal block wiring.
● High-Temperature & Special Appliance Wiring: Clean insulation stripping on tough fiberglass and braided heat-resistant heating element leads.
● Custom Electronics Contracting (EMS): Fast cut-and-strip output for power supply leads, jumper cables, and multi-breakout wiring assemblies.
Feature ● Wire cutting, single (or double) end stripping, single (or double) end crimping, single end insertion of heat-shrink tub and heating, single end sleeve inserting machine ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Functions: Wire cutting, single/double-ended stripping, single/double/parallel-ended crimping, single/double/parallel heat-shrink tubing application. ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Equipped with high-precision servo motors for cutting and stripping mechanisms, the system delivers exceptional accuracy and consistency in wire processing operations. The positive and negative screw structure cutting blade ensures precise stripping results, while the robust ductile iron crimping mechanism provides stable crimping height and superior rigidity for reliable terminal connections. ● Featuring an intuitive color touchscreen interface with comprehensive program memory functions, the machine enables rapid product changeover through one-key parameter recall. The modular design allows individual function modules to be activated or deactivated as needed, maximizing production flexibility and equipment utilization across different product lines and manufacturing requirements.
Feature ● Maximum Rubber Sleeve Size: Diameter 30mm, Thickness 20mm, Square 30*30*20mm. ● Production Efficiency: Average 5 seconds/hole, slight differences may occur due to thread length and plastic shell positioning. ● Needle assembly changeover: 3 minutes; tube assembly changeover: 3 minutes; claw assembly changeover: 9 minutes. ● High production efficiency, saving 2-5 people and reducing manual labor intensity. ● High equipment compatibility; can achieve threading of various rubber sleeves through changeover, changeover time 15 minutes. ● High safety performance; multi-step, two-hand start-up. ● One-button switching between single and two rubber sleeve functions (customizable).
