Feature

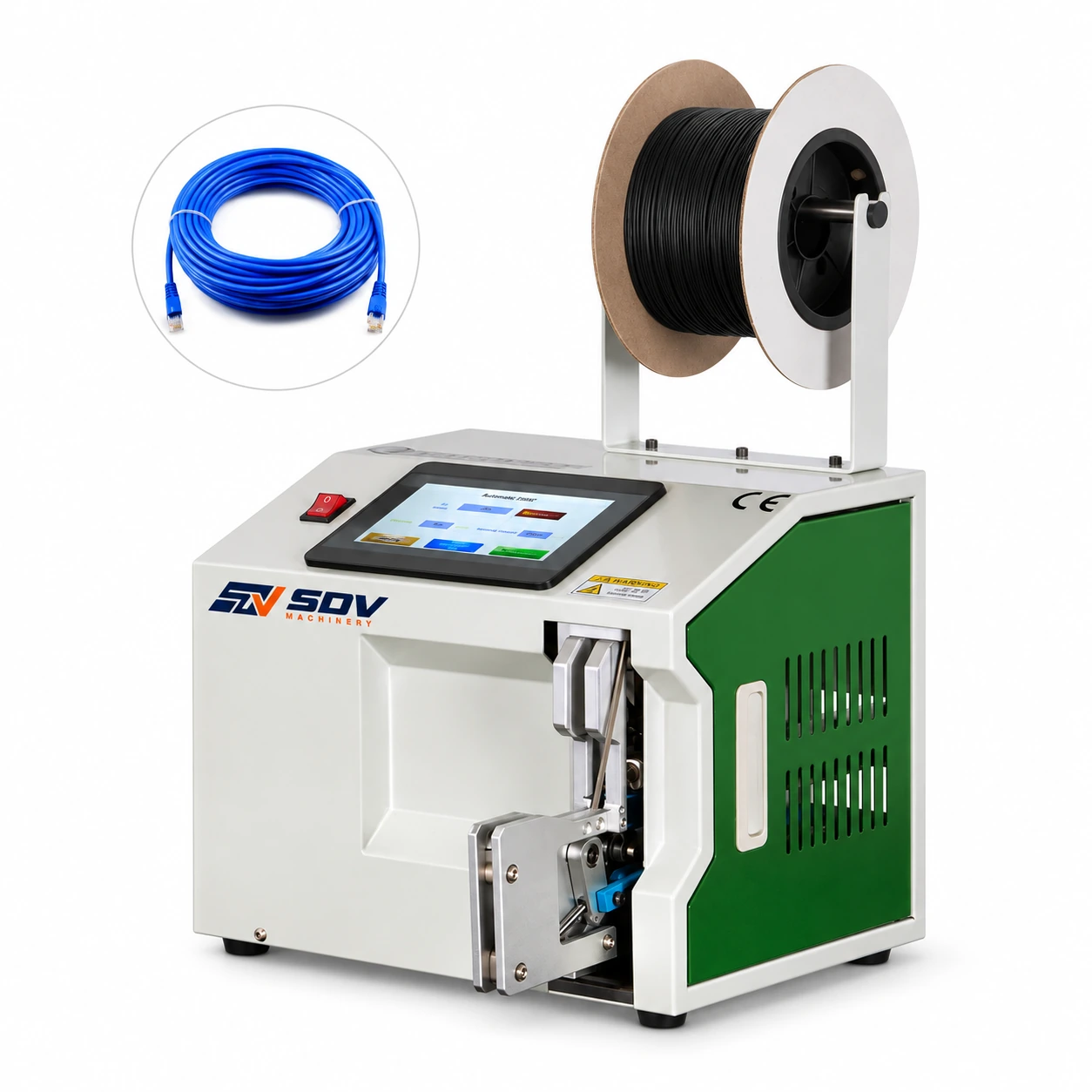

● Ultra-Fast 0.7-Second Tying Cycle: Binds wire harness bundles in just 0.7 seconds per cycle, dramatically increasing output over manual tying.
● Adjustable End-Twist Retention: Customizes the number of wire twists for higher mechanical holding strength or reduced wire consumption per tie.
● 5,000–8,000 Ties Per Spool Economics: High-yield 200 mm wire spools significantly cut consumable costs compared to nylon zip ties or pre-cut twist ties.
● Japanese NSK Linear Guide Precision: Industrial-grade rail positioning ensures smooth movement, zero positional drift, and reliable long-term durability.
Application Range
● Automotive Wire Harness Production: High-speed spot-binding and branch tying of engine, door, and sensor wiring trees.
● Home Appliance Cable Looms: Fast grouping of AC power cords, internal jumper cables, and control panel harnesses.
● Telecommunications & Data Cabling: Neat binding of network patch cords, fiber optic leads, and telecom cable bundles.
● Industrial Hoses & Conduits: Secure twist-tying for flexible plastic tubing, corrugated conduits, and extruded profiles up to 80 mm OD.
Feature ● Wire cutting, single (or double) end stripping, single (or double) end crimping, single end insertion of heat-shrink tub and heating, single end sleeve inserting machine ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Functions: Wire cutting, single/double-ended stripping, single/double/parallel-ended crimping, single/double/parallel heat-shrink tubing application. ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Equipped with high-precision servo motors for cutting and stripping mechanisms, the system delivers exceptional accuracy and consistency in wire processing operations. The positive and negative screw structure cutting blade ensures precise stripping results, while the robust ductile iron crimping mechanism provides stable crimping height and superior rigidity for reliable terminal connections. ● Featuring an intuitive color touchscreen interface with comprehensive program memory functions, the machine enables rapid product changeover through one-key parameter recall. The modular design allows individual function modules to be activated or deactivated as needed, maximizing production flexibility and equipment utilization across different product lines and manufacturing requirements.
Feature ● Maximum Rubber Sleeve Size: Diameter 30mm, Thickness 20mm, Square 30*30*20mm. ● Production Efficiency: Average 5 seconds/hole, slight differences may occur due to thread length and plastic shell positioning. ● Needle assembly changeover: 3 minutes; tube assembly changeover: 3 minutes; claw assembly changeover: 9 minutes. ● High production efficiency, saving 2-5 people and reducing manual labor intensity. ● High equipment compatibility; can achieve threading of various rubber sleeves through changeover, changeover time 15 minutes. ● High safety performance; multi-step, two-hand start-up. ● One-button switching between single and two rubber sleeve functions (customizable).
