Feature

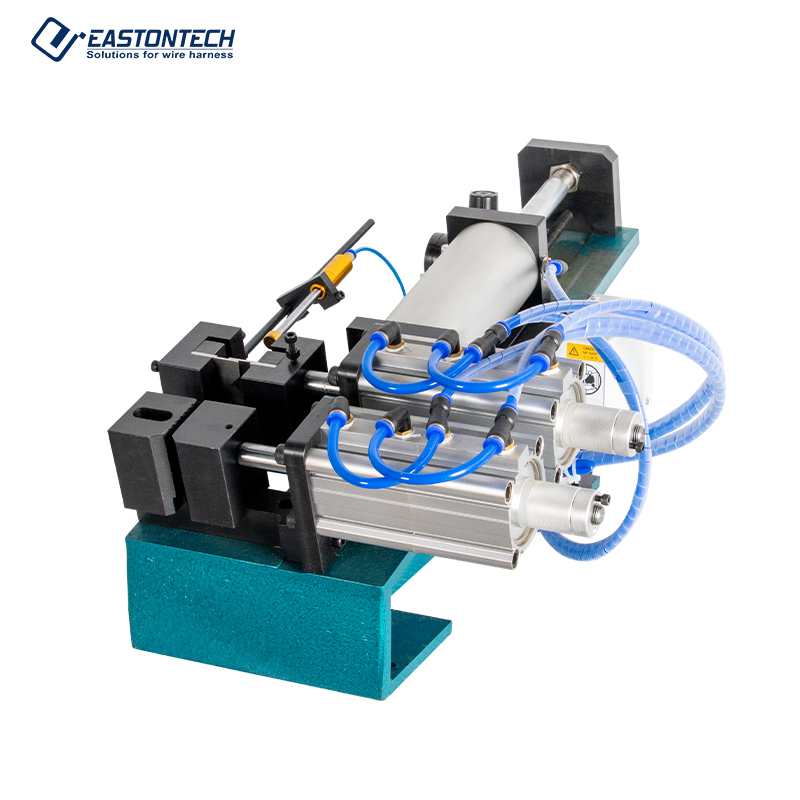

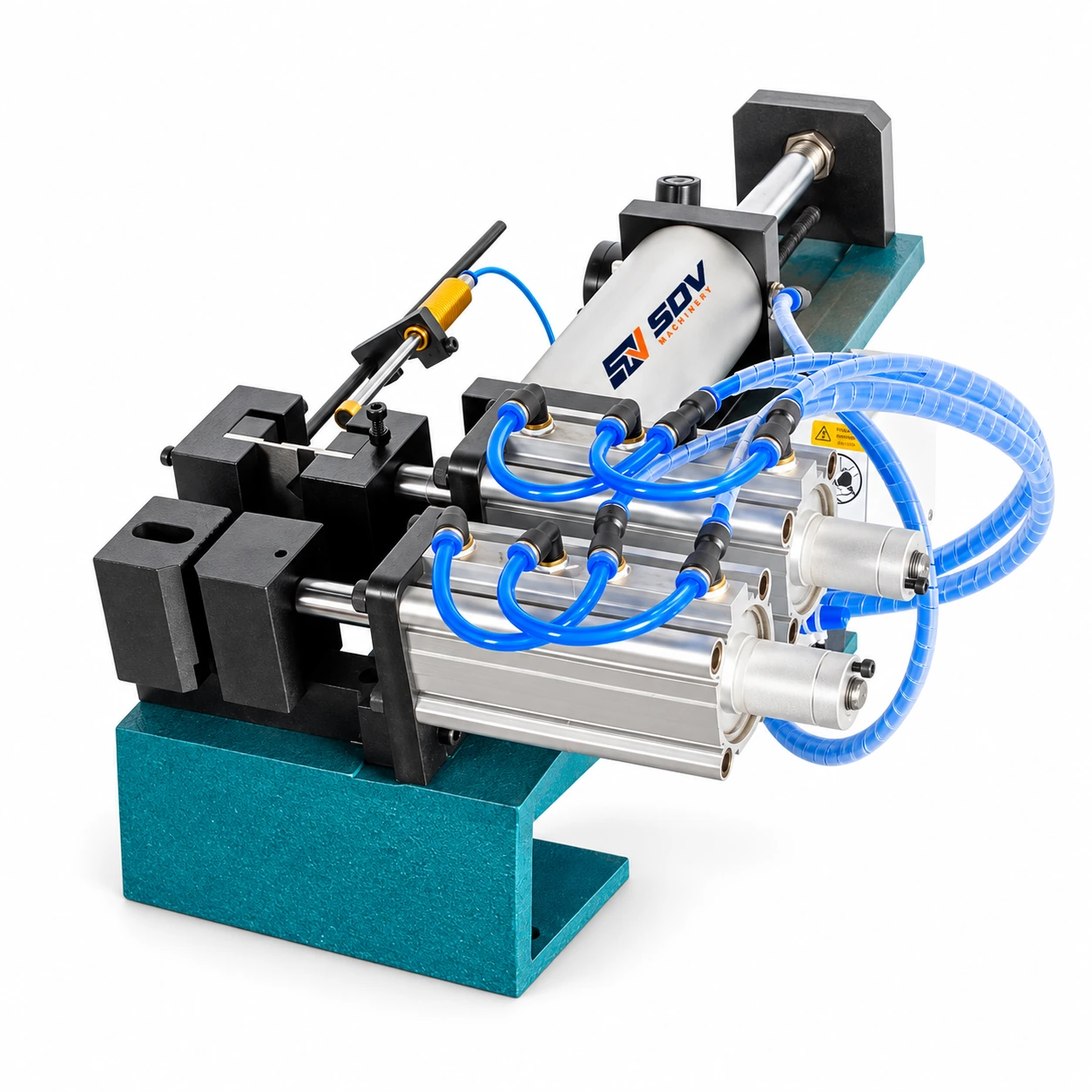

● Dual-Driving Cylinder Design (No Spring Breakage): Heavy-duty dual-pneumatic cylinders deliver continuous 165 to 300 kg peeling force, eliminating mechanical spring fatigue and spring failure.
● Large Diameter & Extended Strip Capacity (0–28 mm OD / 150 mm Length): Easily processes thick AC/DC power cables, multi-core computer wiring, and heavy electronic leads with stripping lengths up to 150 mm.
● Self-Feeding Automatic Cylinder Lubrication: Timely inline oil delivery protects interior cylinder walls from friction and wear, dramatically extending machine service life.
● Ergonomic Bevel Chassis Architecture: Tilted front interface reduces operator wrist fatigue, improves posture, and enhances visibility during manual feeding.
● Specialized Sliding Holder & High Peeling Precision: Precision sliding rail design maintains stroke balance, preventing blade offset and ensuring clean, square insulation cuts without strand scoring.
● Universal Dual-Voltage Support: Plug-and-play compatibility with AC 110V / 220V (50/60 Hz) electrical standards and standard 3–7 kg/cm² pneumatic supply.
Application Range
● AC/DC Power Supply & Extension Cords: High-efficiency jacket and conductor stripping for residential and industrial power cords.
● Computer & Peripheral Cable Assemblies: Precision stripping for multi-core computer leads, shielded communication lines, and interface cables.
● Heavy Electronic Wiring & Industrial Harnesses: Clean stripping for thick single-core cables and multi-conductor looms up to 28 mm OD.
● Automotive & Control Box Cables: High-output stripping for automotive battery lines, grounding wires, and industrial control panel leads.
