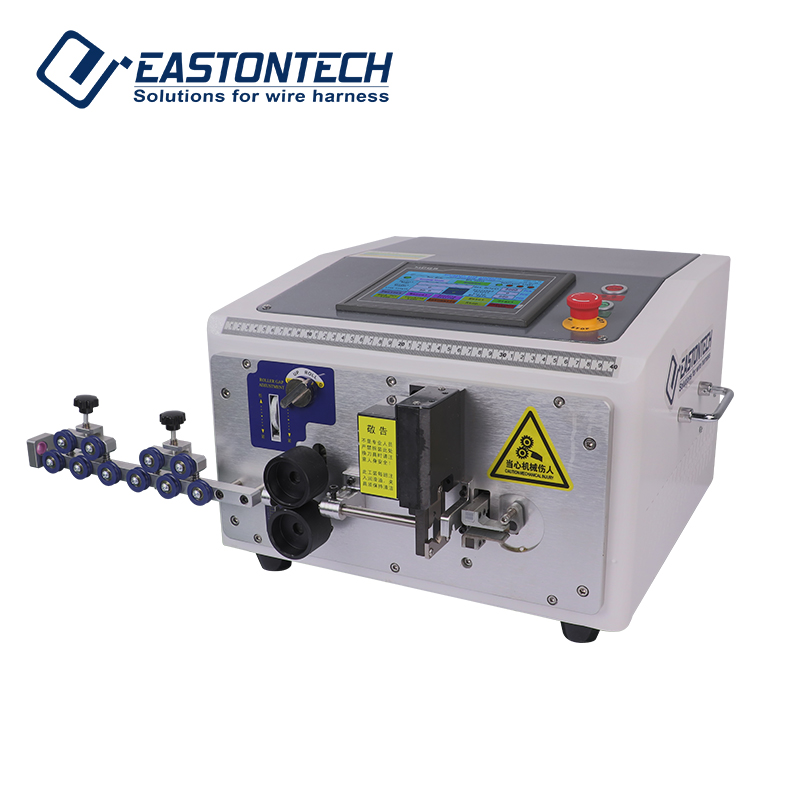

Feature
● 3-in-1 Automated Processing (Cut, Strip & 2D Bend): Executes wire cutting, double-ended stripping (0.1–50 mm), and multi-angle 2D plane bending in a continuous, single-operator cycle.
● Multi-Section 0–150° Bending (Up to 10 Bends): Program up to 10 distinct bending steps per wire with precise angle control ranging from 0° to 150°.
● Interference-Free Bending Architecture: Bending mechanism positioned farther from the cutting head provides ample clearance for complex wire geometries without frame collisions.
● 200 Program Memory & High Output (1,500 pcs/h): Onboard microcomputer controller stores up to 200 job profiles for instant recall at processing speeds of 800 to 1,500 pcs/hour.
● Compact & Ultra-Quiet (<70 dBA): Lightweight 35 kg desktop footprint with silent 350W electric operation (<70 dBA), requiring no compressed air supply.
Application Range
● Electrical Control Cabinet & Switchgear Wiring: Fast, automated production of pre-bent BV copper jumpers for terminal blocks, relays, and circuit breakers.
● Building Electrical & Junction Boxes: High-speed cutting, stripping, and multi-bend forming for 1–6 mm² solid-core building wiring.
● Industrial Appliance & Power Distribution: Uniform, repeatable production of bent connection leads for HVAC equipment, transformers, and industrial power supplies.
● Motor & Generator Jumpers: Precise 2D multi-angle wire forming for heavy electrical coils and junction box jumpers.
