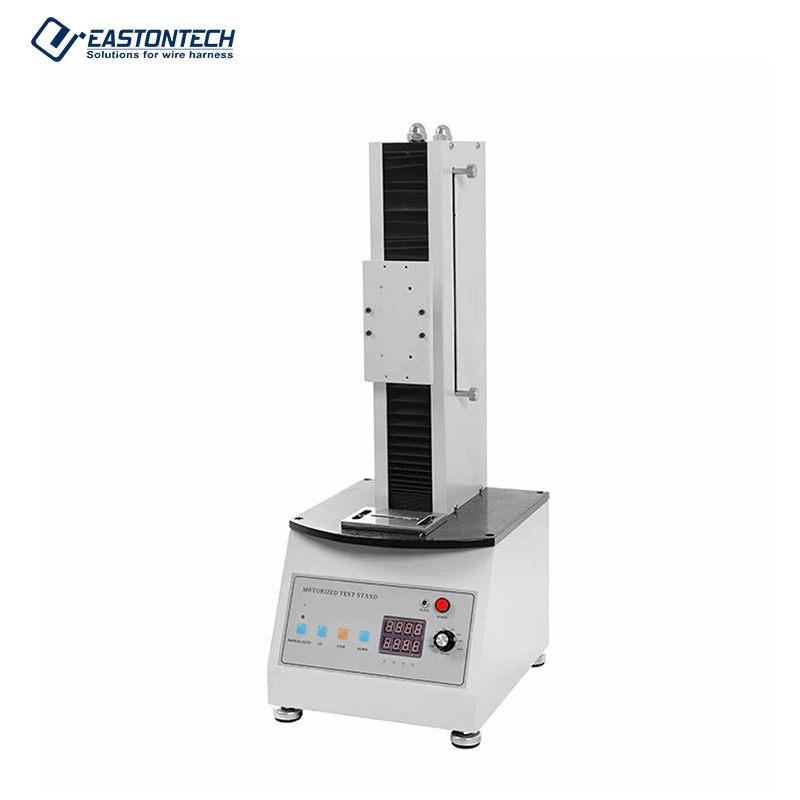

Feature
● Double Vertical Rod Guide Structure: Heavy-duty dual-rod guidance prevents side wobble and deflection, ensuring pure axial force application during pull and destruction tests.
● Stepless Speed Regulation (25–280 mm/min): Smooth, continuous motor speed adjustment allows precise calibration according to specific material test standards.
● HF & NK Series Force Gauge Compatibility: Designed to mount standard digital (HF) or dial (NK) force gauges, offering flexible measurement options and quick gauge swapping.
● Manual & Automatic Dual Control Modes: Switch effortlessly between manual inching (jogging) for fixture setup and automatic cycling for batch production quality checks.
● Versatile Travel & Load Customization: Available in 500 N and 1,000 N load capacities with customizable effective strokes (200 mm, 400 mm, or 700 mm) to fit varied specimen sizes.
Application Range
● Wire Harness & Cable Terminals: Measuring terminal retention force, wire crimp pull-off strength, and joint destruction limits under production QA standards.
● Connectors & Electrical Switches: Conducting precise insertion and withdrawal force testing for multi-pin plugs and micro-switches.
● Rubber, Plastics & Composite Materials: Performing tensile elongation, tearing, and peel strength evaluation on raw materials and molded parts.
● Automotive Parts & Light Industry QA: Testing mechanical fasteners, textiles, door and window hardware, and small spring/assembly components.
Feature ● Wire cutting, single (or double) end stripping, single (or double) end crimping, single end insertion of heat-shrink tub and heating, single end sleeve inserting machine ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Functions: Wire cutting, single/double-ended stripping, single/double/parallel-ended crimping, single/double/parallel heat-shrink tubing application. ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Equipped with high-precision servo motors for cutting and stripping mechanisms, the system delivers exceptional accuracy and consistency in wire processing operations. The positive and negative screw structure cutting blade ensures precise stripping results, while the robust ductile iron crimping mechanism provides stable crimping height and superior rigidity for reliable terminal connections. ● Featuring an intuitive color touchscreen interface with comprehensive program memory functions, the machine enables rapid product changeover through one-key parameter recall. The modular design allows individual function modules to be activated or deactivated as needed, maximizing production flexibility and equipment utilization across different product lines and manufacturing requirements.
Feature ● Maximum Rubber Sleeve Size: Diameter 30mm, Thickness 20mm, Square 30*30*20mm. ● Production Efficiency: Average 5 seconds/hole, slight differences may occur due to thread length and plastic shell positioning. ● Needle assembly changeover: 3 minutes; tube assembly changeover: 3 minutes; claw assembly changeover: 9 minutes. ● High production efficiency, saving 2-5 people and reducing manual labor intensity. ● High equipment compatibility; can achieve threading of various rubber sleeves through changeover, changeover time 15 minutes. ● High safety performance; multi-step, two-hand start-up. ● One-button switching between single and two rubber sleeve functions (customizable).
