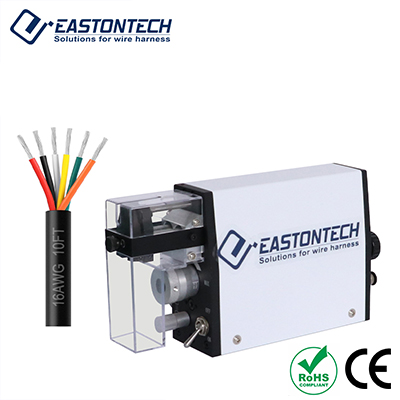

Feature
● 0.3-Second Blazing-Fast Cycle Time: Executes pneumatic clamping, blade scoring, insulation pulling, and blade retracting in a fraction of a second, maximizing line worker productivity.
● Zero-Swap Universal AWG 32-14 Jaws: The smart self-centering blade geometry covers the entire micro-wire spectrum without manual blade changes. Technicians simply dial the micrometer ring to match the wire gauge.
● Constant Regulated Pneumatic Force: Unlike hand tools where muscle fatigue leads to inconsistent stripping, the air-driven stroke applies perfectly uniform force every shift to fully eliminate conductor nicking.
● Zero-Power Grid Independence: Runs purely on standard workshop compressed air with no electrical outlets required. Safe for use in hazardous, high-static, or field-service repair environments.
● Ultra-Compact 2.0 KG Mobile Build: Designed with a slim, featherlight chassis that fits comfortably in hand, on a desktop stand, or directly on a heavy-wire harness layout pegboard.
Application Range
● Aerospace & Defense Wire Looms: Perfect for stripping high-spec Teflon or Kapton insulated signal wires where wire-nick audits are extremely strict.
● Medical Electronics Components: Prepares ultra-thin, high-density sensor wiring for pacemakers, monitors, and robotic surgical arms.
● On-Site Re-work & Retrofitting: Provides high-mobility stripping directly on automotive assembly boards or inside electrical cabinet enclosures.
Feature ● Wire cutting, single (or double) end stripping, single (or double) end crimping, single end insertion of heat-shrink tub and heating, single end sleeve inserting machine ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Functions: Wire cutting, single/double-ended stripping, single/double/parallel-ended crimping, single/double/parallel heat-shrink tubing application. ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Equipped with high-precision servo motors for cutting and stripping mechanisms, the system delivers exceptional accuracy and consistency in wire processing operations. The positive and negative screw structure cutting blade ensures precise stripping results, while the robust ductile iron crimping mechanism provides stable crimping height and superior rigidity for reliable terminal connections. ● Featuring an intuitive color touchscreen interface with comprehensive program memory functions, the machine enables rapid product changeover through one-key parameter recall. The modular design allows individual function modules to be activated or deactivated as needed, maximizing production flexibility and equipment utilization across different product lines and manufacturing requirements.
Feature ● Maximum Rubber Sleeve Size: Diameter 30mm, Thickness 20mm, Square 30*30*20mm. ● Production Efficiency: Average 5 seconds/hole, slight differences may occur due to thread length and plastic shell positioning. ● Needle assembly changeover: 3 minutes; tube assembly changeover: 3 minutes; claw assembly changeover: 9 minutes. ● High production efficiency, saving 2-5 people and reducing manual labor intensity. ● High equipment compatibility; can achieve threading of various rubber sleeves through changeover, changeover time 15 minutes. ● High safety performance; multi-step, two-hand start-up. ● One-button switching between single and two rubber sleeve functions (customizable).
