Feature

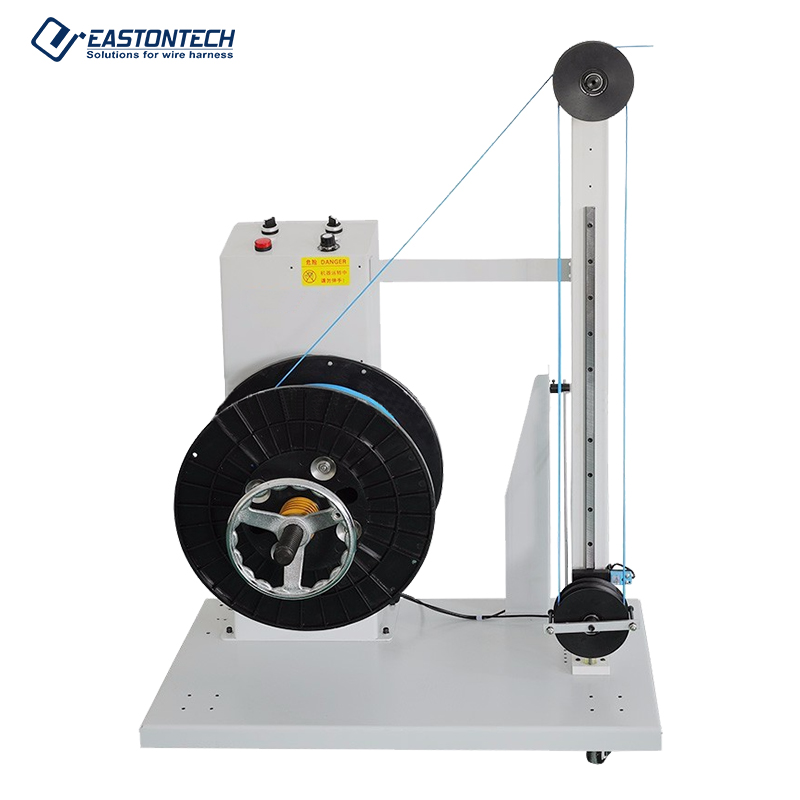

● 3.2 Meter Wire Accumulation Buffer: Absorbs speed mismatches between constant reel rotation and the intermittent pulling action of cutting/stripping machines, eliminating tension spikes and preventing ±2–5 mm feed-length errors.
● VFD Speed Control & Motorized Brake: A Variable Frequency Drive dynamically adjusts reel speed based on dancer arm position, while a motorized brake instantly arrests reel rotation when downstream demand stops to prevent wire overfeed and tangling.
● 100% Autonomous Standalone Operation: Operates independently without needing electrical signals, custom wiring, or software protocol integration with the host machine—just plug into a standard AC outlet.
● Heavy-Duty 50 kg Drum Capacity: Sturdy motorized pay-off stand accommodates cable reels up to 500 mm outer diameter, 300 mm width, and 50 kg weight.
● Universal Drum Core Adaptability: Supports standard spool arbor IDs from 120 mm to 300 mm (customizable up to 400 mm) with easy-loading clamping mechanisms.
● Universal Compatibility: Works seamlessly alongside any brand or model of automatic wire cutting, stripping, or crimping machine on the market.
Application Range
● Automotive Wire Harness Production: Zero-tension feeding of single-core automotive wire spools feeding into high-speed cut-and-strip processing lines.
● Control Cabinet & Appliance Wiring: Prefeeding fine-to-medium wire rolls up to 6.0 mm OD to protect delicate insulation from stretch deformation.
● Universal Line Upgrades: Retronics retrofitting for existing cutting or crimping equipment lacking prefeeder control interfaces.
