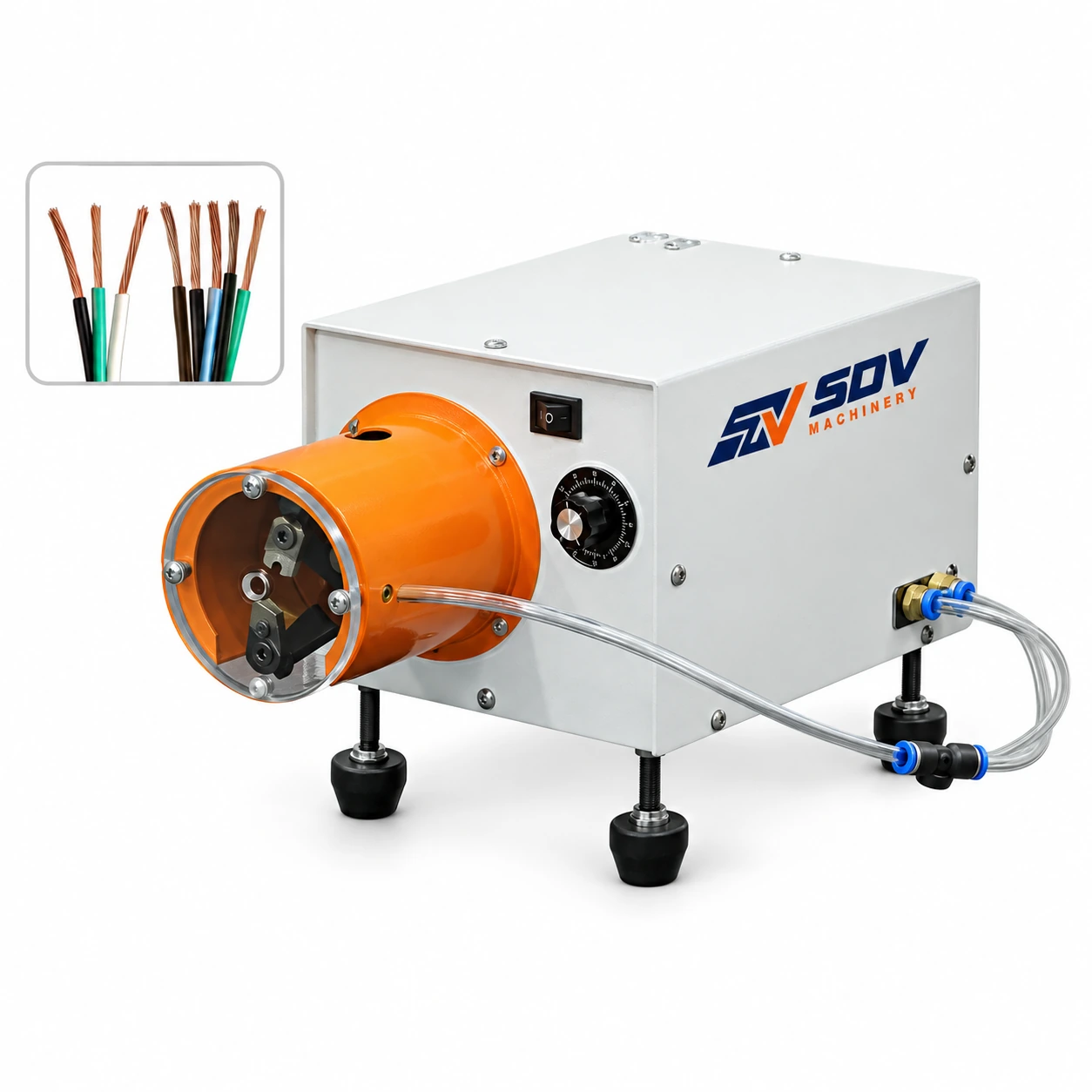

Feature
● Universal Single-Blade Operation (AWG 26–10): Advanced single-blade blade set processes the entire wire gauge range (AWG 26 to AWG 10) without mid-job blade changes or complex tool adjustments.
● Simultaneous Stripping & Tight Strand Twisting: Strips outer insulation and tightly twists internal copper strands in one fluid pull-out motion, completely eliminating loose strands and wire "whiskers."
● Ultra-Fast 0.5–2 Second Cycle Time: Rapid processing speed of 0.5 to 2 seconds per wire dramatically reduces cycle times compared to manual hand-stripping and hand-twisting.
● Ergonomic Foot-Pedal Pneumatic Operation: Electric foot switch control reduces operator hand fatigue, allowing smooth, continuous operation over full production shifts.
● Wide Adjustable Length Range (3–45 mm): Precise control over stripping and twisting lengths from 3 mm up to 45 mm caters to a wide variety of connector, soldering, and terminal preparation specs.
● Ultra-Compact Desktop Architecture (12 kg): Measuring only 320 × 180 × 170 mm and weighing just 12 kg, the lightweight benchtop unit easily fits onto congested assembly benches and field repair stations.
Application Range
● Automotive Wire Harness Sub-Assemblies: Precision stripping and strand twisting for internal automotive lighting, sensor leads, and switch connectors.
● Electronics & Appliance Assembly: High-speed wire end prep for PCB terminal blocks, transformer leads, and home appliance control panels.
● Soldering & Ferrule Pre-Treatment: Creating tight, whisker-free copper strand bundles prior to dip soldering, tinning, or end-sleeve ferrule crimping.
● Custom Cable Shops & Rework Stations: Fast, tool-free processing for small-to-medium batch wire harness orders and repair benches.
Feature ● Wire cutting, single (or double) end stripping, single (or double) end crimping, single end insertion of heat-shrink tub and heating, single end sleeve inserting machine ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Functions: Wire cutting, single/double-ended stripping, single/double/parallel-ended crimping, single/double/parallel heat-shrink tubing application. ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Equipped with high-precision servo motors for cutting and stripping mechanisms, the system delivers exceptional accuracy and consistency in wire processing operations. The positive and negative screw structure cutting blade ensures precise stripping results, while the robust ductile iron crimping mechanism provides stable crimping height and superior rigidity for reliable terminal connections. ● Featuring an intuitive color touchscreen interface with comprehensive program memory functions, the machine enables rapid product changeover through one-key parameter recall. The modular design allows individual function modules to be activated or deactivated as needed, maximizing production flexibility and equipment utilization across different product lines and manufacturing requirements.
Feature ● Maximum Rubber Sleeve Size: Diameter 30mm, Thickness 20mm, Square 30*30*20mm. ● Production Efficiency: Average 5 seconds/hole, slight differences may occur due to thread length and plastic shell positioning. ● Needle assembly changeover: 3 minutes; tube assembly changeover: 3 minutes; claw assembly changeover: 9 minutes. ● High production efficiency, saving 2-5 people and reducing manual labor intensity. ● High equipment compatibility; can achieve threading of various rubber sleeves through changeover, changeover time 15 minutes. ● High safety performance; multi-step, two-hand start-up. ● One-button switching between single and two rubber sleeve functions (customizable).
