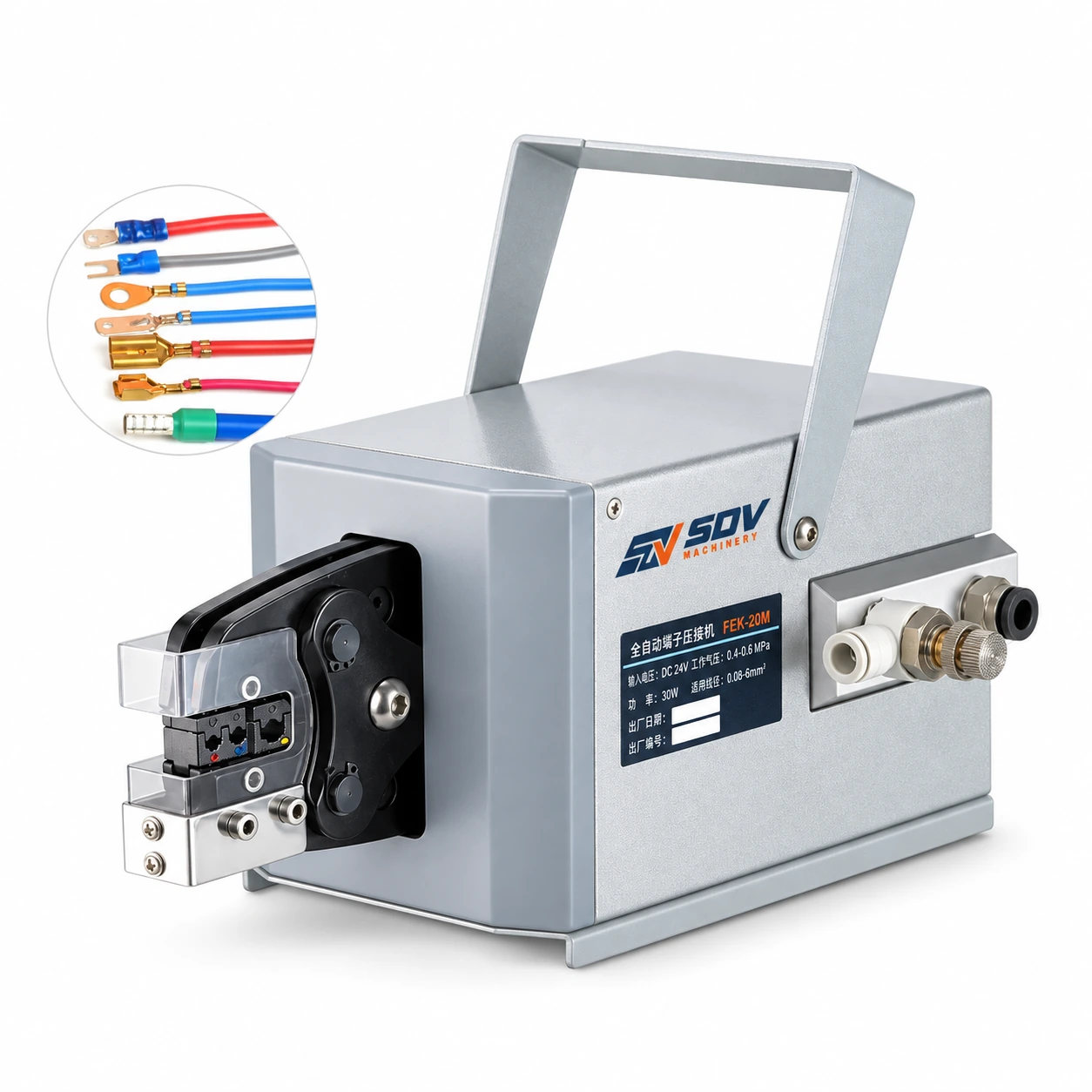

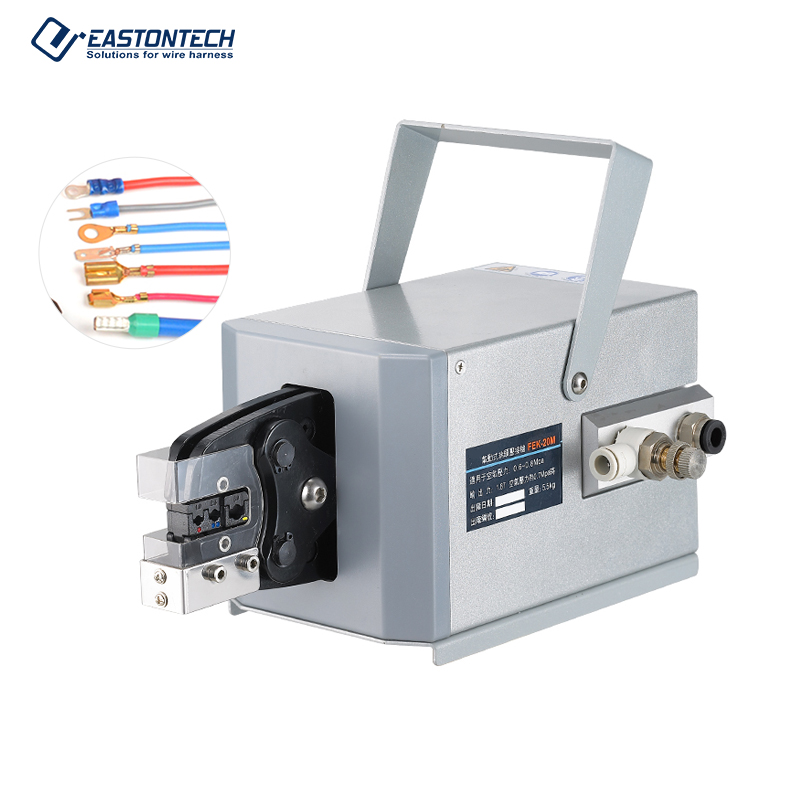

Feature
● Powerful 2.0 Ton (20 kN) Crimp Output: Pneumatic cylinder output ensures uniform crimping pressure without relying on physical operator hand strength.
● Interchangeable Quick-Change Die Sets: Compatible with a wide array of quick-swap crimping dies for non-insulated, insulated, open-barrel, and ferrule terminals.
● High-Speed Output (Up to 1,200 Crimps/Hour): Foot-pedal operation increases bench production speed up to 400% over manual hand crimpers, hitting cycle rates of 1,200 ties per hour.
● Broad Wire Range (Up to 35 mm² Ferrules): Accommodates non-insulated terminals up to 16 mm², insulated lugs up to 6 mm², and bootlace end-ferrules up to 35 mm².
● Ultra-Compact 6 kg Benchtop Design: Footprint of just 275 × 128 × 145 mm fits easily on congested assembly benches and mobile work carts.
● Ergonomic & Low-Maintenance Operation: Smooth pneumatic actuation lowers operator hand strain and repetitive motion injuries while providing long operational durability.
Application Range
● Electrical Control Cabinet & Panel Building: Rapid crimping of bootlace ferrules up to 35 mm² for PLC control modules and DIN-rail terminal blocks.
● Automotive & Commercial Harness Assembly: High-repeatability crimping of non-insulated and insulated ring, fork, and disconnect terminals.
● Industrial Appliance & Equipment Wiring: Fast, consistent crimping for internal power distribution harnesses and grounding wires.
● Contract Electronics & Custom Harness Production: Ideal for high-mix, low-to-medium volume bench stations requiring quick die changeovers.
Feature ● Wire cutting, single (or double) end stripping, single (or double) end crimping, single end insertion of heat-shrink tub and heating, single end sleeve inserting machine ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Functions: Wire cutting, single/double-ended stripping, single/double/parallel-ended crimping, single/double/parallel heat-shrink tubing application. ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Equipped with high-precision servo motors for cutting and stripping mechanisms, the system delivers exceptional accuracy and consistency in wire processing operations. The positive and negative screw structure cutting blade ensures precise stripping results, while the robust ductile iron crimping mechanism provides stable crimping height and superior rigidity for reliable terminal connections. ● Featuring an intuitive color touchscreen interface with comprehensive program memory functions, the machine enables rapid product changeover through one-key parameter recall. The modular design allows individual function modules to be activated or deactivated as needed, maximizing production flexibility and equipment utilization across different product lines and manufacturing requirements.
Feature ● Maximum Rubber Sleeve Size: Diameter 30mm, Thickness 20mm, Square 30*30*20mm. ● Production Efficiency: Average 5 seconds/hole, slight differences may occur due to thread length and plastic shell positioning. ● Needle assembly changeover: 3 minutes; tube assembly changeover: 3 minutes; claw assembly changeover: 9 minutes. ● High production efficiency, saving 2-5 people and reducing manual labor intensity. ● High equipment compatibility; can achieve threading of various rubber sleeves through changeover, changeover time 15 minutes. ● High safety performance; multi-step, two-hand start-up. ● One-button switching between single and two rubber sleeve functions (customizable).
