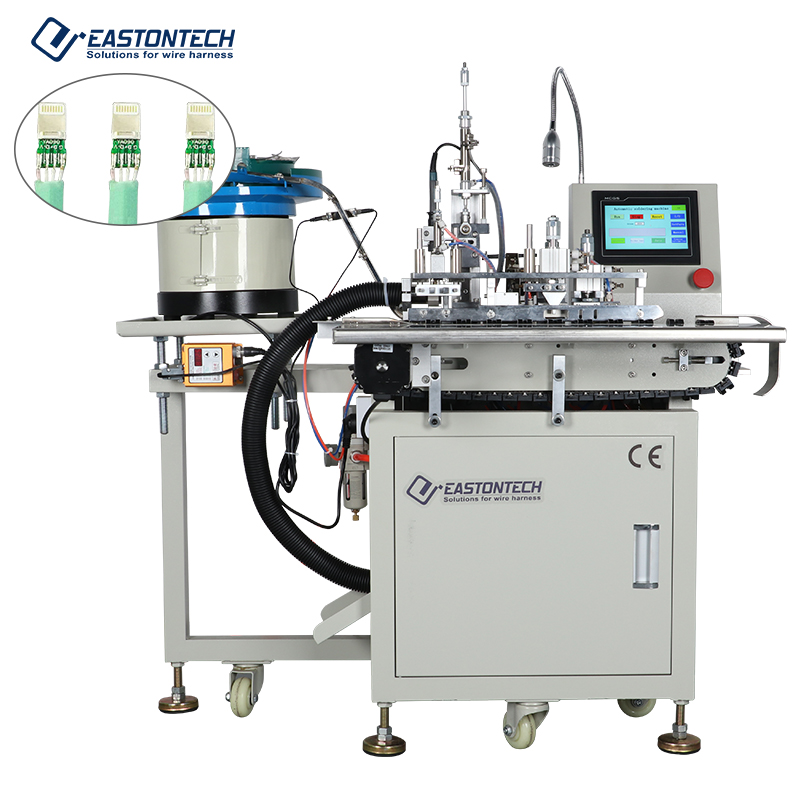

Feature
● High Production Output (1,000 pcs/h): Automated multi-wire alignment and precision welding achieve cycle speeds several times faster than manual soldering technicians.
● Ultra-Low Defect Rate (≤ 0.3% Reject Ratio): Digital control over pressure, time, and power eliminates cold solder joints, short circuits, and human positioning errors.
● Fluxless & Spark-Free Eco-Operation: Requires no solder wire, flux, or shielding gas, creating a safe, fume-free workshop while significantly reducing consumable costs.
● Near-Zero Electrical Resistance: Delivers exceptional electrical conductivity across joints, ensuring optimal data transfer and fast-charging compliance for modern USB standards.
● Oxidized Surface Adaptability: Precision welding energy easily breaks through surface oxidation or electroplated coatings on copper/alloy wires without pre-treatment.
● Durable Industrial Build (175 kg): Built with imported wear-resistant components and compact dimensions (1100 × 750 × 1050 mm) for long-term reliability with minimal maintenance.
Application Range
● Consumer Electronics Cable Lines: Fast, automated assembly for USB-A, Micro-USB, USB Type-C, and Apple Lightning charging leads.
● Automotive USB Media Harnesses: High-reliability wire-to-connector joints for in-dash media ports, smart displays, and EV charging sockets.
● Industrial Data & Communication Cabling: Precision low-resistance terminal joining for multi-core industrial USB communication interfaces.
● High-Volume OEM Harness Assembly: Ideal replacement for manual benchtop soldering stations to eliminate solder fumes and cut labor costs.
