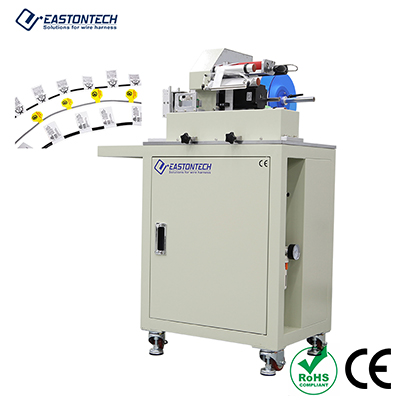

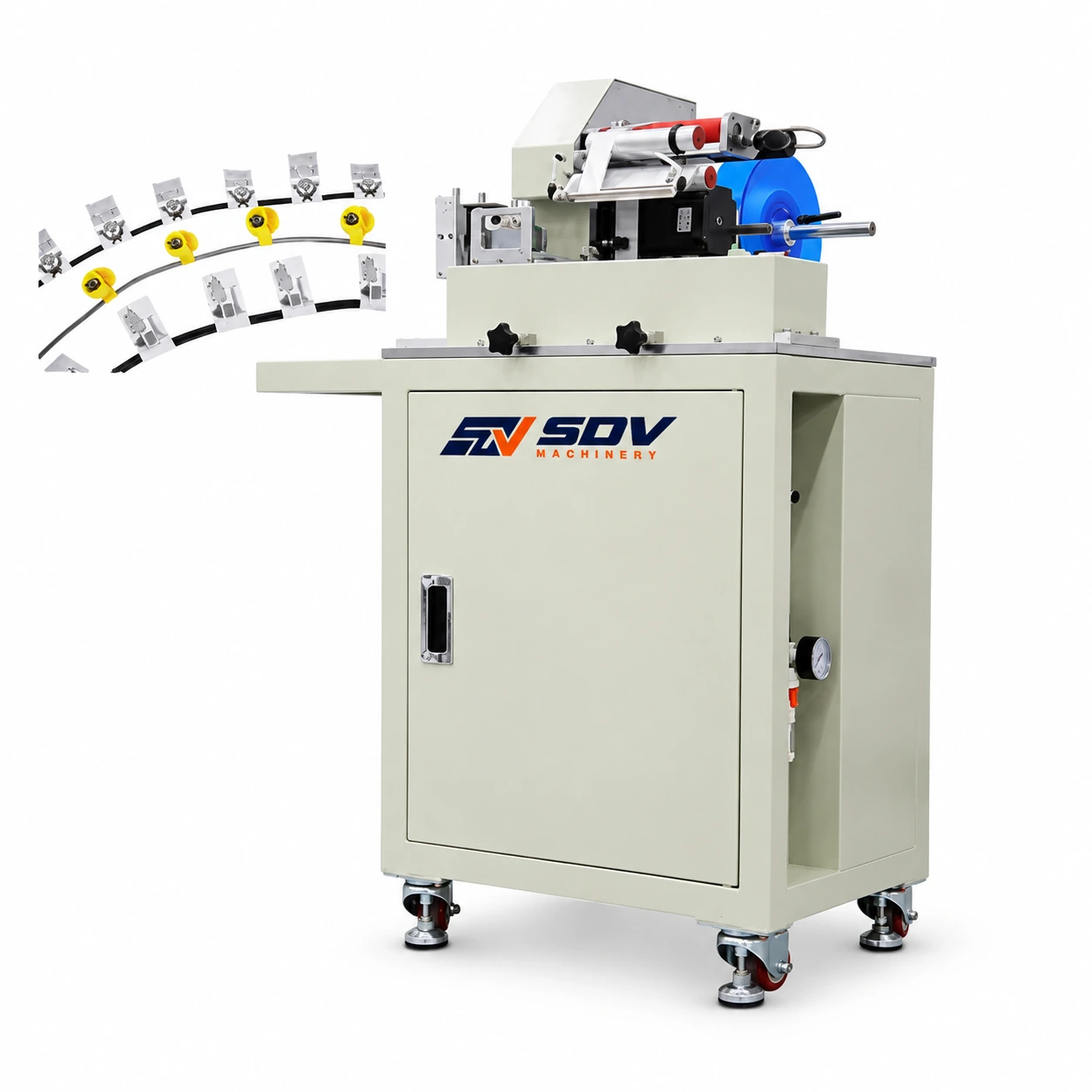

Feature
● High-Speed Fold-Over Flag Labeling (Up to 1,400 pcs/h): Automates cable flag folding to replace manual hand wrapping, boosting production output while eliminating operator fatigue.
● Precision Electric Eye Optical Sensing: Advanced optical eye sensor instantly detects label gaps and edges, ensuring accurate label dispensing and precise ±0.5 mm placement repeatability.
● Bubble-Free & Wrinkle-Free Folding: Synchronized mechanical folding jaws apply balanced pressure during closure, preventing air pockets, skewed alignment, and surface blistering.
● Dual Model Coverage (1.5 mm to 8 mm Cable OD): Select the EW-17A-1 for standard wire leads (1.5–5 mm OD / 30–100 mm labels) or the EW-17A-2 for thicker cables (5–8 mm OD / 100–240 mm labels).
● Multi-Axis Fine-Tuning Flexibility: Multi-degree freedom positional adjustment allows quick, effortless calibration when switching between different wire gauges or label roll dimensions.
● Universal Profile Compatibility: Seamlessly applies fold-over labels to round wires, flat ribbon cables, round pipes, and flat tubing without requiring expensive custom dies.
Application Range
● Electrical Control Cabinet Cabling: High-volume flag labeling for circuit identification tags on internal panel leads.
● Telecommunications & Network Cable Assembly: Precise flag/wrap labeling for Ethernet patch cords, fiber optics, and audio leads.
● Automotive Harness & Hose Identification: Fast marking on automotive wire looms, fluid pipes, and vacuum lines.
● Hardware, Food & Industrial Pipe Marking: Fold-over label attachment for small pipes, tubes, and hardware line products.
