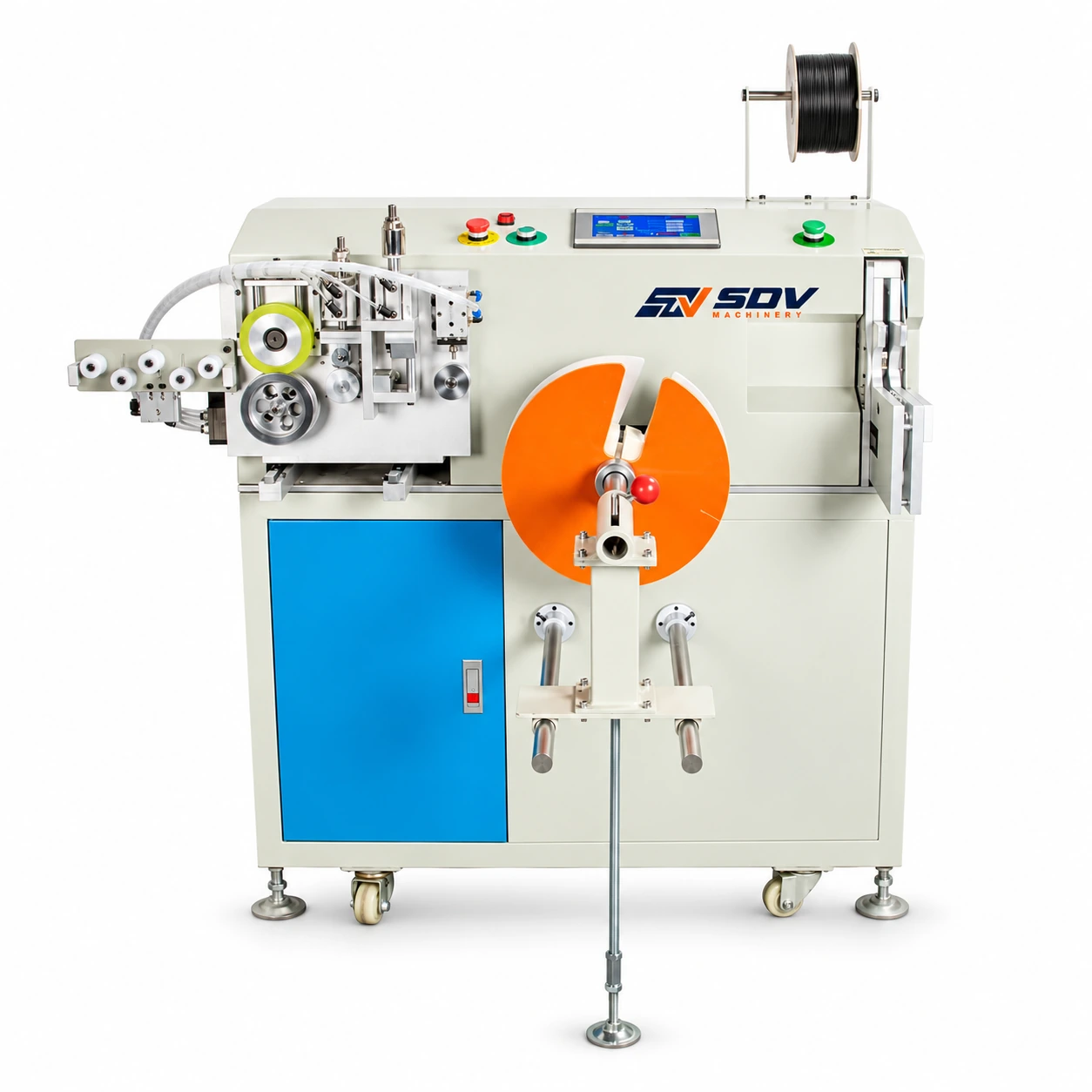

Feature
● 3 kg Heavy-Duty Load-Bearing Capacity: Reinforced spindle and heavy-duty frame support thick cable coils and long wire assemblies up to 3 kg without speed loss or structural vibration.
● Precision Digital Meter Counting (1 mm Increments): Integrated digital meter counter allows operators to program precise target winding lengths down to 1 mm increments, eliminating manual measuring errors and wire giveaway.
● Broad Processing Range (1–16 mm OD & 80 m Length): Easily handles single wires, multi-core cables, and flat cords from 1 mm to 16 mm in outer diameter and winding lengths up to 80 meters.
● Ultra-Fast 0.7-Second Tying Speed: Rapid automatic binding mechanism ties each finished coil in just 0.7 seconds, dramatically reducing cycle times and boosting production throughput.
● Pneumatic Cylinder Driven Cutting & Winding: Industrial pneumatic cylinders ensure clean, square wire cuts and smooth, controlled coiling action across 1 to 10 circles/second adjustable winding speeds.
● Customized Winding Tooling & Expanded Tying Options: Winding fixtures are tailored to customer coil dimensions (inner diameter 50–300 mm, outer diameter under 350 mm), with the optional EW-20S-2A model offering multi-range tying capabilities (8–80 mm).
Application Range
● Power Cords & Extension Cable Packaging: High-volume measuring, winding, and binding of AC power cables, extension leads, and appliance cords.
● Automotive & Industrial Cable Harnesses: Automated coiling and tying of heavy-duty wiring harnesses up to 3 kg per finished bundle.
● Telecom & Network Cable Processing: Precision meter-length cutting, coiling, and tying for Cat6/Cat7 ethernet, coaxial, and fiber drop cables.
● Bulk Wire Retail & Distribution Preparation: Rapid coiling of exact customer-specified cable lengths (up to 80 meters) for direct sales packaging.
