Feature

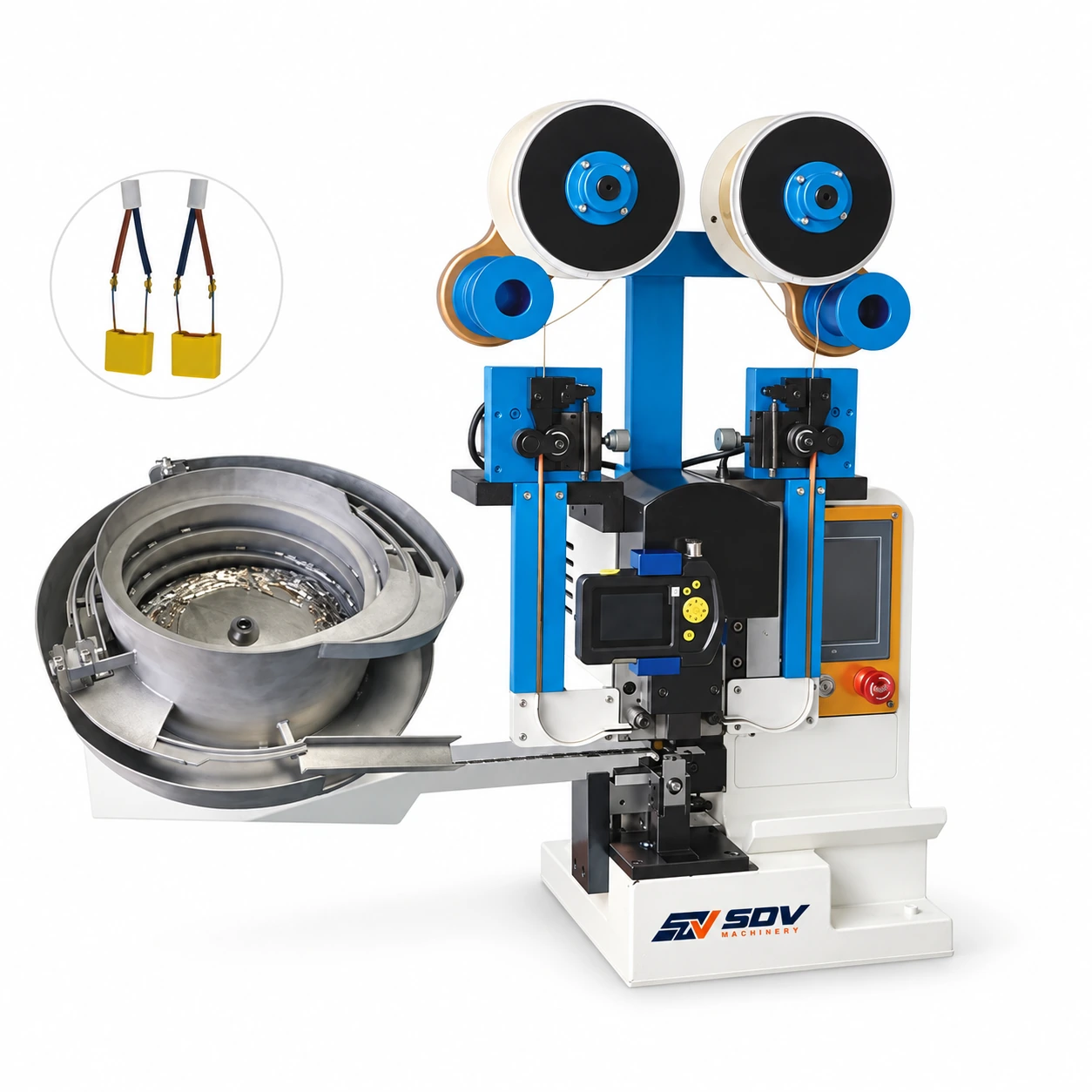

● Cost-Efficient Copper Tape Splicing: Replaces high-cost pre-insulated terminal lugs by utilizing economical raw copper ribbon rolls (widths from 1.0 to 6.0mm) to create tight, low-resistance crimp connections.
● 0.01s High-Speed Cycle Dynamics: Delivers a lightning-fast splicing speed adjustable down to 0.01 seconds, offering flexible crimp-hold timing controls to maximize industrial plant output.
● Intelligent Dual-Product HMI Memory: Features a modern color LCD touch screen operating system that allows technicians to store and quick-toggle between processing parameters for two distinct products simultaneously.
● Integrated Pressure Monitoring Array: Outfitted with an enterprise-grade pressure detecting device and real-time waveform monitor to check crimping point consistency, ensuring immediate fault detection.
● Modular Fast-Changeover Architecture: Built on a streamlined structural frame that enables operators to complete tool-less die configuration modifications and wire alignment setups within minutes.
Application Range
● Wire-to-Wire Parallel Splicing: Widely deployed for fast, compact bridging and joining of multiple stranded copper wires within mainstream consumer electronics and industrial wire trunks.
● Electronic Component & LED In-Line Crimping: The production standard for splicing delicate inline resistors, thermal fuses, neon light strips, decorative LED light strands, and specialized sensors directly onto lead wires. (Highly targeted at contract manufacturers in Taiwan, Vietnam, Thailand, Poland, and Mexico).
● Automotive Audio & Dashboard Harnessing: Ideal for low-profile, high-vibration resistant splice joints inside tightly packaged automotive cabin networks where standard bulky terminals cannot fit.
Feature ● Wire cutting, single (or double) end stripping, single (or double) end crimping, single end insertion of heat-shrink tub and heating, single end sleeve inserting machine ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Functions: Wire cutting, single/double-ended stripping, single/double/parallel-ended crimping, single/double/parallel heat-shrink tubing application. ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Equipped with high-precision servo motors for cutting and stripping mechanisms, the system delivers exceptional accuracy and consistency in wire processing operations. The positive and negative screw structure cutting blade ensures precise stripping results, while the robust ductile iron crimping mechanism provides stable crimping height and superior rigidity for reliable terminal connections. ● Featuring an intuitive color touchscreen interface with comprehensive program memory functions, the machine enables rapid product changeover through one-key parameter recall. The modular design allows individual function modules to be activated or deactivated as needed, maximizing production flexibility and equipment utilization across different product lines and manufacturing requirements.
Feature ● Maximum Rubber Sleeve Size: Diameter 30mm, Thickness 20mm, Square 30*30*20mm. ● Production Efficiency: Average 5 seconds/hole, slight differences may occur due to thread length and plastic shell positioning. ● Needle assembly changeover: 3 minutes; tube assembly changeover: 3 minutes; claw assembly changeover: 9 minutes. ● High production efficiency, saving 2-5 people and reducing manual labor intensity. ● High equipment compatibility; can achieve threading of various rubber sleeves through changeover, changeover time 15 minutes. ● High safety performance; multi-step, two-hand start-up. ● One-button switching between single and two rubber sleeve functions (customizable).
