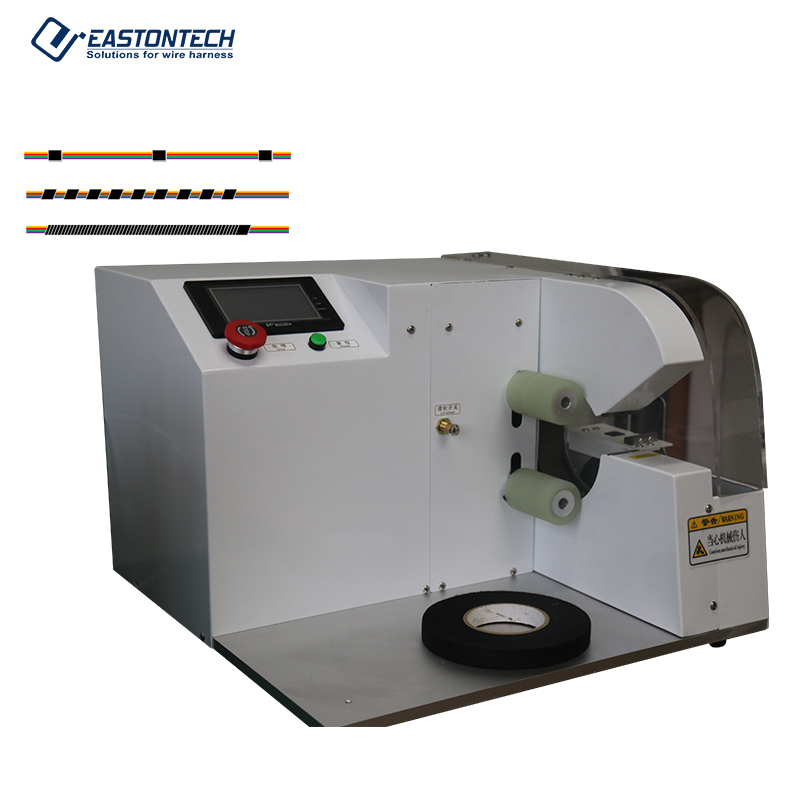

Feature
● Versatile 3-in-1 Wrapping Modes: Program full spiral wrapping, precise spot taping, or multi-section interval wrapping effortlessly on a single machine interface.
● Broad Harness Diameter Range (3–40 mm OD): Accommodates thin wire leads to thick automotive wire harness branches up to 40 mm outer diameter with unlimited wrapping length.
● Doubles Manual Production Efficiency: Automated rotation and continuous tape feeding double output speed while maintaining uniform wrapping pitch and tape tension.
● Multi-Tape Material Compatibility: Operates smoothly with flannel tape, PVC electrical tape, acetate cloth tape, polyester tape, and specialized insulation wraps.
● Customizable Tape Fixture & Core Sizes: Tape fixtures can be tailor-made to match specific client tape rolls (inner core 37/76 mm, outer diameter ≤ 170 mm, width 5–25 mm).
● Dual Operation Modes & Safety Guarding: Operate via color touchscreen or hands-free foot pedal, fully protected by an integrated safety guard for operator safety.
Application Range
● Automotive Wire Harness Production: Full and spot tape wrapping of engine bay, interior body, and door wiring bundles.
● Industrial Control Equipment Cabling: Protective bundling using noise-damping flannel tape or high-temperature acetate cloth tape.
● Home Appliance & Consumer Electronics Wiring: Rapid continuous taping of internal wiring looms and power cord assemblies.
● Custom Cable Assembly Benches: Flexible spot and multi-section wrapping for low-volume, high-mix custom harness orders.
Feature ● Wire cutting, single (or double) end stripping, single (or double) end crimping, single end insertion of heat-shrink tub and heating, single end sleeve inserting machine ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Functions: Wire cutting, single/double-ended stripping, single/double/parallel-ended crimping, single/double/parallel heat-shrink tubing application. ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Equipped with high-precision servo motors for cutting and stripping mechanisms, the system delivers exceptional accuracy and consistency in wire processing operations. The positive and negative screw structure cutting blade ensures precise stripping results, while the robust ductile iron crimping mechanism provides stable crimping height and superior rigidity for reliable terminal connections. ● Featuring an intuitive color touchscreen interface with comprehensive program memory functions, the machine enables rapid product changeover through one-key parameter recall. The modular design allows individual function modules to be activated or deactivated as needed, maximizing production flexibility and equipment utilization across different product lines and manufacturing requirements.
Feature ● Maximum Rubber Sleeve Size: Diameter 30mm, Thickness 20mm, Square 30*30*20mm. ● Production Efficiency: Average 5 seconds/hole, slight differences may occur due to thread length and plastic shell positioning. ● Needle assembly changeover: 3 minutes; tube assembly changeover: 3 minutes; claw assembly changeover: 9 minutes. ● High production efficiency, saving 2-5 people and reducing manual labor intensity. ● High equipment compatibility; can achieve threading of various rubber sleeves through changeover, changeover time 15 minutes. ● High safety performance; multi-step, two-hand start-up. ● One-button switching between single and two rubber sleeve functions (customizable).
