Feature

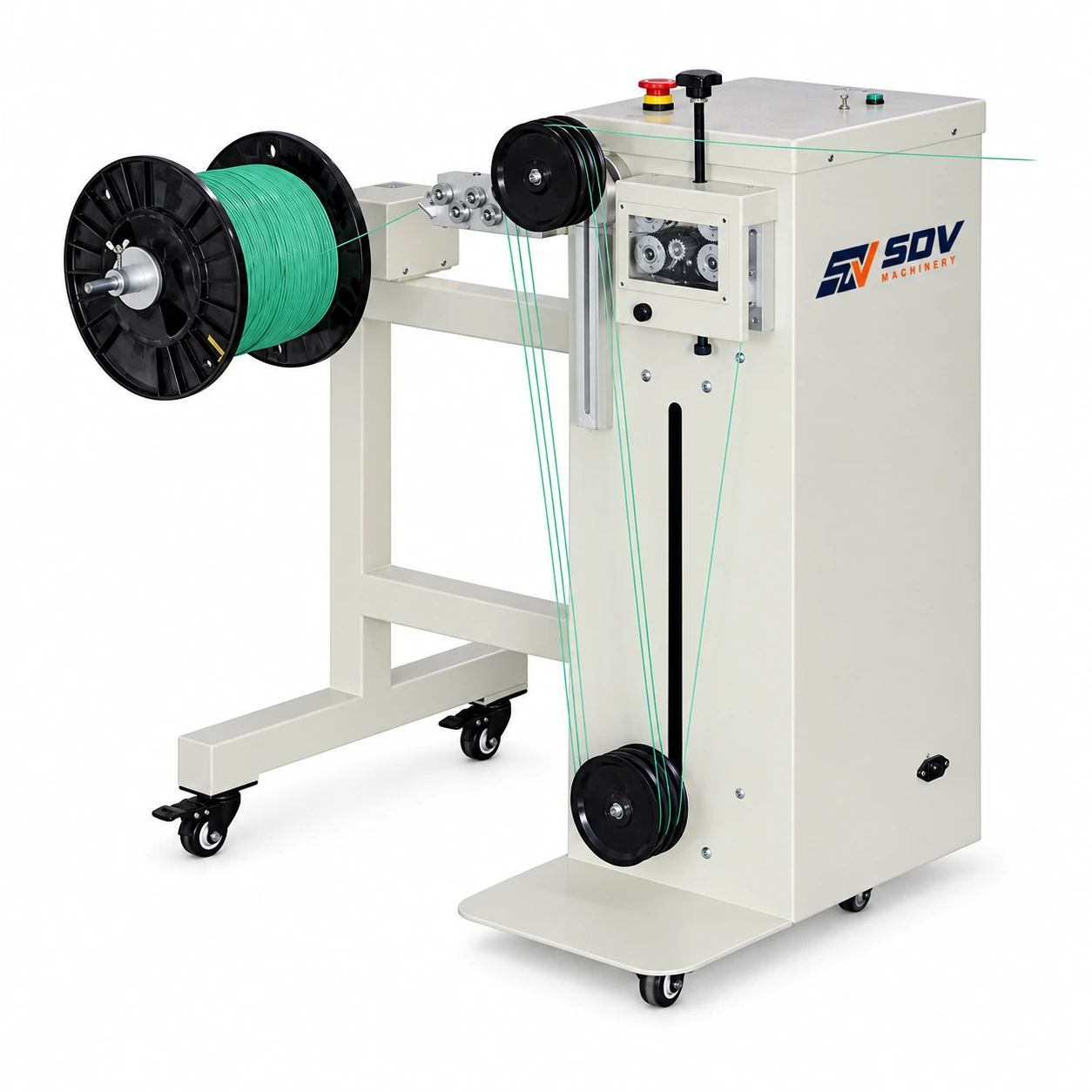

● Moveable Dancer Arm Synchronization: Dynamically responds to the rapid acceleration and deceleration of cutting/stripping machines, absorbing inertia and eliminating tension spikes.
● Tension-Free Belt Drive (2.5 m/s): Delivers smooth pay-off up to 2.5 m/s with adjustable belt pressure, preventing insulation stretching and surface scuffing on delicate wires (0.6–5 mm OD).
● 25 kg Reel Loading Capacity: Accommodates wire drums and spools up to 25 kg, providing continuous, hassle-free material feeding for automated processing lines.
● Universal Line Integration: Compact 40 kg floor-standing unit (830 × 550 × 950 mm) easily pairs with any brand of automatic wire cutting, stripping, or crimping machinery.
Application Range
● Automated Wire Cutting & Stripping Lines: Active reel pay-off that ensures tight length repeatability on benchtop and high-speed automatic stripping machines.
● Fine Signal & Automotive Wiring: Tension-free feeding for delicate copper conductors, PVC wires, and Teflon insulation leads sensitive to stretching.
● Continuous Terminal Crimping Workstations: Providing smooth, uninhibited wire delivery to automatic cut-strip-crimp production centers.
● Spool & Reel Unwinding Applications: Handling loose spools, plastic reels, and wire drums up to 25 kg in electronics and harness manufacturing plants.
Feature ● Wire cutting, single (or double) end stripping, single (or double) end crimping, single end insertion of heat-shrink tub and heating, single end sleeve inserting machine ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Functions: Wire cutting, single/double-ended stripping, single/double/parallel-ended crimping, single/double/parallel heat-shrink tubing application. ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Equipped with high-precision servo motors for cutting and stripping mechanisms, the system delivers exceptional accuracy and consistency in wire processing operations. The positive and negative screw structure cutting blade ensures precise stripping results, while the robust ductile iron crimping mechanism provides stable crimping height and superior rigidity for reliable terminal connections. ● Featuring an intuitive color touchscreen interface with comprehensive program memory functions, the machine enables rapid product changeover through one-key parameter recall. The modular design allows individual function modules to be activated or deactivated as needed, maximizing production flexibility and equipment utilization across different product lines and manufacturing requirements.
Feature ● Maximum Rubber Sleeve Size: Diameter 30mm, Thickness 20mm, Square 30*30*20mm. ● Production Efficiency: Average 5 seconds/hole, slight differences may occur due to thread length and plastic shell positioning. ● Needle assembly changeover: 3 minutes; tube assembly changeover: 3 minutes; claw assembly changeover: 9 minutes. ● High production efficiency, saving 2-5 people and reducing manual labor intensity. ● High equipment compatibility; can achieve threading of various rubber sleeves through changeover, changeover time 15 minutes. ● High safety performance; multi-step, two-hand start-up. ● One-button switching between single and two rubber sleeve functions (customizable).
