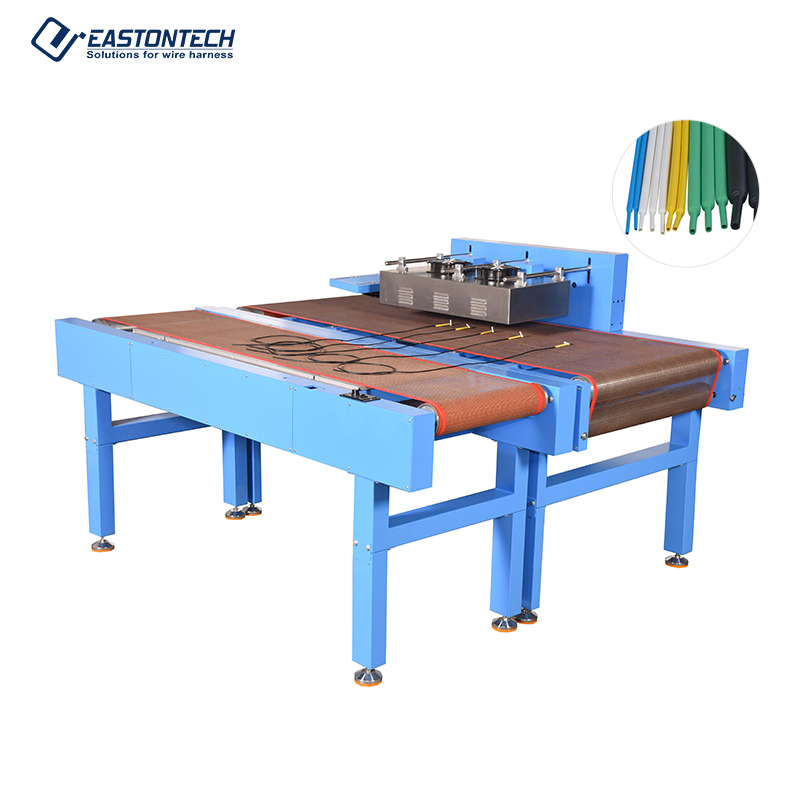

Feature
● Suitable for heat shrinkage of heating thin wire harness.
● The vertical and parallel distance between heater and conveyor belt can be adjusted, which
is suitable for heating shrinkable tubes with different size components. Energy saving, no
damage to the wire.
● The power output is controlled by digital stepless mediation, and the temperature is controlled.
● The output is stable and the error of temperature control is 2℃.
● It is equipped with overheating and overload protection and power-off protection device,
which does not produce exhaust gas and conforms to environmental protection. It can operate
24 hours a year without interruption.
● This machine can be used with auxiliary conveyor.
● The heating position can be adjusted according to different wiring harness. The vertical
distance and parallel direction from heater to conveyor belt can be adjusted.
● It can be realized: single end heating, intermediate heating, long heat shrinkage tube heating, etc.
