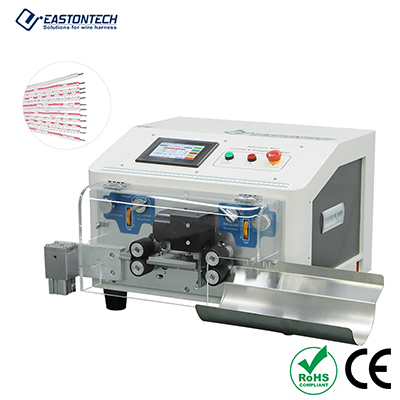

Feature
● 3-in-1 Cutting, Stripping & Conductor Splitting: Cuts cable to length, strips both ends (0.1–30 mm), and splits individual ribbon conductors without damaging insulation bridges.
● Stable 6-Roller Pneumatic Drive: 6-roller feed mechanism distributes pressure evenly across 2P–12P ribbon cables, eliminating lateral skew and feed-length errors.
● Silent Stepper Drive (0.01 mm Precision): Mute hybrid stepper motor provides 0.01 mm positioning accuracy with ultra-quiet operation and full parameter memory.
● Tungsten Steel Blades & High Output (2,000 pcs/h): Heavy-duty imported tungsten steel blades ensure long operational life and clean cuts at speeds up to 2,000 pcs/hour.
● STEP Calibration & Length Auto-Correction: STEP mode displays mechanical sequences sequentially on-screen for fast setup, while automatic slip compensation maintains tight tolerances.
Application Range
● IDC Connector & Ribbon Harness Assembly: Automated cutting, stripping, and end-splitting of IDC flat cables for fast connector housing insertion.
● Computer & Peripheral Interconnects: High-speed preparation of internal motherboard jumpers, drive cables, and display flat ribbon leads.
● Industrial Automation & PLC Wiring: Precision processing of multi-conductor ribbon lines used in control cabinets, robotics, and sensors.
● Medical & Telecom Equipment: Clean, nick-free conductor splitting and stripping for high-density signal ribbon cables under strict quality standards.
Feature ● Wire cutting, single (or double) end stripping, single (or double) end crimping, single end insertion of heat-shrink tub and heating, single end sleeve inserting machine ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Functions: Wire cutting, single/double-ended stripping, single/double/parallel-ended crimping, single/double/parallel heat-shrink tubing application. ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Equipped with high-precision servo motors for cutting and stripping mechanisms, the system delivers exceptional accuracy and consistency in wire processing operations. The positive and negative screw structure cutting blade ensures precise stripping results, while the robust ductile iron crimping mechanism provides stable crimping height and superior rigidity for reliable terminal connections. ● Featuring an intuitive color touchscreen interface with comprehensive program memory functions, the machine enables rapid product changeover through one-key parameter recall. The modular design allows individual function modules to be activated or deactivated as needed, maximizing production flexibility and equipment utilization across different product lines and manufacturing requirements.
Feature ● Maximum Rubber Sleeve Size: Diameter 30mm, Thickness 20mm, Square 30*30*20mm. ● Production Efficiency: Average 5 seconds/hole, slight differences may occur due to thread length and plastic shell positioning. ● Needle assembly changeover: 3 minutes; tube assembly changeover: 3 minutes; claw assembly changeover: 9 minutes. ● High production efficiency, saving 2-5 people and reducing manual labor intensity. ● High equipment compatibility; can achieve threading of various rubber sleeves through changeover, changeover time 15 minutes. ● High safety performance; multi-step, two-hand start-up. ● One-button switching between single and two rubber sleeve functions (customizable).
