Feature

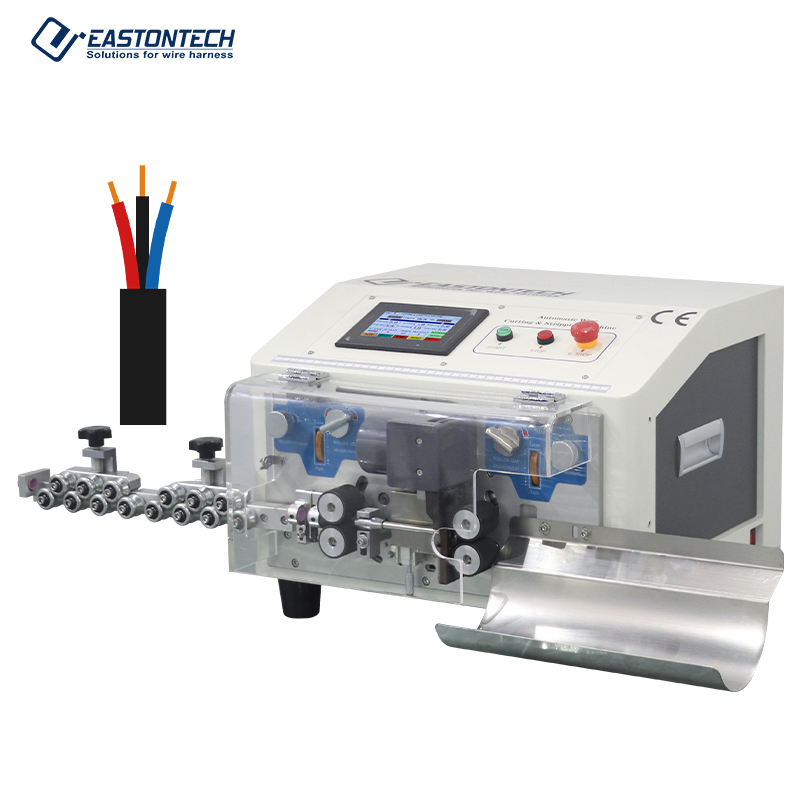

● Simultaneous Double-Layer Stripping: Strips the outer sheath (up to 250 mm) and inner conductor core wires (up to 30 mm) in a single continuous cycle.
● 0.01 mm Silent Stepper Accuracy: Micro-stepping hybrid stepper motor drive guarantees micro-fine strip lengths and cutting depth without damaging copper core strands.
● Innovative Cable Carding Mechanism: Specialized carding guide keeps multi-core conductors aligned, shortening cycle times and boosting production throughput up to 2,000 pcs/h.
● Automatic Feed Length Compensation: Intelligent control system automatically modifies cut length errors during operation to minimize wire scrap and maximize cutting precision.
● Integrated Wire Lack Alarm: Sensor system automatically stops the machine and sounds an alarm when the wire supply empties, protecting blades and reducing labor monitoring.
● Compact 32 kg Desktop Architecture: Measuring 470 × 450 × 350 mm, the lightweight benchtop unit fits easily onto crowded harness assembly benches.
Application Range
● Small-to-Medium Appliance Cabling: Precision double-layer stripping for 2, 3, and 4-core power cords and appliance connecting leads.
● Automotive Sensor & Lighting Wiring: High-speed cut and strip for multi-conductor sensor leads, interior lighting harnesses, and relay connections.
● Consumer Electronics & Power Supplies: Automated sheath removal and core stripping for AC/DC adapter leads and audio/video multi-core wiring.
● Benchtop Rework & Contract Manufacturing: Compact 32 kg design ideal for low-to-medium batch manufacturing, lab prototyping, and fast job changeovers.
