Feature
● Motorized Lift & Fast Loading: Integrates an automatic motorized reel lifting system and quick-lock cam mechanism. This allows a single operator to load massive cable drums up to 2500 kg effortlessly without forklift dependency.
● Smart Accumulator Speed Control: Features an active dancer-arm cable accumulator that dynamically matches the dereeling drive speed up to 250 m/min. This prevents sudden jerks and eliminates mechanical stress on heavy conductors.
● Broad Drum & Wire Compatibility: Supports wide cable diameters from 3 to 45 mm and drum outer diameters up to 1600 mm. Standard drum arbor holes of 56 to 90 mm can also be customized to fit your existing spool inventory.
● Constant Tension Synchronization: Feeds heavy wire materials under highly uniform, constant tension directly to downstream cutting systems. This prevents wire slippage inside feed rollers and guarantees micro-accurate cutting lengths.
● Heavy-Duty Industrial Build: Engineered with an ultra-stable chassis weighing up to 450 kg and driven by powerful motors up to 7.5 kW. Designed for heavy-duty, vibration-free, continuous 24/7 factory operation.
Application Range

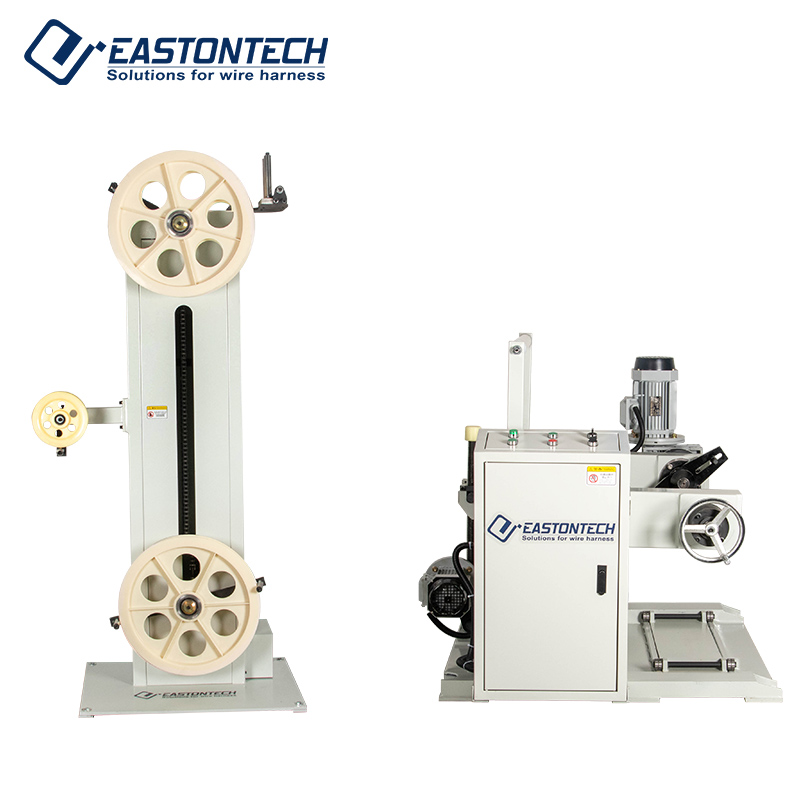

The EW-1435 series is the standard choice for automated heavy cable handling across global supply chains:
● New Energy & Electric Vehicles (EV): Feeding thick, heavy-gauge copper battery cables and shielded charging cables to cut-and-strip stations.
● High-Voltage Power Transmission: Handling thick industrial power cables, armored electrical lines, and heavy-duty grid wiring.
● Railway & Aerospace Harnesses: Delivering constant tension payoff for highly regulated railway transit cables and aircraft control cables.
● Industrial Automation Lines: Supporting high-efficiency, multi-feed automated cable assembly lines where zero-downtime is required.
