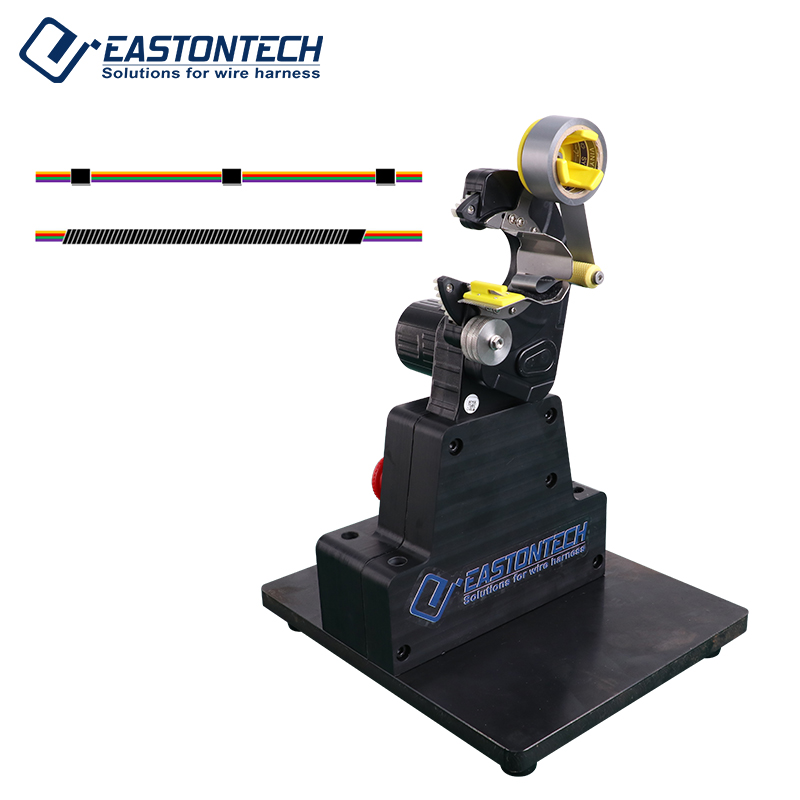

Feature
● Ultra-Lightweight & Portable Architecture (8 kg): Weighing just 8 kg with no compressed air requirement, the machine moves effortlessly between workbenches, assembly lines, and repair stations.
● Dual Taping Modes (Point Taping & Full Taping): Fully programmable for single-location spot bundling or continuous length wrapping, with adjustable winding speeds and turn counts.
● Turntable Opening for Easy Branch Taping: Specialized open-frame ring head design allows quick insertion of main cable trunks and side branches without threading wire ends.
● Integrated Tooth-Shaped Safety Cutter: Concealed tooth-shaped incision blade cleanly severs tough cloth, fleece, or PVC tapes upon completion without exposing operators to exposed sharp edges.
● Automatic Tape Advance Mechanism: Upon completing a wrapping cycle, the tape automatically jumps and holds at the starting position, ready for immediate subsequent operation.
● Foot Pedal Pressure-Variable Speed (2–6 circles/s): Ergonomic foot pedal allows operators to smoothly throttle winding speeds from 2 to 6 revolutions per second for precise control around tight harness bends.
Application Range
● Automotive Wire Harness Branch Taping: Rapid spot bundling and branch wrapping for automotive engine, dashboard, door, and sensor wiring assemblies.
● Industrial Cabinet & Equipment Wiring: Clean, uniform tape wrapping for internal power cable bundles and multi-core control cables.
● Commercial Appliance Harness Production: Repeatable point taping and insulation wrapping for home appliance wiring trunks.
● Benchtop Rework & Prototype Stations: Lightweight 8 kg portable design ideal for low-to-medium batch manufacturing, lab prototyping, and field harness repair.
Feature ● Wire cutting, single (or double) end stripping, single (or double) end crimping, single end insertion of heat-shrink tub and heating, single end sleeve inserting machine ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Functions: Wire cutting, single/double-ended stripping, single/double/parallel-ended crimping, single/double/parallel heat-shrink tubing application. ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Equipped with high-precision servo motors for cutting and stripping mechanisms, the system delivers exceptional accuracy and consistency in wire processing operations. The positive and negative screw structure cutting blade ensures precise stripping results, while the robust ductile iron crimping mechanism provides stable crimping height and superior rigidity for reliable terminal connections. ● Featuring an intuitive color touchscreen interface with comprehensive program memory functions, the machine enables rapid product changeover through one-key parameter recall. The modular design allows individual function modules to be activated or deactivated as needed, maximizing production flexibility and equipment utilization across different product lines and manufacturing requirements.
Feature ● Maximum Rubber Sleeve Size: Diameter 30mm, Thickness 20mm, Square 30*30*20mm. ● Production Efficiency: Average 5 seconds/hole, slight differences may occur due to thread length and plastic shell positioning. ● Needle assembly changeover: 3 minutes; tube assembly changeover: 3 minutes; claw assembly changeover: 9 minutes. ● High production efficiency, saving 2-5 people and reducing manual labor intensity. ● High equipment compatibility; can achieve threading of various rubber sleeves through changeover, changeover time 15 minutes. ● High safety performance; multi-step, two-hand start-up. ● One-button switching between single and two rubber sleeve functions (customizable).
