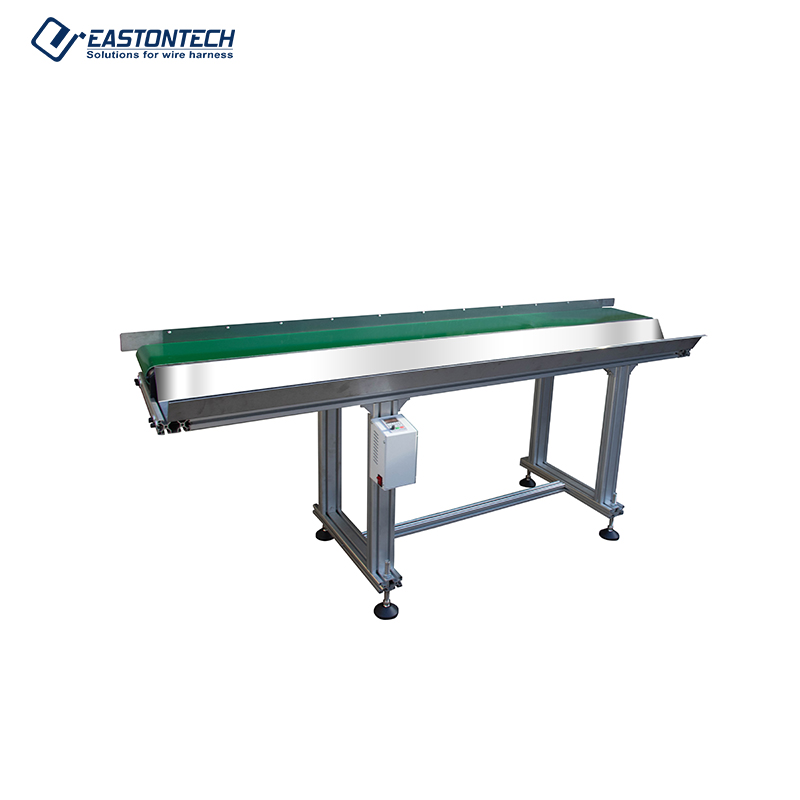

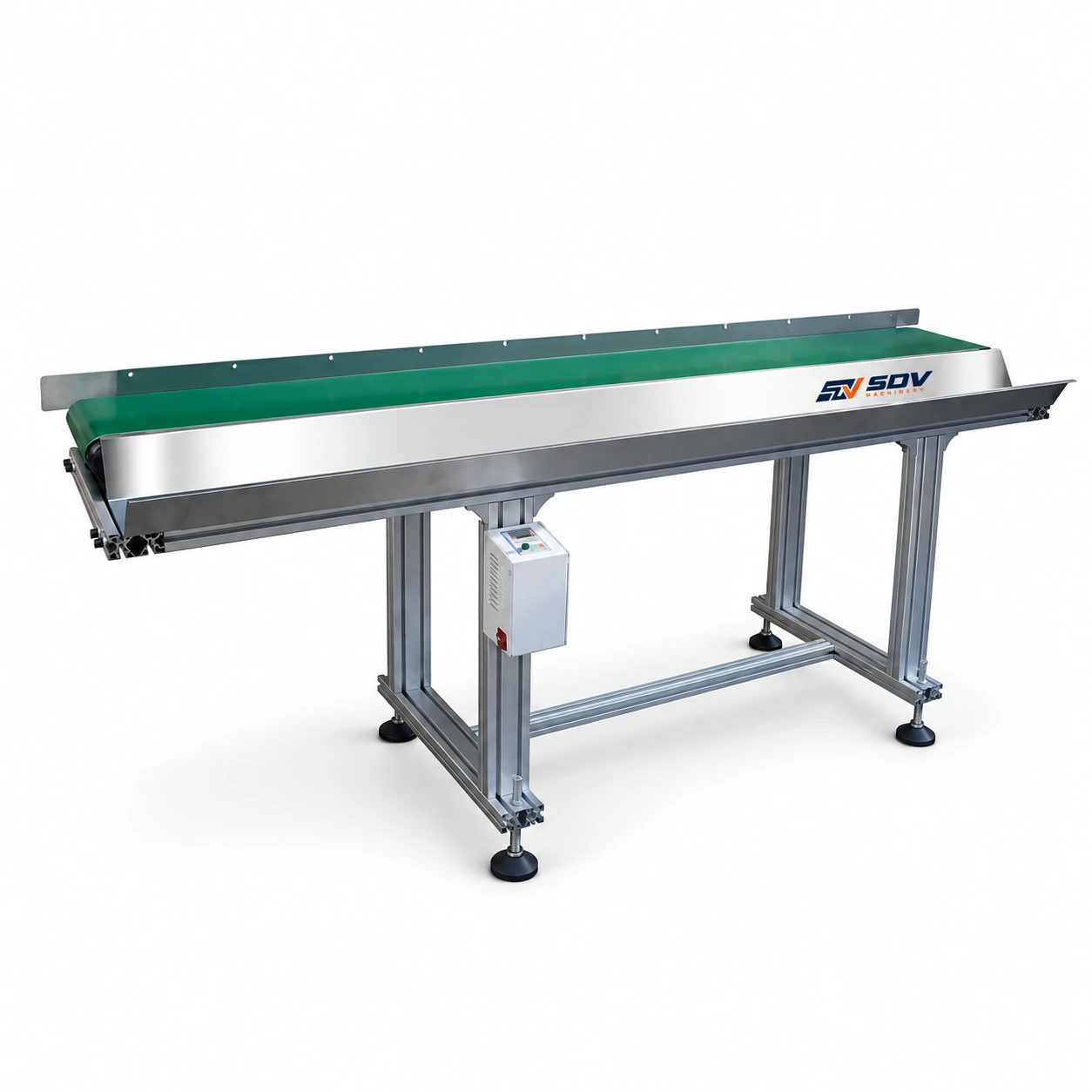

Feature
● High-Speed Synchronized Stacking (Up to 6 m/s): High-velocity belt drive smoothly receives finished wires at speeds up to 6 m/s without causing cable pile-ups or ejection jams.
● Seamless Machinery Integration: Easily pairs with automatic cutting and stripping machines or double-end terminal crimping workstations.
● Modular Length Configurations (1.5 m to 10 m): Customizable conveyer lengths ranging from 1.5 meters up to 10 meters cater to various wire length specifications.
● Multiple Belt & Material Width Options: Available in 160 mm, 240 mm, and 320 mm width options to accommodate single wires or multi-conductor cable bundles.
● Protects Long Cable Quality: Prevents wire insulation from touching factory floors, eliminating dust contamination, scratches, and time-wasting manual wire untangling.
● Dual Power Motor Options (550W / 750W): Selectable motor configurations deliver reliable, continuous operation tailored to light-duty wires or heavy-duty cable bundles.
Application Range
● Automotive Wiring Harness Manufacturing: Orderly collecting long chassis leads, battery cables, and trunk harness assemblies without tangles.
● Motorcycle & EV Cable Assemblies: Neat stacking of multi-branch wiring leads directly from automatic stripping and crimping lines.
● Lighting & Appliance Harness Production: High-throughput conveying of multi-core power supply cords for commercial lighting fixtures.
● Industrial Control Equipment Cabling: Automated collection for multi-meter control box interconnect wires.
