Feature

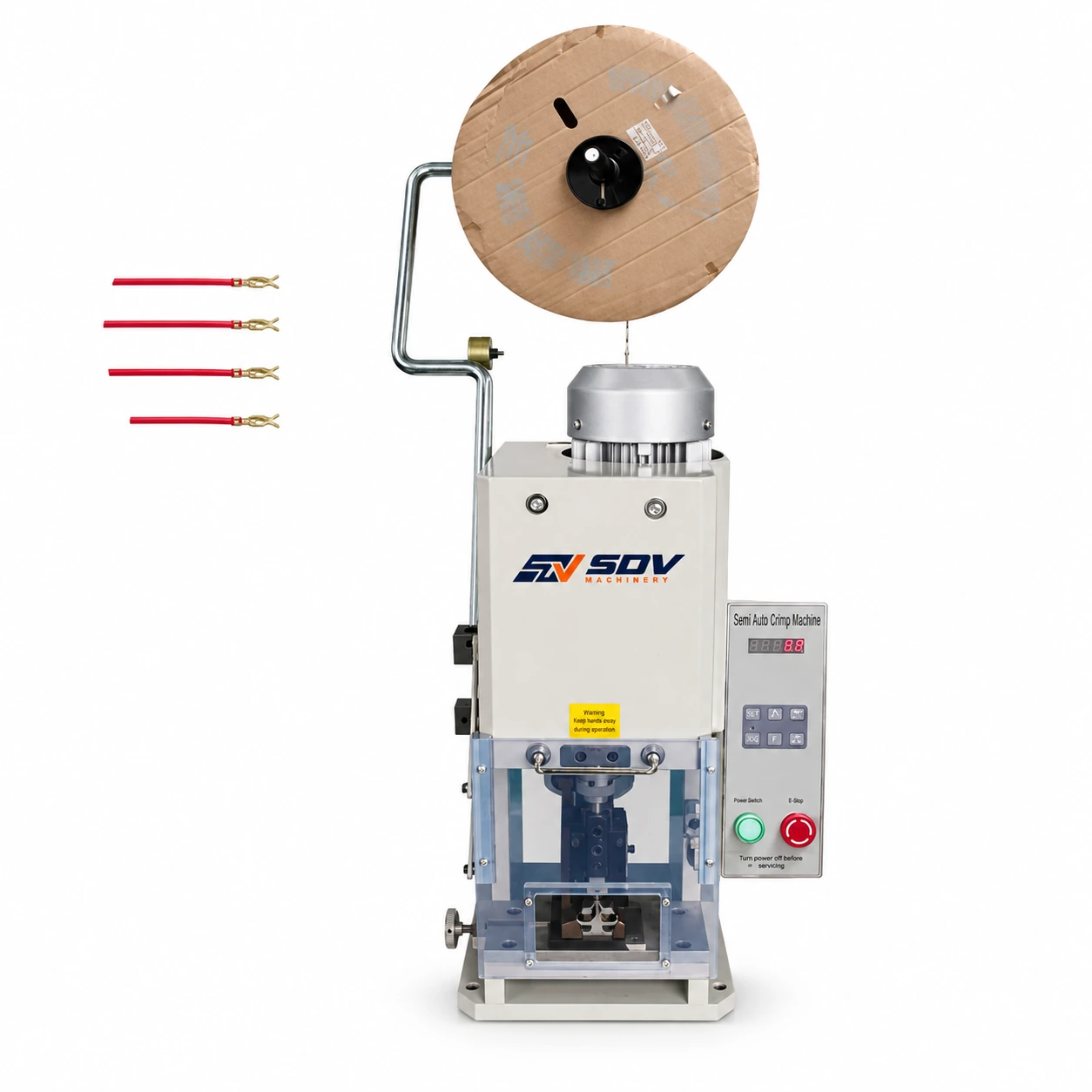

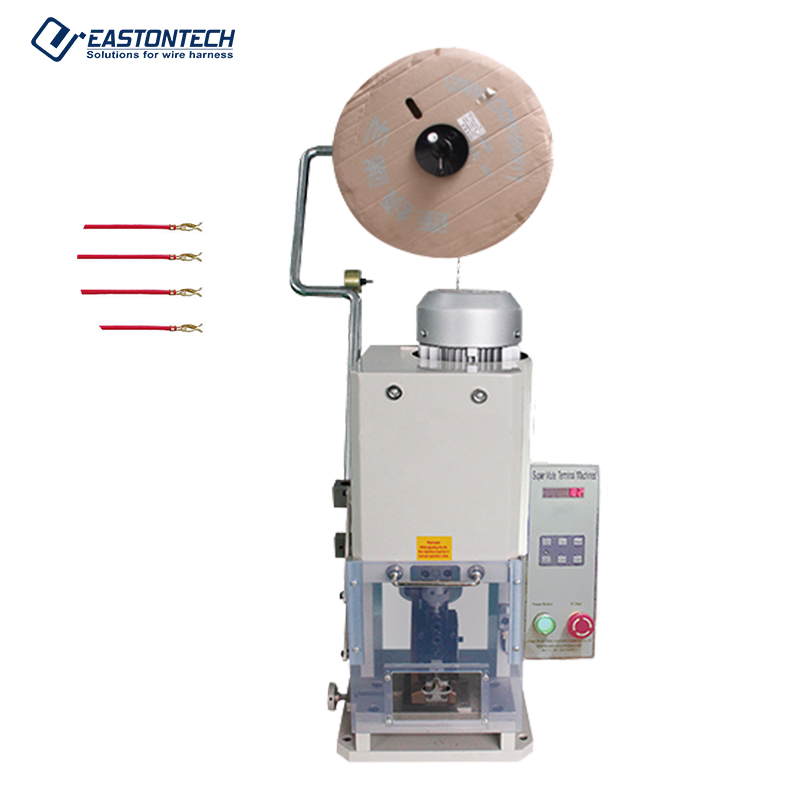

● 25 KN (2.5T) Stable Precision Crimping: Upgraded structural frame and precision drive deliver 2.5 tons of continuous force with sub-millimeter crimp height accuracy.
● Frequency Conversion Mute Operation: Advanced frequency conversion control drastically reduces noise pollution, running quietly only during active crimp cycles (0.75 kW rated / 0.45 kW avg power).
● Dual Optional Stroke (30 mm & 40 mm): Features flexible 30 mm and 40 mm stroke settings to seamlessly match various OTP, mini, and custom terminal applicator molds.
● Rail-Mounted High-Precision Transmission: Combines rail-mounted linear guides with imported proximity switches and high-efficiency reducers for fast, stable feeding and cycle response.
● Compact & Global Voltage Compatible: Footprint of 360 × 550 × 680 mm fits easily on assembly benches; supports universal AC 110V/220V (50/60Hz) power with full CE & RoHS compliance.
Application Range
● Automotive Wiring Harnesses: High-precision crimping of ECU signal terminals, relay connectors, and automotive wire harness pins.
● Home Appliance Wiring: Low-noise, high-speed terminal crimping for internal appliance leads, power supply cords, and control boards.
● Consumer & Industrial Electronics: Precision crimping for micro-fit terminals, PCB power connectors, and sensor assemblies.
● Medical & Telecom Cable Assemblies: High-repeatability terminal termination where strict noise regulations and zero-defect quality standards apply.
Feature ● Wire cutting, single (or double) end stripping, single (or double) end crimping, single end insertion of heat-shrink tub and heating, single end sleeve inserting machine ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Functions: Wire cutting, single/double-ended stripping, single/double/parallel-ended crimping, single/double/parallel heat-shrink tubing application. ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Equipped with high-precision servo motors for cutting and stripping mechanisms, the system delivers exceptional accuracy and consistency in wire processing operations. The positive and negative screw structure cutting blade ensures precise stripping results, while the robust ductile iron crimping mechanism provides stable crimping height and superior rigidity for reliable terminal connections. ● Featuring an intuitive color touchscreen interface with comprehensive program memory functions, the machine enables rapid product changeover through one-key parameter recall. The modular design allows individual function modules to be activated or deactivated as needed, maximizing production flexibility and equipment utilization across different product lines and manufacturing requirements.
Feature ● Maximum Rubber Sleeve Size: Diameter 30mm, Thickness 20mm, Square 30*30*20mm. ● Production Efficiency: Average 5 seconds/hole, slight differences may occur due to thread length and plastic shell positioning. ● Needle assembly changeover: 3 minutes; tube assembly changeover: 3 minutes; claw assembly changeover: 9 minutes. ● High production efficiency, saving 2-5 people and reducing manual labor intensity. ● High equipment compatibility; can achieve threading of various rubber sleeves through changeover, changeover time 15 minutes. ● High safety performance; multi-step, two-hand start-up. ● One-button switching between single and two rubber sleeve functions (customizable).
