Feature

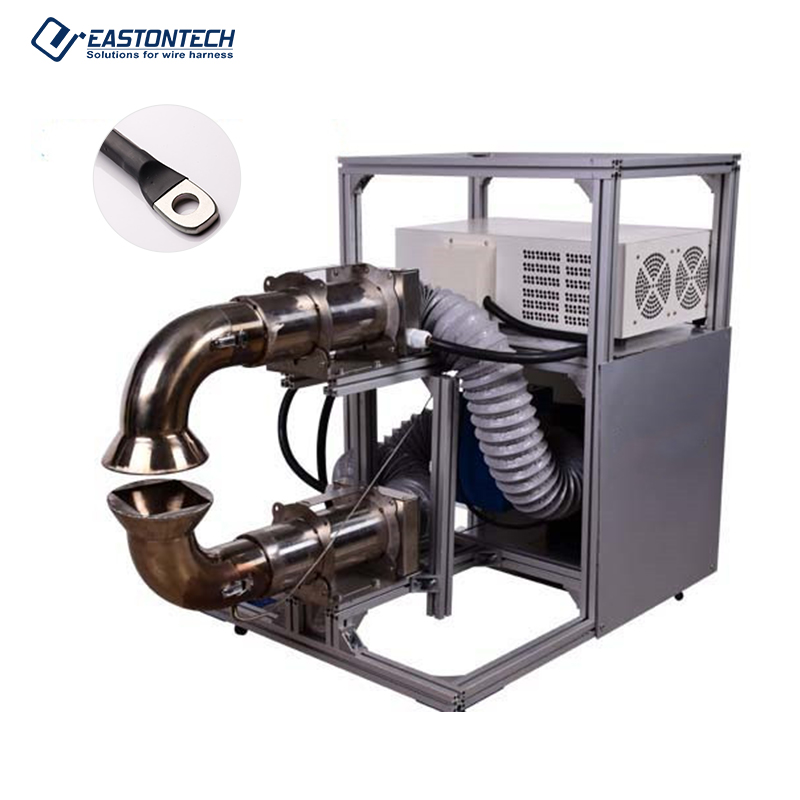

● High-Efficiency Wind Tunnel & Spiral Heating Element: Engineered wind tunnel directs air evenly across spiral heating wires for near-100% heat exchange and minimal wind pressure loss.
● Selectable Single-Sided or Double-Sided Heating: Flexible heating configuration allows operators to choose single-sided or double-sided heating modes based on specific tube thickness and harness requirements.
● Adjustable Heating Width & Outlet Distance: Heating width (1–90 mm) and air outlet distance (10–120 mm) are fully adjustable to maximize energy efficiency and prevent thermal damage to adjacent wire insulation.
● Manual Air Volume Regulation Valve: Integrated air intake valve allows operators to fine-tune airflow volume to match various shrink tube wall thicknesses.
● Motor Phase Sequence Warning & Safety Protections: Equipped with phase sequence detection lighting, overheating protection, overload protection, power-off safety devices, and emergency stop controls.
● Quiet 24/7 Industrial Heavy-Duty Operation: Runs continuously for 24 hours without exhaust gas generation, operating at an ultra-low noise level of just 48 dB.
Application Range
● Automotive High-Voltage & Battery Cable Harnesses: Uniform heat shrinking on thick insulation sleeves for EV battery pack leads and power distribution lines.
● Heavy Machinery & Industrial Power Distribution: Precision shrinking for heavy-gauge power lines, generator cable terminations, and transformer connections (up to 100 mm OD).
● Marine & Outdoor Waterproof Cable Assemblies: High-speed heat shrinking for thick-walled adhesive-lined tubing on waterproof cable splices and connectors.
● Telecommunications & Power Cable Jointing: Reliable 360-degree heat application for joint protection sleeves on outdoor communication feeder cables.
Feature ● Wire cutting, single (or double) end stripping, single (or double) end crimping, single end insertion of heat-shrink tub and heating, single end sleeve inserting machine ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Functions: Wire cutting, single/double-ended stripping, single/double/parallel-ended crimping, single/double/parallel heat-shrink tubing application. ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Equipped with high-precision servo motors for cutting and stripping mechanisms, the system delivers exceptional accuracy and consistency in wire processing operations. The positive and negative screw structure cutting blade ensures precise stripping results, while the robust ductile iron crimping mechanism provides stable crimping height and superior rigidity for reliable terminal connections. ● Featuring an intuitive color touchscreen interface with comprehensive program memory functions, the machine enables rapid product changeover through one-key parameter recall. The modular design allows individual function modules to be activated or deactivated as needed, maximizing production flexibility and equipment utilization across different product lines and manufacturing requirements.
Feature ● Maximum Rubber Sleeve Size: Diameter 30mm, Thickness 20mm, Square 30*30*20mm. ● Production Efficiency: Average 5 seconds/hole, slight differences may occur due to thread length and plastic shell positioning. ● Needle assembly changeover: 3 minutes; tube assembly changeover: 3 minutes; claw assembly changeover: 9 minutes. ● High production efficiency, saving 2-5 people and reducing manual labor intensity. ● High equipment compatibility; can achieve threading of various rubber sleeves through changeover, changeover time 15 minutes. ● High safety performance; multi-step, two-hand start-up. ● One-button switching between single and two rubber sleeve functions (customizable).
