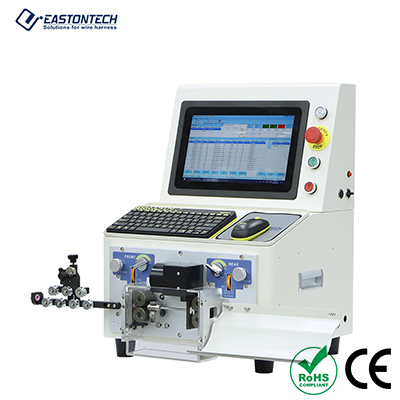

Feature
● Excel Batch Job Data Import: Supports standard and customized Excel file imports, allowing operators to upload hundreds of wire cutting tasks in seconds without manual keypad entry.
● Barcode Scan Verification: Built-in material verification allows operators to scan raw wire spools before starting jobs, preventing costly material mix-ups and scrap runs.
● Automated Process Label Printing: Automatically prints customizable process work orders and bundle labels during processing, streamlining job tracking and downstream harness assembly.
● High-Speed & Silent Hybrid Stepper Drive: Powered by silent hybrid stepper motors delivering smooth, low-noise roller feeding and high throughput up to 6,000 pieces per hour.
● Micro-Precision Cutting & Extended Strip Limits: Delivers extreme length accuracy of ±(0.0001 × L) mm across lengths up to 100 meters, with side-1 stripping up to 250 mm and side-2 up to 70 mm.
Application Range
● Smart Factory & MES-Integrated Shops: High-mix, low-volume contract wire harness facilities requiring digital batch tracking and zero setup errors.
● Automotive & Commercial Vehicle Electronics: Precision wire processing for control modules, sensor looms, and dashboard jumpers with printed work orders.
● Control Cabinet & Switchgear Manufacturing: Batch cutting and labeling of multi-color jumper wires for industrial electrical enclosures.
● Appliance & Consumer Electronics: High-volume, repeatable cutting and stripping of PVC and fiberglass wiring leads.
