Feature
Defense & Aerospace Harness Manufacturing: Precision 3-layer stripping for shielded multi-conductor cables mated to MIL-C-38999 and circular aerospace connectors.
ICT Rack Wiring & Telecommunications: Clean jacket and shield processing for high-density server rack leads, power distribution units, and shielded telecom cables.
Medical Device & Precision Equipment Wiring: Scratch-free cutting and stripping of sensitive sensor and power cables with stringent surface quality standards.
EV Charging & Industrial Power Systems: Rapid cut and strip processing for heavy 1.5–35 mm² stranded copper conductors and grounding jumpers.
Application Range
Shielded cable and industrial control cable assembly

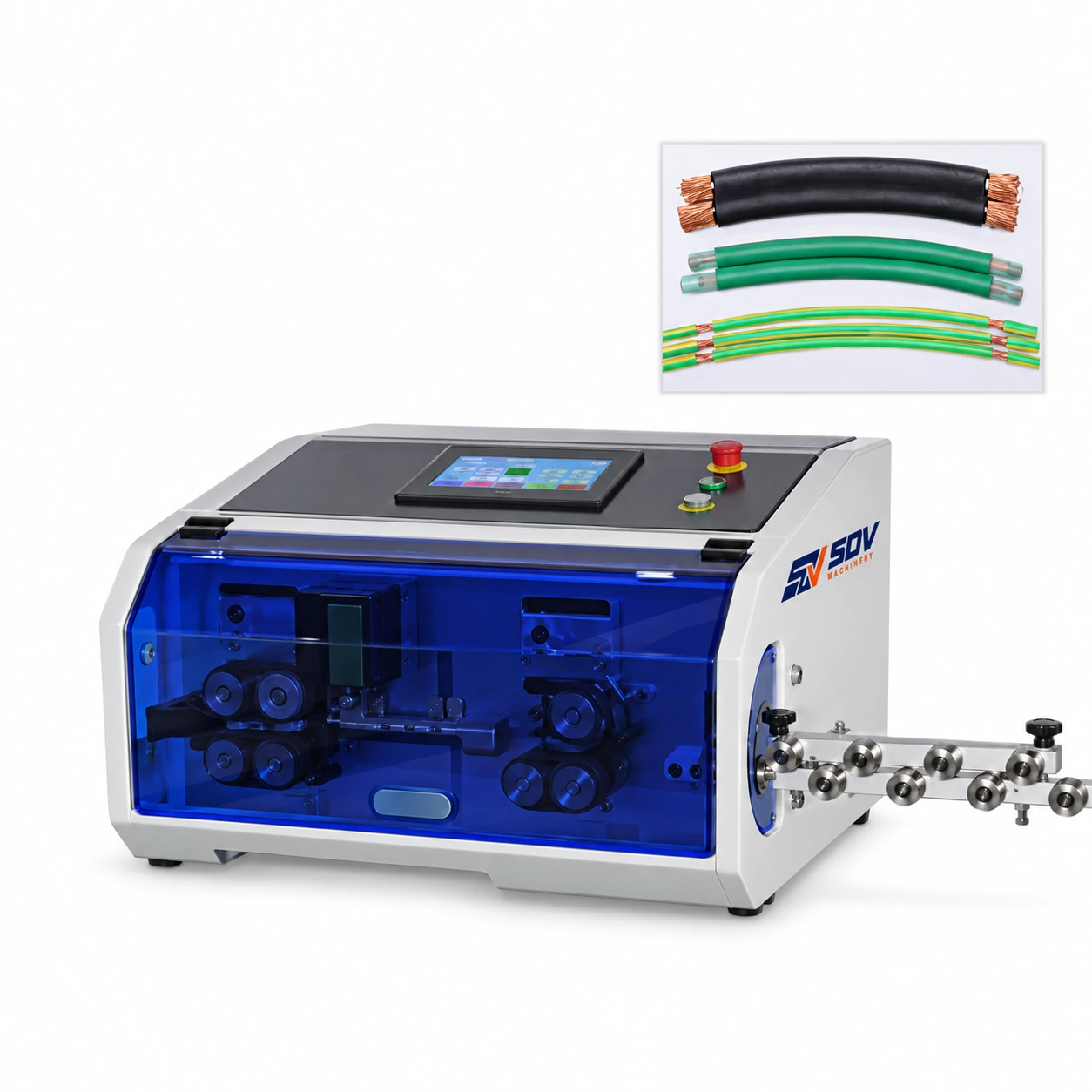

Shielded control cables (1.5–16mm², braided or foil shield) used in CNC machinery, industrial robots, and servo drive wiring require 3-layer end preparation before connector assembly. The EW-05A's dedicated 3-layer program handles the specific strip length combination — outer jacket long, shield fold-back medium, inner insulation short — required for EMC-rated circular connector termination in a single automated cycle.
Defence and aerospace wire harness processing
MIL-SPEC shielded cables used in avionics and defence electronics typically require outer jacket strip lengths of 100–250mm for backshell and braid fold-back dimensions specified in MIL-C-38999 and ARINC 600 connector standards. The EW-05A's 250mm Side I maximum strip length and 8-roller no-mark feed directly address this requirement, which shorter-stroke cable strippers cannot accommodate without repositioning the cable mid-process.
Medical equipment cable assembly
Shielded cables for imaging equipment, patient monitoring leads, and surgical device power supplies require nick-free inner conductor stripping at consistent depths. The belt-type 8-roller drive maintains the zero-compression-mark surface quality specified in IEC 60601-1 cable assembly guidelines for medical device wiring where jacket surface integrity is part of the finished product inspection.
ICT and data centre cable preparation
Cat6A and Cat7 shielded twisted pair (STP/SFTP) cables, shielded coaxial bundles, and screened multicore cables used in structured cabling and data centre infrastructure require outer foil or braid shield preparation alongside conductor stripping. The EW-05A's 3-layer capability covers the shield preparation steps specified for ANSI/TIA-568 Category 6A and ISO/IEC 11801 Class FA shielded cabling terminations.
EV motor and power electronics shielded cable processing
Shielded cables for EV motor drives, inverter signal wiring, and ADAS sensor connections use braided and foil shield constructions in the 1.5–35mm² range where both shield continuity and inner conductor strip length are dimensional quality parameters. The EW-05A's programmable 3-layer stripping handles these specifications without per-job mechanical setup changes.
Feature ● Wire cutting, single (or double) end stripping, single (or double) end crimping, single end insertion of heat-shrink tub and heating, single end sleeve inserting machine ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Functions: Wire cutting, single/double-ended stripping, single/double/parallel-ended crimping, single/double/parallel heat-shrink tubing application. ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Equipped with high-precision servo motors for cutting and stripping mechanisms, the system delivers exceptional accuracy and consistency in wire processing operations. The positive and negative screw structure cutting blade ensures precise stripping results, while the robust ductile iron crimping mechanism provides stable crimping height and superior rigidity for reliable terminal connections. ● Featuring an intuitive color touchscreen interface with comprehensive program memory functions, the machine enables rapid product changeover through one-key parameter recall. The modular design allows individual function modules to be activated or deactivated as needed, maximizing production flexibility and equipment utilization across different product lines and manufacturing requirements.
Feature ● Maximum Rubber Sleeve Size: Diameter 30mm, Thickness 20mm, Square 30*30*20mm. ● Production Efficiency: Average 5 seconds/hole, slight differences may occur due to thread length and plastic shell positioning. ● Needle assembly changeover: 3 minutes; tube assembly changeover: 3 minutes; claw assembly changeover: 9 minutes. ● High production efficiency, saving 2-5 people and reducing manual labor intensity. ● High equipment compatibility; can achieve threading of various rubber sleeves through changeover, changeover time 15 minutes. ● High safety performance; multi-step, two-hand start-up. ● One-button switching between single and two rubber sleeve functions (customizable).
