Feature
● Heavy-Duty Multi-Core Processing (0.75–30 mm² / 2–10 Cores): Efficiently cuts, strips, and twists large cross-section multi-conductor jacketed cables and single wires up to 30 mm² without manual prep.
● 16-Roller Belt Drive System (Zero Scratch Mark Guarantee): Advanced belt feeding with 16 synchronized rollers distributes pressure evenly, delivering high feeding force without pinching or scratching soft insulation jackets.
● Integrated Core Wire Twisting Unit (120 mm Twist Stroke): Automatically pulls off inner core insulation and tightly twists exposed copper strands across a stroke up to 120 mm, preventing frayed wire ends before soldering or crimping.
● Digital PLC Touchscreen Roller Gap Control: Roller gaps and drive pressures adjust automatically through the 7-inch touchscreen interface, eliminating manual mechanical hand-wheel adjustments during batch changeovers.
● High-Precision Servo Cutting & Uni-V/Flat Blades: High-torque servo drive paired with imported high-speed steel (HSS) Uni-V jacket blades and Uni-flat core blades ensures repeatable cutting accuracy (< 0.002 * L).
● Flexible Modular Expansion: Supports optional add-ons including motorized wire pre-feeders, middle/window stripping modules, conveyor stackers, wire coilers, ink-jet printers, and Industrial Control Systems (ICS).
Application Range

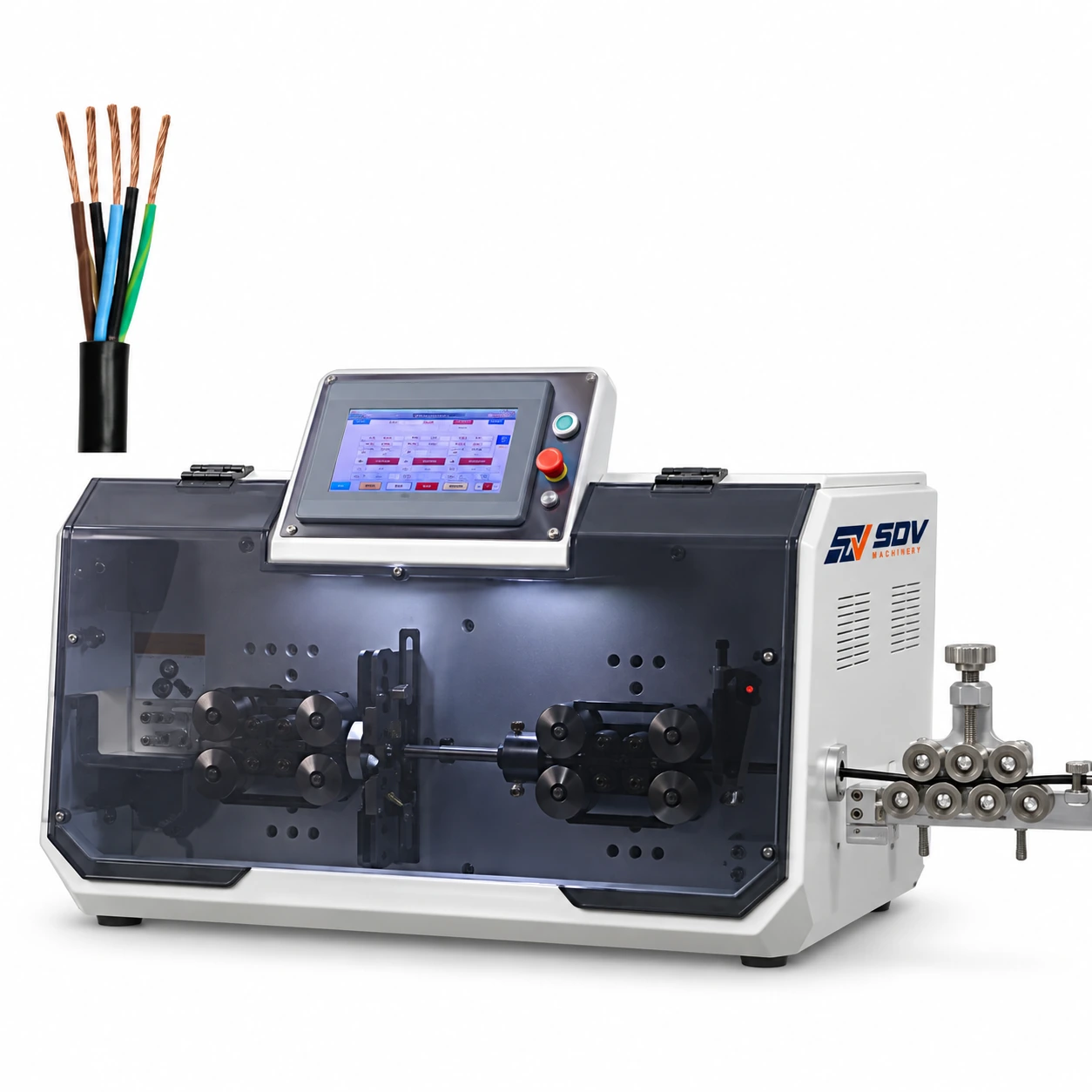

The EW-05F+T multi-conductor cable cut, strip and twist machine is deployed across industries where high-volume, multi-core cable end preparation demands consistent quality and throughput:
Industrial control & automation wiring — Processes the 4–12 core control cables (0.75–2.5mm² per core) used in PLC panel wiring, servo drive cabling, and industrial robot arm harnesses, where clean, twisted conductor ends are required for push-in terminal block or ferrule termination.
Automotive wire harness manufacturing — Handles the sheathed multi-conductor cables used in door modules, seat wiring, instrument cluster harnesses, and EV BMS communication cables, supporting Tier 1 and Tier 2 production lines with flexible length programming to accommodate model-specific cut lists.
Building automation & elevator systems — Suited for the multi-conductor signal and power cables used in lift control wiring, fire alarm loops, and access control systems, where consistent strip lengths and twisted copper ends are required for screw-terminal or IDC connector termination.
Renewable energy & solar installations — Processes the multi-core DC string cables and monitoring cables used in utility-scale solar PV installations, where field-preparation consistency and high volume throughput reduce installation labor costs.
Appliance & consumer electronics manufacturing — Handles the flexible PVC multi-core power and signal cables used in white goods (washing machines, HVAC units, dishwashers) where consistent end preparation enables automated insertion into PCB connector housings at assembly line speed.
