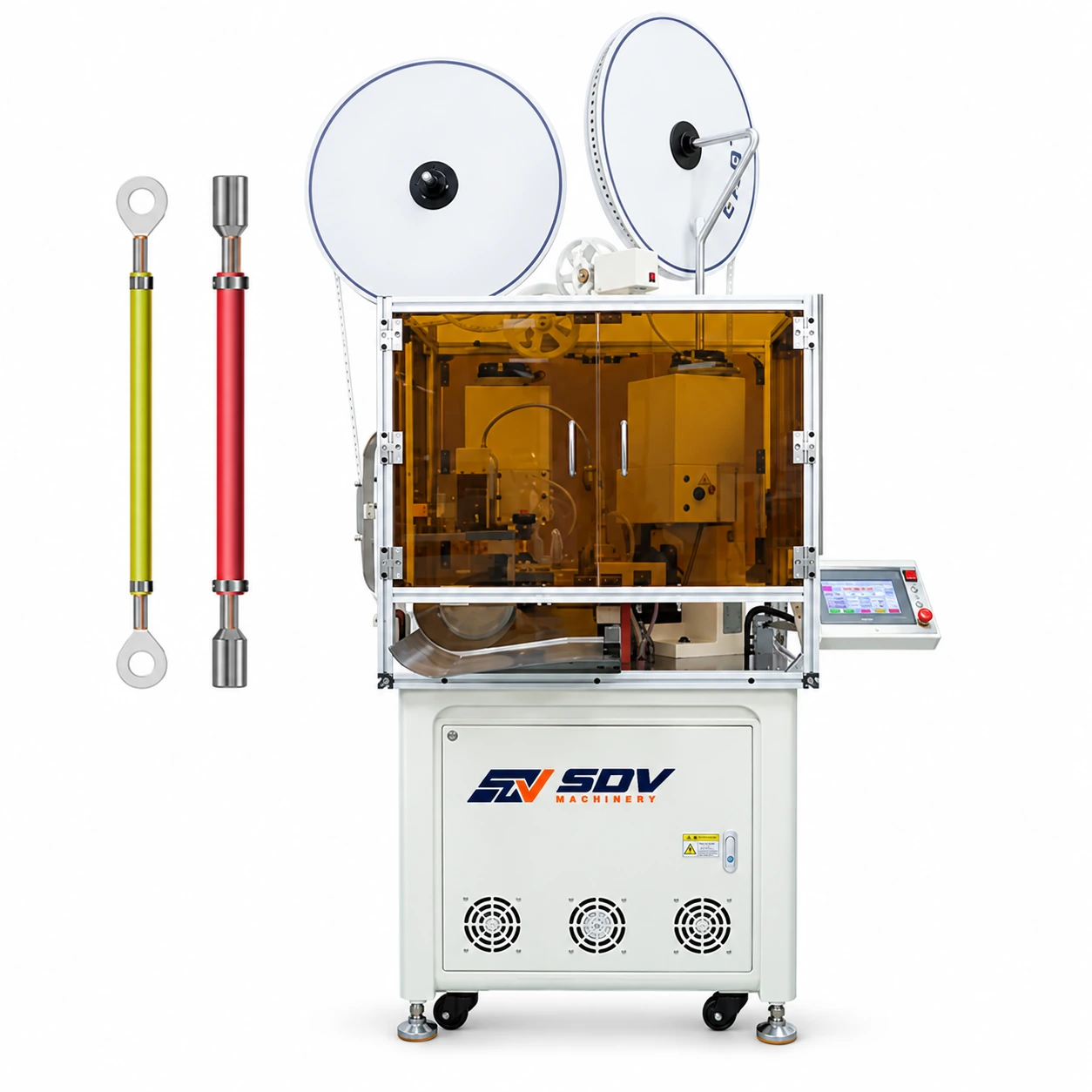

Feature
● Versatile AWG 28 to AWG 12 Processing: Handles everything from micro-control wires to thick power supply lines on a single machine, saving factory floor space and reducing capital expenditure.
● Highly Flexible Applicator Support: Easily accepts universal or mini-style crimping applicators with either 30mm or 40mm stroke designs, supporting both side-feed and rear-feed open barrel terminals.
● Smart Program Recipe Storage: Saves custom wire profiles under dedicated program numbers. Operators can instantly call up previously calibrated setups, cutting batch changeover times to zero.
● Ultra-Stable 2.0T Press Core: Delivers a balanced, repeatable two-ton crimping force supported by a robust 358 KG vibration-dampening chassis, guaranteeing high wire-pull test success rates.
● Optional Crimping Force Monitor (CFM): Can be retrofitted with an active crimp force analyzer to catch micro-defects, void crimps, or missing wire strands in real time.
Application Range
● Household Appliances & White Goods: Rapidly produces dual-ended internal wiring looms and power jumper cables for refrigerators, air conditioners, and washing machines.
● Automotive Sub-System Circuits: Fabricates low-voltage interior harness leads, dashboard switches, and fuse box terminal links.
● Industrial Control Panel Assemblies: Prepares high-volume grounding leads and point-to-point electrical cabinet jumpers.
Feature ● Wire cutting, single (or double) end stripping, single (or double) end crimping, single end insertion of heat-shrink tub and heating, single end sleeve inserting machine ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Functions: Wire cutting, single/double-ended stripping, single/double/parallel-ended crimping, single/double/parallel heat-shrink tubing application. ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Equipped with high-precision servo motors for cutting and stripping mechanisms, the system delivers exceptional accuracy and consistency in wire processing operations. The positive and negative screw structure cutting blade ensures precise stripping results, while the robust ductile iron crimping mechanism provides stable crimping height and superior rigidity for reliable terminal connections. ● Featuring an intuitive color touchscreen interface with comprehensive program memory functions, the machine enables rapid product changeover through one-key parameter recall. The modular design allows individual function modules to be activated or deactivated as needed, maximizing production flexibility and equipment utilization across different product lines and manufacturing requirements.
Feature ● Maximum Rubber Sleeve Size: Diameter 30mm, Thickness 20mm, Square 30*30*20mm. ● Production Efficiency: Average 5 seconds/hole, slight differences may occur due to thread length and plastic shell positioning. ● Needle assembly changeover: 3 minutes; tube assembly changeover: 3 minutes; claw assembly changeover: 9 minutes. ● High production efficiency, saving 2-5 people and reducing manual labor intensity. ● High equipment compatibility; can achieve threading of various rubber sleeves through changeover, changeover time 15 minutes. ● High safety performance; multi-step, two-hand start-up. ● One-button switching between single and two rubber sleeve functions (customizable).
