Feature

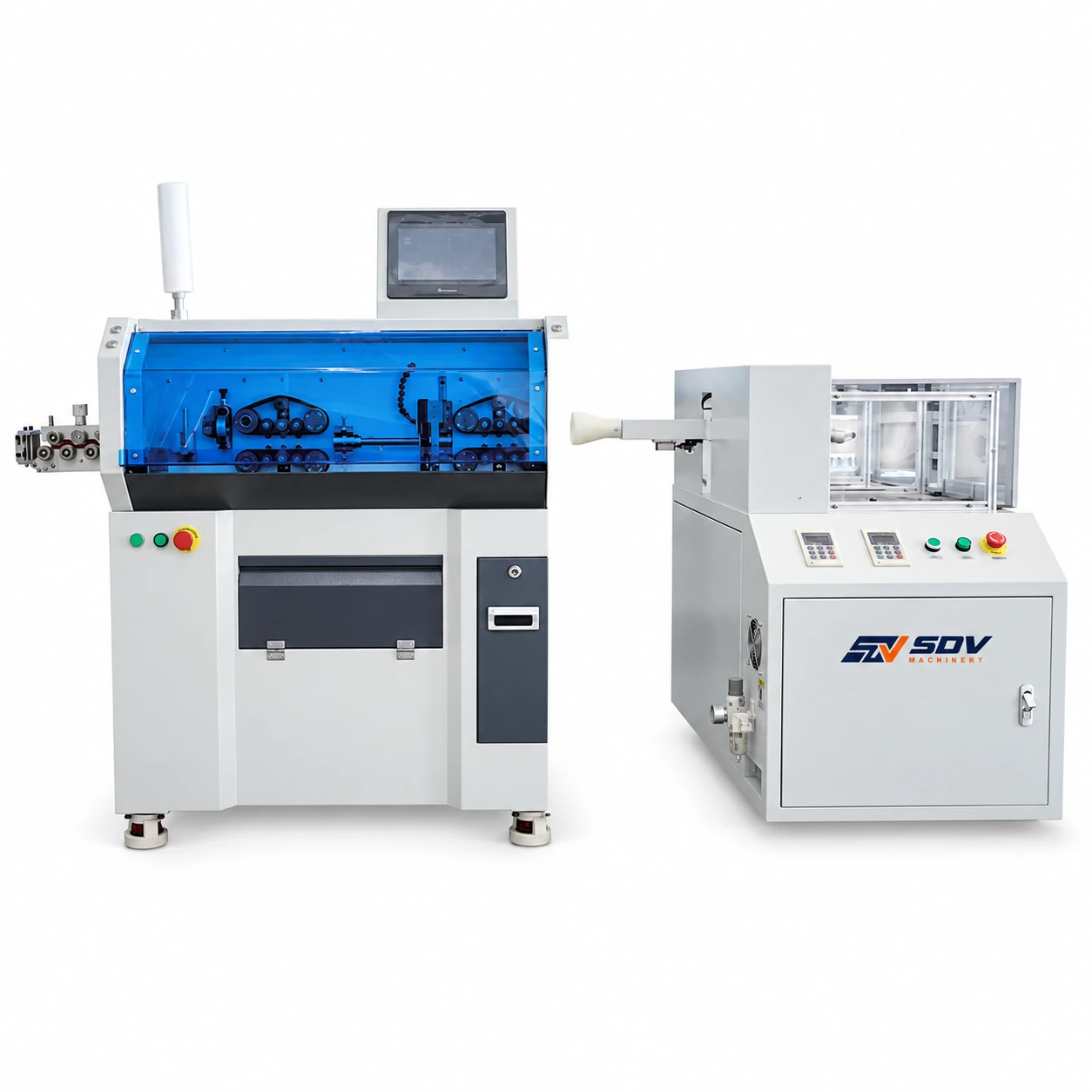

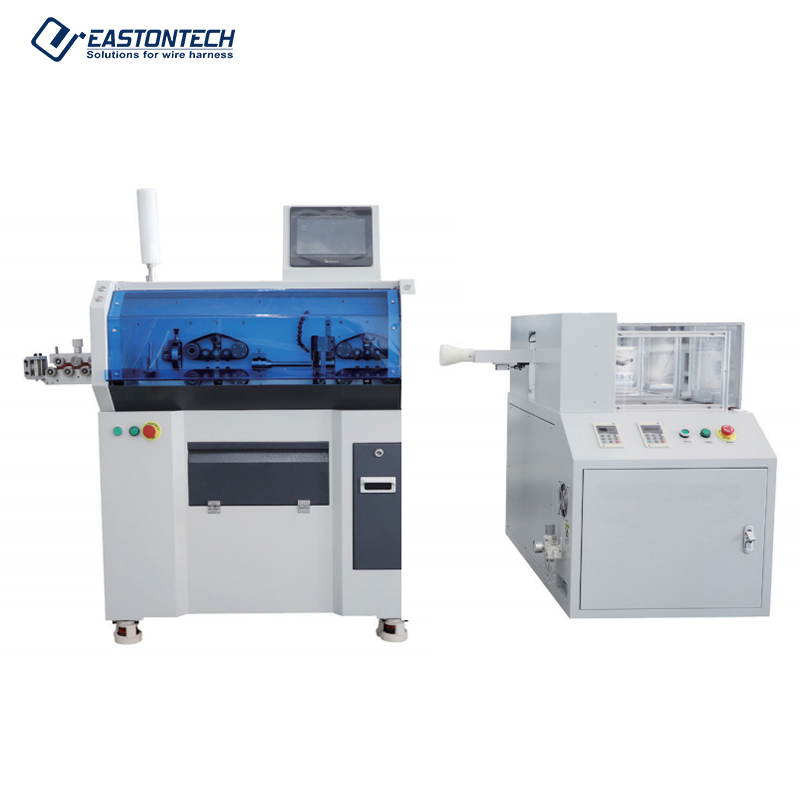

● 8-Wheel Independent Belt Drive (Scratch-Free Traction): Features an 8-wheel synchronized belt feeding mechanism that provides a large surface contact area. Exerts high pulling force on heavy round and flat cables with zero surface indentation, crushing, or jacket marking.
● Dual Outer Jacket & Core Wire Stripping: Performs automatic tail cutting, outer sheath peeling (head up to 200 mm, tail up to 100 mm), and inner core wire stripping (head/tail up to 30 mm) across 1 to 5 inner conductors.
● 6-Layer Stripping & Intermediate Peeling Capability: Powered by a high-precision servo blade module capable of processing up to 6 distinct insulation layers, including intermediate jacket window peeling along the cable length.
● Servo Control with 100 Program Memory: Driven by high-subdivision servo motors and a motion controller storing up to 100 complete job programs for instant product changeovers and tight cutting length tolerances within ±(0.2 + 0.002 × L) mm.
● 10-Inch Touch Screen HMI & Expandable Ports: User-friendly 10-inch color touch interface with seamless Chinese/English switching. Built with reserved I/O interface ports to integrate auxiliary wire pre-feeders, conveyor belts, robotic manipulators, and automatic coiling/winding units.
Application Range
● Power Supply & Cord Set Manufacturing: High-speed automatic stripping and length cutting for 2-core and 3-core rubber and PVC AC/DC power cables.
● Industrial Control & Automation Harnesses: Multi-core shielded control cables requiring outer sheath removal and individual inner conductor stripping.
● Automotive & Commercial Vehicle Wiring: Processing heavy-duty round and flat multi-conductor sheathed cables for trucks, buses, and agricultural machinery.
● Home Appliance & HVAC Wiring: Precision fixed-length cutting, outer peeling, and inner stripping of multi-core appliance connecting leads.
Feature ● Wire cutting, single (or double) end stripping, single (or double) end crimping, single end insertion of heat-shrink tub and heating, single end sleeve inserting machine ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Functions: Wire cutting, single/double-ended stripping, single/double/parallel-ended crimping, single/double/parallel heat-shrink tubing application. ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Equipped with high-precision servo motors for cutting and stripping mechanisms, the system delivers exceptional accuracy and consistency in wire processing operations. The positive and negative screw structure cutting blade ensures precise stripping results, while the robust ductile iron crimping mechanism provides stable crimping height and superior rigidity for reliable terminal connections. ● Featuring an intuitive color touchscreen interface with comprehensive program memory functions, the machine enables rapid product changeover through one-key parameter recall. The modular design allows individual function modules to be activated or deactivated as needed, maximizing production flexibility and equipment utilization across different product lines and manufacturing requirements.
Feature ● Maximum Rubber Sleeve Size: Diameter 30mm, Thickness 20mm, Square 30*30*20mm. ● Production Efficiency: Average 5 seconds/hole, slight differences may occur due to thread length and plastic shell positioning. ● Needle assembly changeover: 3 minutes; tube assembly changeover: 3 minutes; claw assembly changeover: 9 minutes. ● High production efficiency, saving 2-5 people and reducing manual labor intensity. ● High equipment compatibility; can achieve threading of various rubber sleeves through changeover, changeover time 15 minutes. ● High safety performance; multi-step, two-hand start-up. ● One-button switching between single and two rubber sleeve functions (customizable).
