Feature

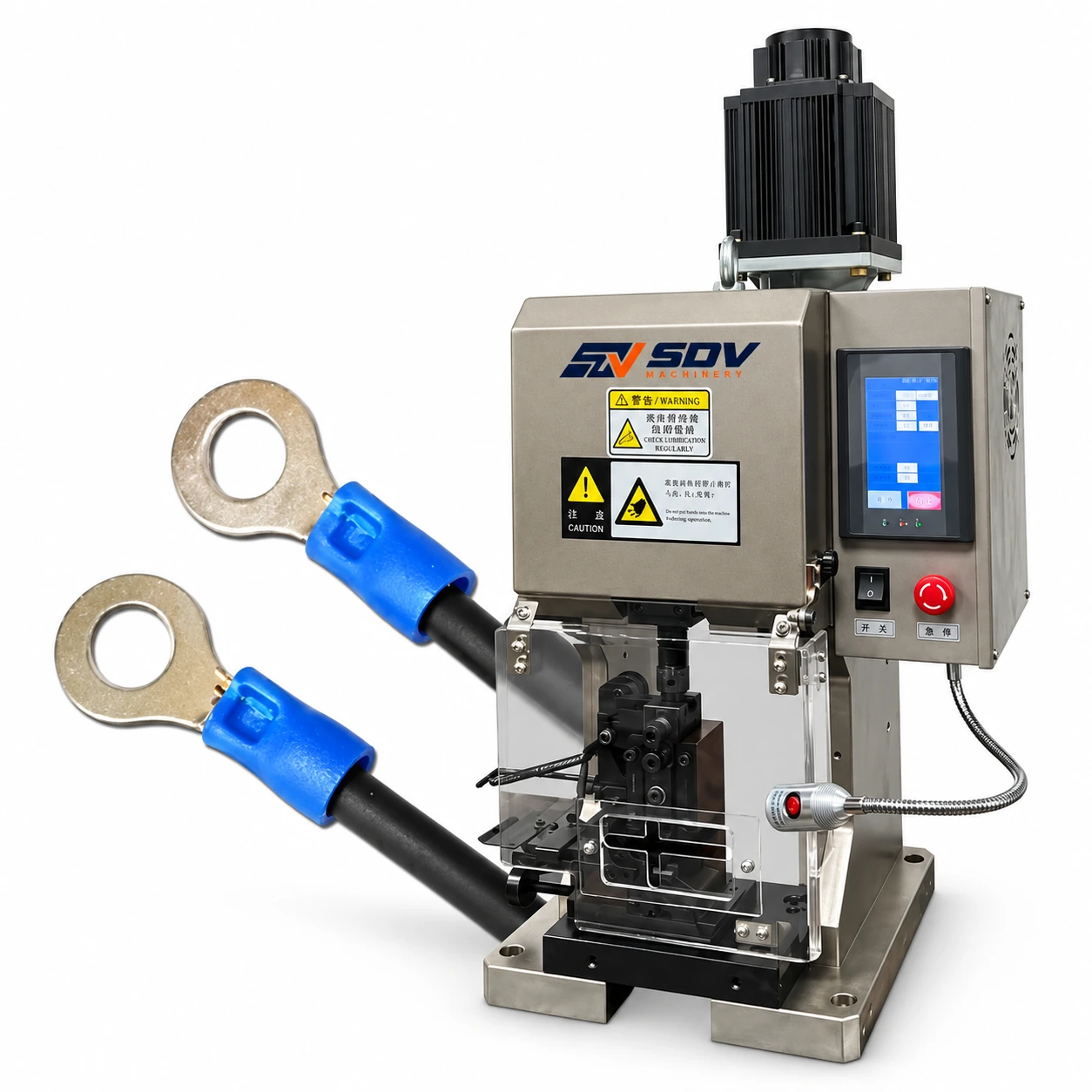

● Direct-Drive Servo Energy Savings: The precision servo motor activates solely during the crimping stroke, consuming zero idle power and significantly reducing workshop ambient noise compared to traditional flywheel presses.
● Micro-Metric Shut Height Precision (0.03 mm): Features continuous closed height adjustment with 0.03 mm fine-tuning resolution, allowing operators to achieve exact crimp height specifications for pull-force compliance.
● Universal Applicator & Mold Compatibility: Engineered to accept standard OTP side-feed, rear-feed, and European-style applicator dies, enabling fast tool changes and minimal setup downtime.
● Multi-Tonnage Heavy-Duty Range (2T to 8T): Offers four scalable force options (20 kN, 30 kN, 40 kN, and 80 kN) to handle everything from delicate signal terminals to thick automotive battery lugs.
● Simplified Mechanical Transmission: Direct servo drive eliminates complex mechanical clutches, flywheels, and wear-prone belts for high operational reliability and low maintenance costs.
Application Range
● Automotive & EV Wire Harnesses: Heavy-duty terminal crimping for battery connections, high-voltage interlocks, charging gun leads, and sensor lines (3T, 4T, 8T models).
● Consumer Appliances & Power Cord Assembly: High-speed crimping of open-barrel, closed-barrel, disconnects, and spade terminals for home electronics (2T, 3T models).
● Industrial Control Cabinets & Power Distribution: Precision crimping for heavy copper lugs, ferrules, and ring terminals on control wires.
● Electronics Contract Manufacturing (EMS): High-repeatability benchtop crimping station for diverse wire-to-board and wire-to-wire connector series.
Feature ● Wire cutting, single (or double) end stripping, single (or double) end crimping, single end insertion of heat-shrink tub and heating, single end sleeve inserting machine ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Functions: Wire cutting, single/double-ended stripping, single/double/parallel-ended crimping, single/double/parallel heat-shrink tubing application. ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Equipped with high-precision servo motors for cutting and stripping mechanisms, the system delivers exceptional accuracy and consistency in wire processing operations. The positive and negative screw structure cutting blade ensures precise stripping results, while the robust ductile iron crimping mechanism provides stable crimping height and superior rigidity for reliable terminal connections. ● Featuring an intuitive color touchscreen interface with comprehensive program memory functions, the machine enables rapid product changeover through one-key parameter recall. The modular design allows individual function modules to be activated or deactivated as needed, maximizing production flexibility and equipment utilization across different product lines and manufacturing requirements.
Feature ● Maximum Rubber Sleeve Size: Diameter 30mm, Thickness 20mm, Square 30*30*20mm. ● Production Efficiency: Average 5 seconds/hole, slight differences may occur due to thread length and plastic shell positioning. ● Needle assembly changeover: 3 minutes; tube assembly changeover: 3 minutes; claw assembly changeover: 9 minutes. ● High production efficiency, saving 2-5 people and reducing manual labor intensity. ● High equipment compatibility; can achieve threading of various rubber sleeves through changeover, changeover time 15 minutes. ● High safety performance; multi-step, two-hand start-up. ● One-button switching between single and two rubber sleeve functions (customizable).
