Feature

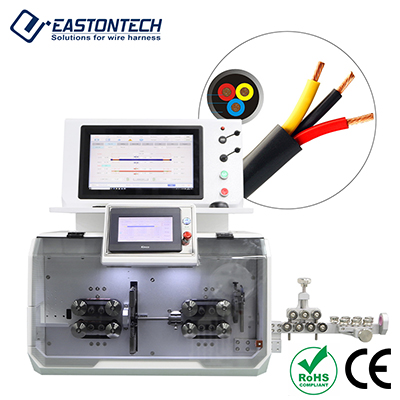

● Simultaneous Outer Jacket & Core Wire Stripping (EW-05F+S): Strips the outer cable jacket and automatically strips up to 10 internal core wires in a single automated cycle—eliminating secondary manual benchtop stripping.
● Scratch-Free Belt Feed Traction: Features a 16-roller belt feeding architecture that evenly distributes clamping force, guaranteeing high feeding traction without leaving pressure marks or surface scratches on soft cable jackets.
● Touchscreen Motorized Roller Gap Control: Roller clearance and clamping pressure are set digitally on the 7-inch color PLC touchscreen. Eliminates manual handwheel adjustments during wire changeovers.
● Precision Hybrid Servo Drive: Driven by hybrid servo actuators and servo tool holders, delivering exact cut lengths up to 999,999.9 mm with a tight tolerance of < 0.002 × L.
● Uni-V High-Speed Steel Blade System: Uses durable imported High-Speed Steel (HSS) Uni-V blades for crisp outer sheath cuts, with optional radius blades available for specialty shielding and tough insulation materials.
● Modular Automated Line Expansion: Easily upgraded with optional pre-feeders, middle-strip (window strip) modules, core wire twisters, motorized coilers, conveyor stackers, inline inkjet printers, and Industrial Control Systems (ICS).
Application Range
● Automotive & Commercial Vehicle Harnesses: High-speed jacket and core stripping for multi-conductor sensor cables, trailer lighting harnesses, and ABS control lines.
● Industrial Automation & Robotics: Rapid processing of multi-core flex cables, drag-chain wires, and control cabinet interconnects up to 10 cores.
● Power Distribution & Renewable Energy: Stripping multi-conductor rubber/PUR insulated cables for solar junction boxes, power invertors, and industrial switchgear.
● Appliance & Consumer Machinery: Mass processing of multi-core power supply cords for commercial appliances and HVAC units.
