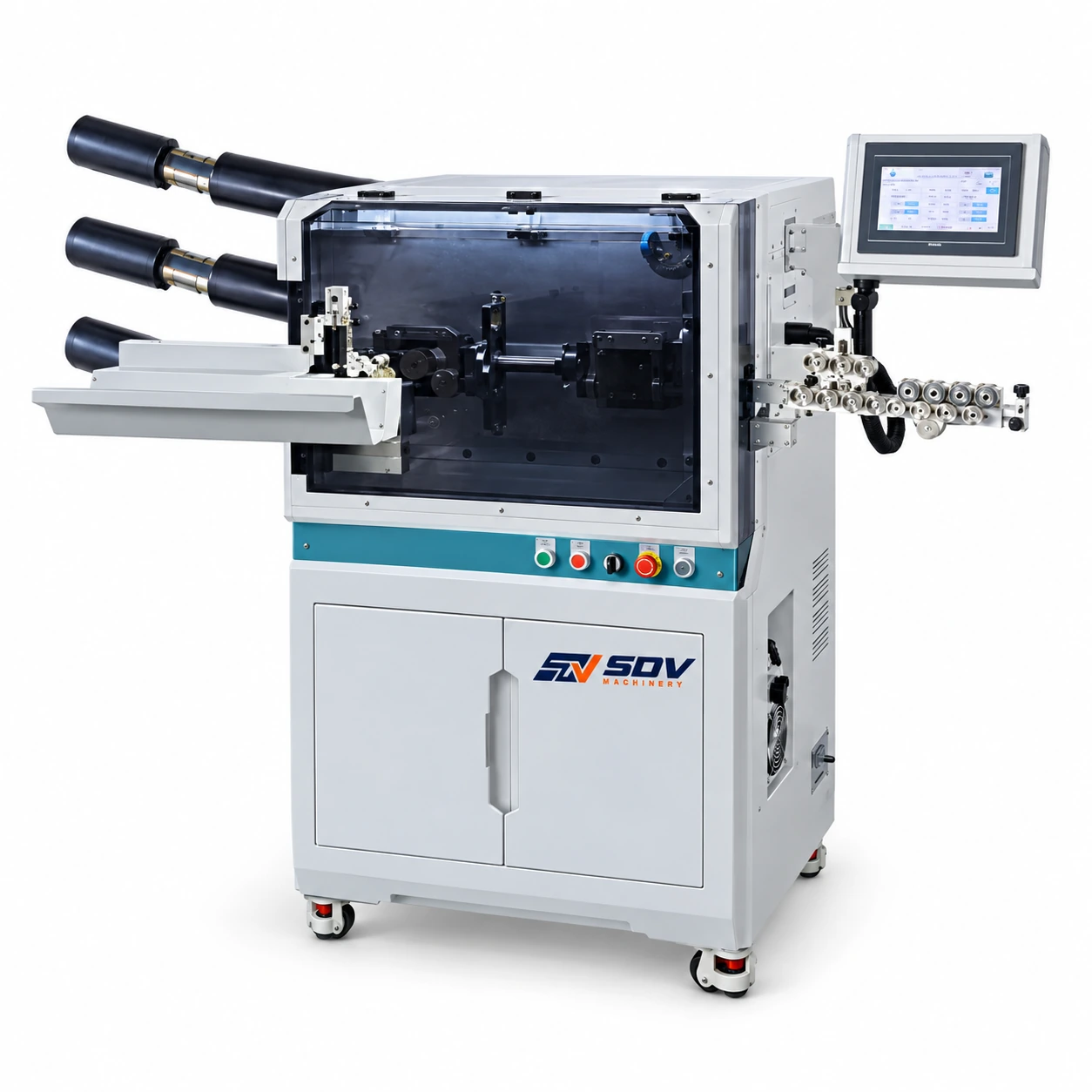

Feature
● 16-Wheel Belt Feed Drive System: Uses heavy-duty rubber belts to distribute feeding force over a wider contact surface, eliminating roller pressure marks, indentations, and cable slippage on soft PVC, PUR, or rubber jackets.
● Multi-Core Sheath Processing (Up to 11 Cores): Engineered for complex multi-conductor cables up to 30 mm² and 18 mm OD. Features Uni-V jacket stripping blades and Uni-flat core wire blades to strip outer jackets cleanly without nicking internal wire insulation.
● Touchscreen Automatic Roller Gap Setting: Roller clearance and pressure settings are programmed digitally on the 7-inch color touchscreen. Replaces manual handwheel adjustments, allowing instant, repeatable recall during wire changeovers.
● Servo Tool Holder & High-Precision Cutting: Powered by a hybrid servo motor and servo-driven cutter head, achieving tight length tolerances of < 0.002 × L with high-speed steel (HSS) blades.
● Extended Jacket Stripping Capacities: Accommodates full jacket strips up to 200 mm and half-strips up to 1,000 mm on Side I, making it ideal for long break-out lengths in industrial control cabinets.
● Modular Line Integration Upgrades: Expandable with optional add-on modules including wire pre-feeders, middle-strip (window strip) units, wire twisters, motorized coilers, conveyor stackers, and inline inkjet printing systems.
Application Range
● Automotive & EV Heavy Cable Assembly: Cutting and long-length jacket stripping for EV battery pack leads, charging pile cables, and high-voltage power distribution lines.
● Industrial Machinery & Robotics Harnesses: Processing multi-conductor flex cables, drag-chain wires, and industrial control cabinet assemblies up to 11 cores.
● Building & Renewable Energy Systems: Processing heavy PVC/PUR sheathed cables for solar inverter junction boxes, wind power control systems, and main power distribution panels.
● Commercial Appliance Wiring: High-throughput jacket stripping for multi-core power cords used in commercial HVAC, food service, and heavy industrial equipment.
