Feature

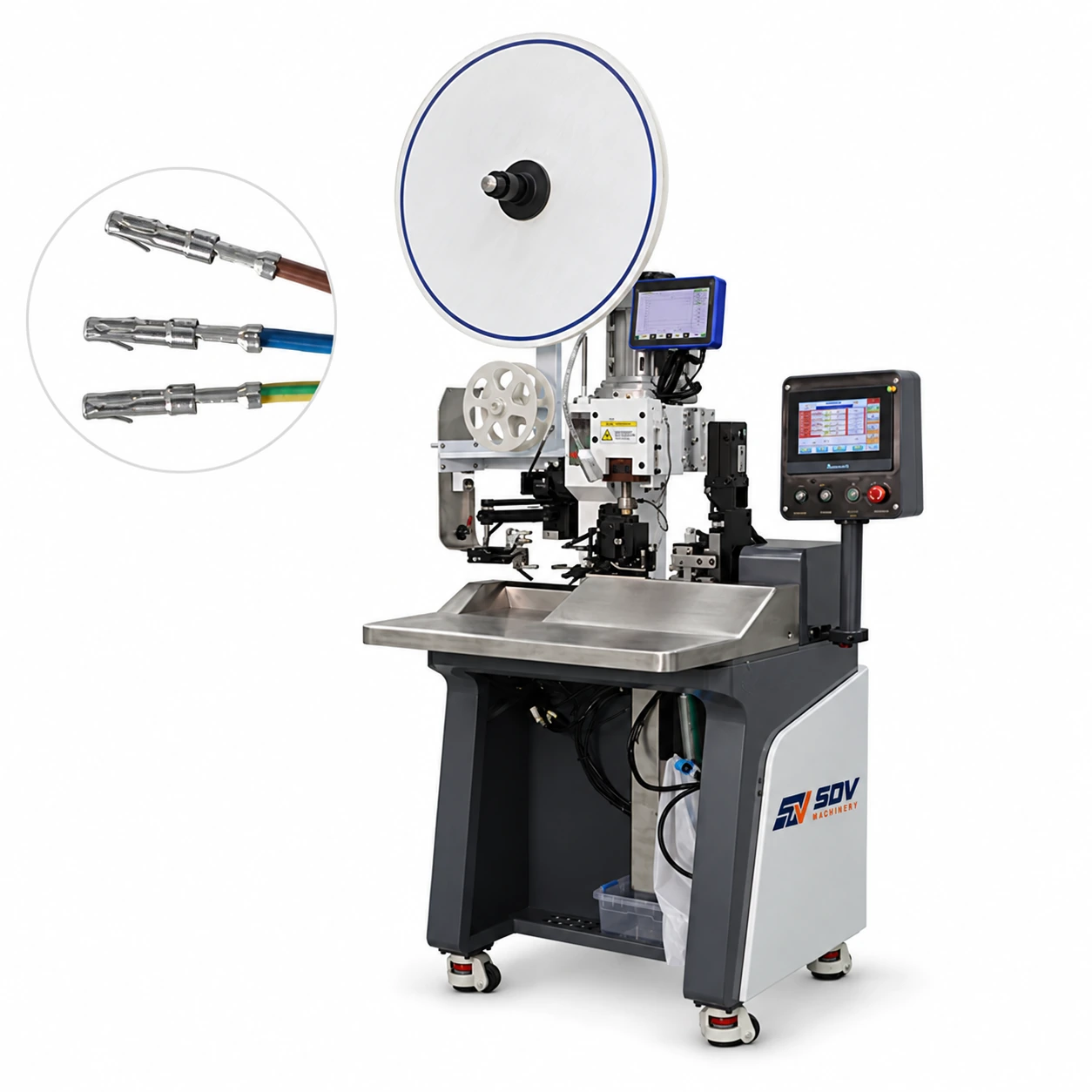

● Continuous Multi-Core Cable Processing
Automatically performs stripping and terminal crimping for multi-core sheathed cables, reducing manual handling throughout production.
● Servo-Driven Precision Control
Servo motors and precision screw drives provide stable positioning and consistent crimping quality with stripping accuracy of 0.05–0.1mm.
● Supports Up to 12-Core Cables
Processes common industrial cables including AV, AVS, AVSS, CAVUS, KV, KIV, UL, and IV cable types with up to 12 cores.
● High-Quality 2T Terminal Crimping
The integrated 2-ton crimping system delivers reliable terminal connections suitable for continuous wire harness production.
● Compact Industrial Design
The compact footprint combines automated stripping and crimping into one workstation, making it suitable for production lines with limited space.
Application Range

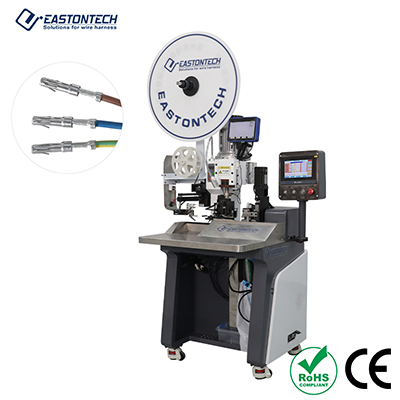

The EW-5380 is designed for manufacturers requiring continuous stripping and terminal crimping for multi-core cable assemblies with consistent processing quality.
● Automotive Wire Harness Manufacturing: Processes multi-core cables used in vehicle wiring assemblies requiring accurate stripping and terminal crimping.
● Industrial Control Cable Production: Suitable for control cables used in PLC systems, automation equipment, and electrical cabinets.
● Electrical Equipment Manufacturing: Produces connector-ready cables for electrical devices and industrial machinery.
● Communication Cable Assembly: Handles multi-core signal cables requiring consistent conductor preparation and crimping.
● OEM Cable Processing: Supports continuous production of customized multi-core cable assemblies across different industrial applications.
Feature ● Wire cutting, single (or double) end stripping, single (or double) end crimping, single end insertion of heat-shrink tub and heating, single end sleeve inserting machine ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Functions: Wire cutting, single/double-ended stripping, single/double/parallel-ended crimping, single/double/parallel heat-shrink tubing application. ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Equipped with high-precision servo motors for cutting and stripping mechanisms, the system delivers exceptional accuracy and consistency in wire processing operations. The positive and negative screw structure cutting blade ensures precise stripping results, while the robust ductile iron crimping mechanism provides stable crimping height and superior rigidity for reliable terminal connections. ● Featuring an intuitive color touchscreen interface with comprehensive program memory functions, the machine enables rapid product changeover through one-key parameter recall. The modular design allows individual function modules to be activated or deactivated as needed, maximizing production flexibility and equipment utilization across different product lines and manufacturing requirements.
Feature ● Maximum Rubber Sleeve Size: Diameter 30mm, Thickness 20mm, Square 30*30*20mm. ● Production Efficiency: Average 5 seconds/hole, slight differences may occur due to thread length and plastic shell positioning. ● Needle assembly changeover: 3 minutes; tube assembly changeover: 3 minutes; claw assembly changeover: 9 minutes. ● High production efficiency, saving 2-5 people and reducing manual labor intensity. ● High equipment compatibility; can achieve threading of various rubber sleeves through changeover, changeover time 15 minutes. ● High safety performance; multi-step, two-hand start-up. ● One-button switching between single and two rubber sleeve functions (customizable).
