Feature

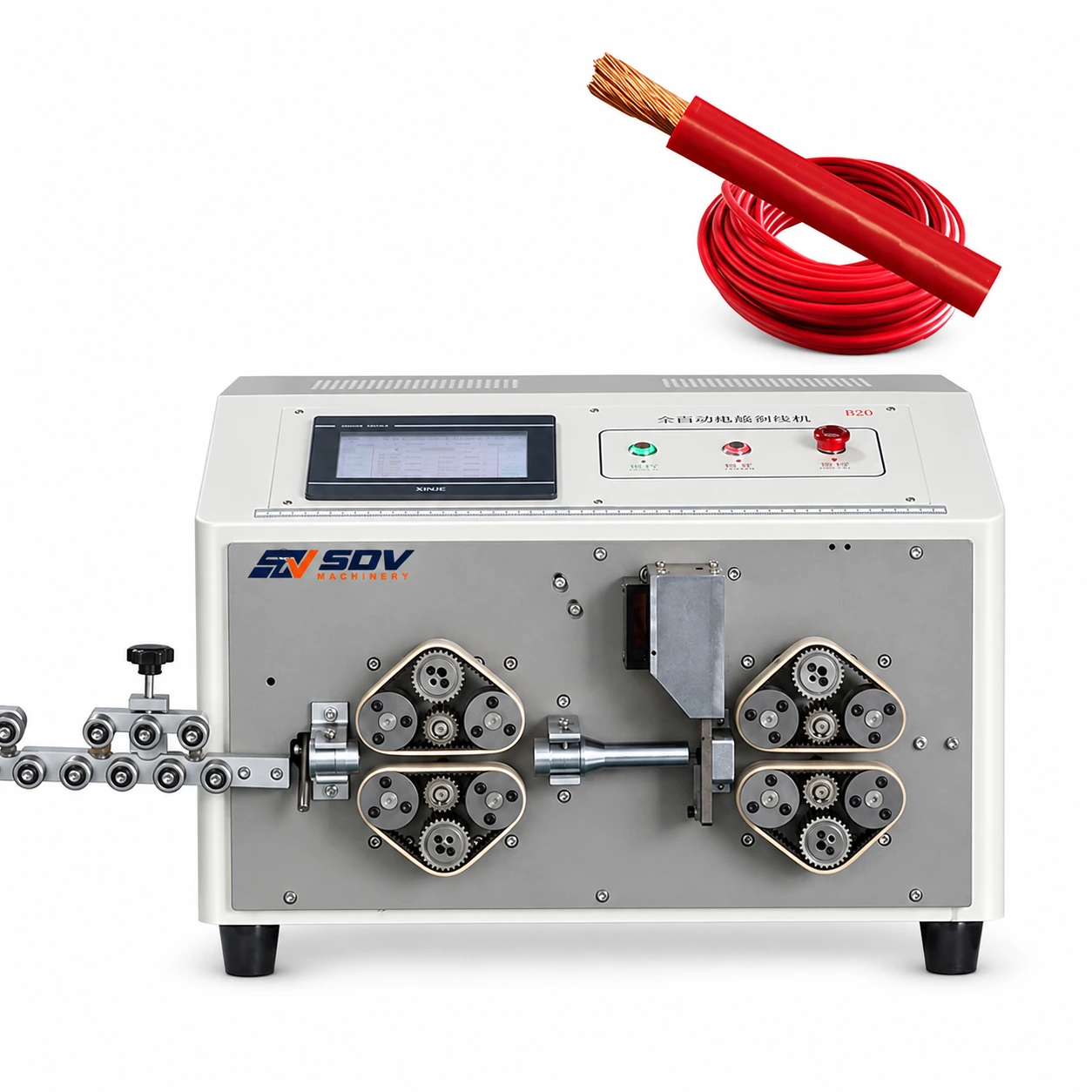

● High-Precision Belt-Driven Mechanism
Traditional roller-driven wire strippers can easily leave indentations or damage sensitive cable jackets. Our advanced belt-driven wire feeding system expands the contact surface area, distributing pressure evenly. This guarantees ultra-precise feeding and cutting without any slippage, scratching, or insulation deformation.
● Versatile Processing Range (2-25mm²)
Engineered for heavy-duty and medium-range industrial cables, this machine flawlessly handles wire cross-sections from 2mm² to 25mm². It supports multi-stage stripping, full stripping, and partial/half stripping, providing ultimate flexibility for complex wire harness production.
● Microcomputer Intelligent Control
Equipped with an intuitive LCD interface, operators can easily adjust cutting length, stripping length, diameter, and speed within seconds. The high-performance PLC control board ensures a length tolerance of less than ±(0.2+0.002*L)mm, drastically reducing material waste.
● Industrial-Grade Durability & Speed
Built with premium tungsten steel blades and an all-metal robust chassis, this heavy-duty cable wire stripping machine is designed for 24/7 continuous factory operation, maximizing your throughput and ROI.
Application Range
Applicable Wire & Cable Types
● Automotive Wires & EV Cables: Ideal for processing new energy vehicle charging cables and battery power lines.
● Industrial Power Cords: Multi-core shielded cables, PVC cables, Teflon wires, and silicone high-temperature wires.
● Power Cabinet & Switchboard Wiring: High-purity copper and aluminum wires within the $2-25\text{ mm}^2$ specification.
Target Industries We Serve
● Automotive Wire Harness Manufacturing
● Aerospace & Marine Electronics
● Home Appliance & Power Supply Production
● Control Cabinet & Industrial Automation Assembly
