Feature

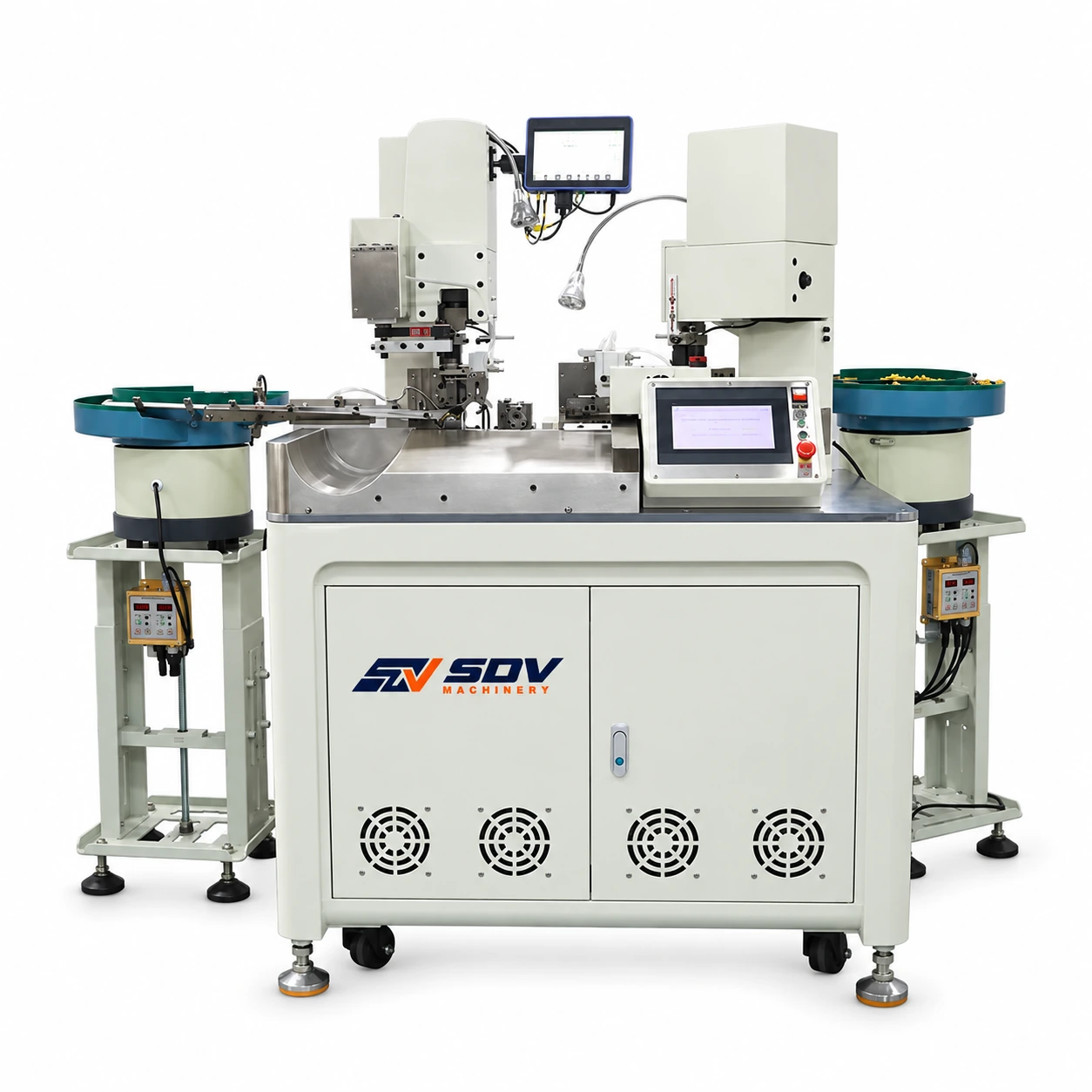

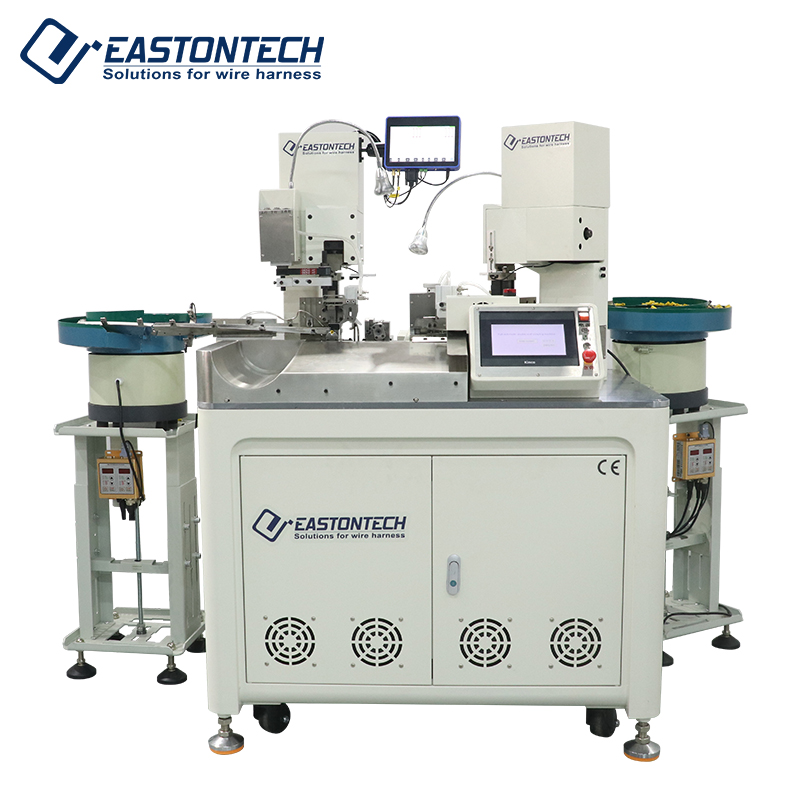

● This series is double-side automatic crimping machine for bulk terminals.
● The terminals are automatically fed through the vibrating plate.
● This machine can cut the wire to a fixed length, strip and twist the wire at both ends, and crimp the terminal. For the closed terminal, the function of rotating and twisting the wire can also be added.
● Twist the copper wire and then insert it into the inner hole of the terminal for crimpinq, which can effectively prevent the reverse wire phenomenon.
● The wire inlet is equipped with 3 sets of straighteners, which can automatically straighten the wire and improve the stability of the machine operation.
● Multiple sets of wire feeding wheels can jointly feed the wire to prevent the wire from slipping and improve the wire feeding accuracy.
● The terminal machine is integrally formed with nodular cast iron, the whole machine has strong rigidity and the crimping size is stable.
● The default crimping stroke is 30mm, and the standard OTP bayonet mold is used.
● ln addition, a model with a stroke of 40mm can also be customized, and various European molds can be used.
● lt can also be equipped with a terminal pressure monitor to monitor the pressure curve changes of each crimping process in real time, and automatically alarm and stop when the pressure is abnormal.
Feature ● Wire cutting, single (or double) end stripping, single (or double) end crimping, single end insertion of heat-shrink tub and heating, single end sleeve inserting machine ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Functions: Wire cutting, single/double-ended stripping, single/double/parallel-ended crimping, single/double/parallel heat-shrink tubing application. ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Equipped with high-precision servo motors for cutting and stripping mechanisms, the system delivers exceptional accuracy and consistency in wire processing operations. The positive and negative screw structure cutting blade ensures precise stripping results, while the robust ductile iron crimping mechanism provides stable crimping height and superior rigidity for reliable terminal connections. ● Featuring an intuitive color touchscreen interface with comprehensive program memory functions, the machine enables rapid product changeover through one-key parameter recall. The modular design allows individual function modules to be activated or deactivated as needed, maximizing production flexibility and equipment utilization across different product lines and manufacturing requirements.
Feature ● Maximum Rubber Sleeve Size: Diameter 30mm, Thickness 20mm, Square 30*30*20mm. ● Production Efficiency: Average 5 seconds/hole, slight differences may occur due to thread length and plastic shell positioning. ● Needle assembly changeover: 3 minutes; tube assembly changeover: 3 minutes; claw assembly changeover: 9 minutes. ● High production efficiency, saving 2-5 people and reducing manual labor intensity. ● High equipment compatibility; can achieve threading of various rubber sleeves through changeover, changeover time 15 minutes. ● High safety performance; multi-step, two-hand start-up. ● One-button switching between single and two rubber sleeve functions (customizable).
