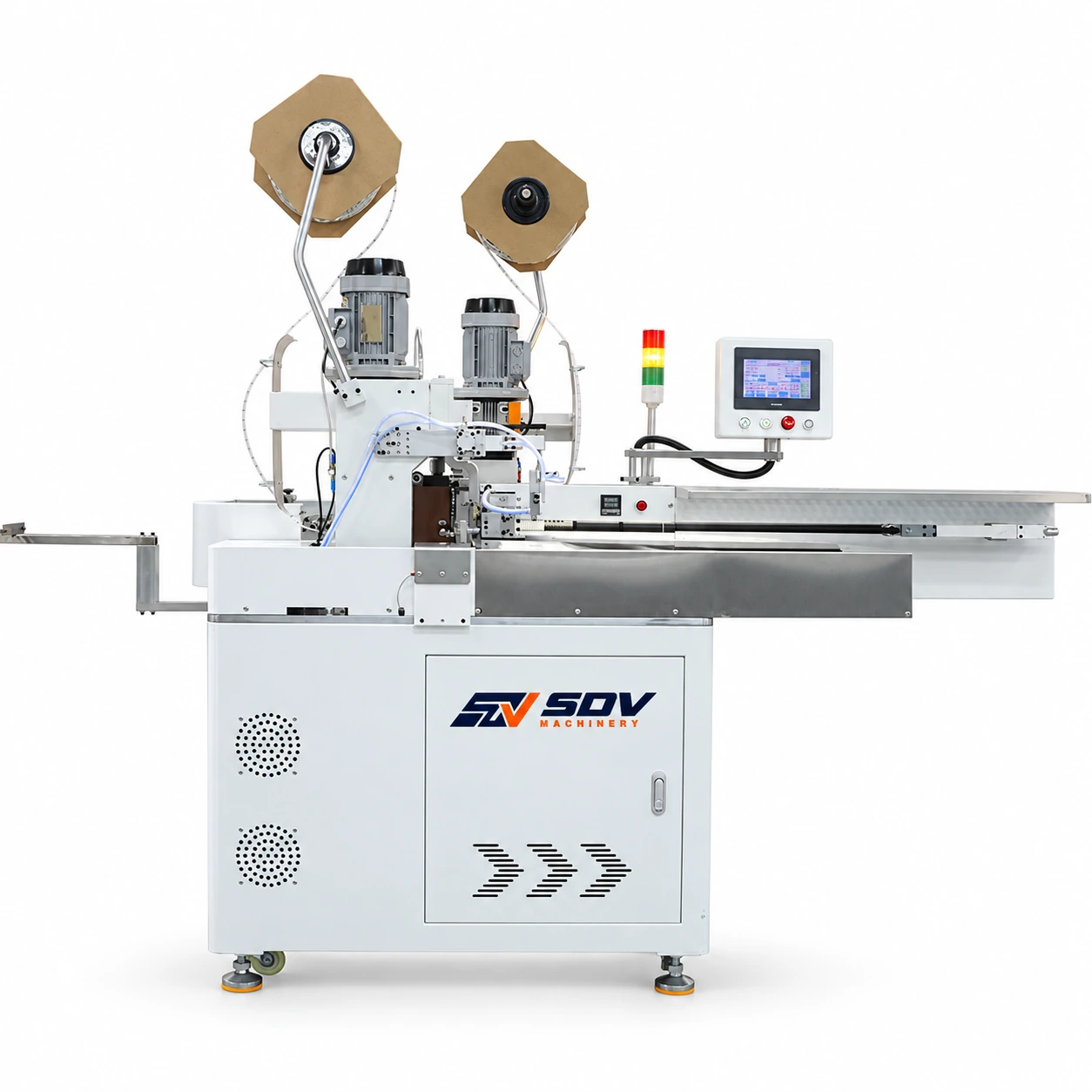

Feature
● High-Density Multi-Wire Parallel Processing: Masterfully handles the synchronization of 6, 8, or 10 parallel conductor lines simultaneously, cutting down handling stages for dense multi-circuit wire harnesses.
● Dual-Axis Servo Swing Arm Architecture: Both front and rear swing arm components are driven by high-torque independent servo networks, securing ultra-low mechanical noise, seamless tracking transitions, and extreme kinematic stability.
● Versatile Splicing Logic Interlock: Supports highly complex termination layouts, including full double-ended parallel crimping, single-ended group processing, or merging multiple internal lines securely into a single joint terminal.
● Full Digital Configuration Control: Complete operational control is localized onto a clear bilingual LCD touch screen. Conductor feeding speed, cutting length, strip profiles, and tool stroke delays can be updated instantly without physical hardware tear-downs.
● Interchangeable Stroke Tooling Mounts: Accommodates flexible factory floor configurations by accepting both 30mm and 40mm stroke standard pressing applicators depending on your active terminal line designs.
● Intelligent Error Shield Grid: Features immediate fail-safe stop sensors tracking empty wire run-out, facility low air pressure dips, and mechanical terminal feed misalignments.
Application Range
● Industrial Control Matrices & Relays: High-efficiency production of dense jump-wire loops for heavy-duty switchgears, machinery breaker boxes, and power grid distribution blocks.
● Automotive Fuse Boxes & Junction Trunks: Mass assembly of centralized grounding modules and distribution wire clusters where multiple circuits flow into complex master terminal connectors. (Highly targeted at Tier-1 manufacturing corridors in Germany, South Korea, Mexico, and Poland).
● Consumer Appliances & HVAC Control Plugs: Prepares uniform multi-wire bridge ribbons for variable-frequency air conditioners, washing systems, and smart home kitchen control boards.
Feature ● Wire cutting, single (or double) end stripping, single (or double) end crimping, single end insertion of heat-shrink tub and heating, single end sleeve inserting machine ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Functions: Wire cutting, single/double-ended stripping, single/double/parallel-ended crimping, single/double/parallel heat-shrink tubing application. ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Equipped with high-precision servo motors for cutting and stripping mechanisms, the system delivers exceptional accuracy and consistency in wire processing operations. The positive and negative screw structure cutting blade ensures precise stripping results, while the robust ductile iron crimping mechanism provides stable crimping height and superior rigidity for reliable terminal connections. ● Featuring an intuitive color touchscreen interface with comprehensive program memory functions, the machine enables rapid product changeover through one-key parameter recall. The modular design allows individual function modules to be activated or deactivated as needed, maximizing production flexibility and equipment utilization across different product lines and manufacturing requirements.
Feature ● Maximum Rubber Sleeve Size: Diameter 30mm, Thickness 20mm, Square 30*30*20mm. ● Production Efficiency: Average 5 seconds/hole, slight differences may occur due to thread length and plastic shell positioning. ● Needle assembly changeover: 3 minutes; tube assembly changeover: 3 minutes; claw assembly changeover: 9 minutes. ● High production efficiency, saving 2-5 people and reducing manual labor intensity. ● High equipment compatibility; can achieve threading of various rubber sleeves through changeover, changeover time 15 minutes. ● High safety performance; multi-step, two-hand start-up. ● One-button switching between single and two rubber sleeve functions (customizable).
