Feature

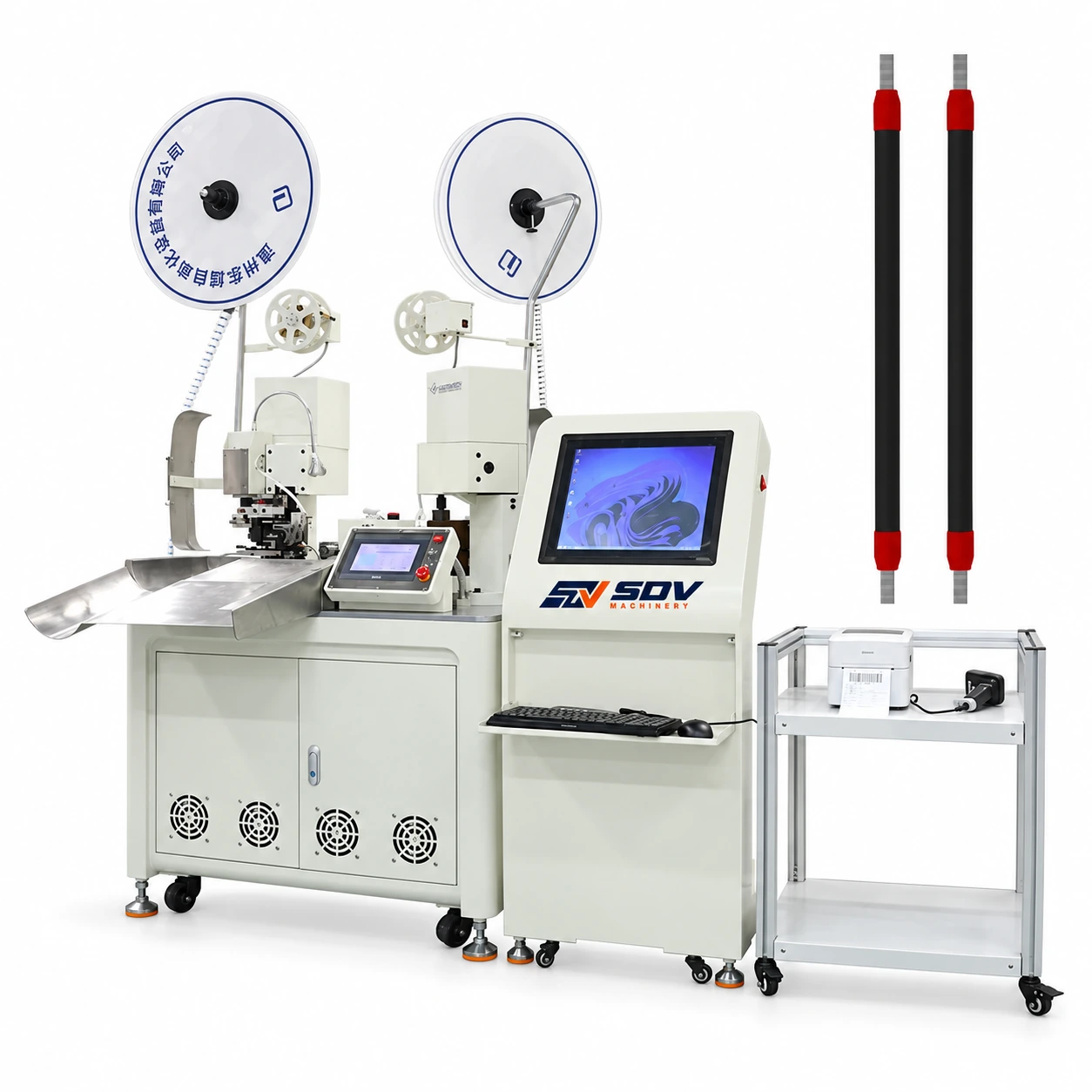

● Fully Automatic Double-End Processing: Integrates wire cutting, double-end stripping, twisting, and double-end ferrule/plastic shell terminal crimping into a single continuous cycle.
● Intelligent Task Management via Excel: Supports general and customized Excel file batch imports to load complex production runs instantly without manual entry errors.
● Barcode Material Match Verification: Scans incoming wire and terminal barcodes to confirm material compatibility before processing, preventing costly line setup mistakes.
● Traceable Process Control & Report Generation: Automatically prints work orders during processing and logs production metrics for detailed daily, monthly, and annual output reporting.
● High Precision & 2.0 Ton Crimping Force: Features cutting precision within ±(0.5 + 0.002 × L) mm and a robust 2.0 T crimping press accepting 30 mm or 40 mm stroke applicators.
● Comprehensive Error Detection & Safety: Built-in sensors detect wire run-out, low air pressure, and termination errors, with an optional crimping force monitor (CFM) for strict quality control.
Application Range
● Control Cabinet & Switchgear Panel Wiring: Automated double-end wire cutting, stripping, and bootlace ferrule crimping for PLC cabinets and terminal blocks.
● Automotive Wire Harness Assemblies: High-speed double-end preparation and terminal crimping for automotive sub-harnesses.
● Industrial & Home Appliance Cables: Efficient lead wire batch processing with computerized job import and process tracking.
● Industry 4.0 Digitalized Production: Ideal for smart factory environments requiring material barcode scanning, printed work order tracking, and output analytics.
Feature ● Wire cutting, single (or double) end stripping, single (or double) end crimping, single end insertion of heat-shrink tub and heating, single end sleeve inserting machine ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Functions: Wire cutting, single/double-ended stripping, single/double/parallel-ended crimping, single/double/parallel heat-shrink tubing application. ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Equipped with high-precision servo motors for cutting and stripping mechanisms, the system delivers exceptional accuracy and consistency in wire processing operations. The positive and negative screw structure cutting blade ensures precise stripping results, while the robust ductile iron crimping mechanism provides stable crimping height and superior rigidity for reliable terminal connections. ● Featuring an intuitive color touchscreen interface with comprehensive program memory functions, the machine enables rapid product changeover through one-key parameter recall. The modular design allows individual function modules to be activated or deactivated as needed, maximizing production flexibility and equipment utilization across different product lines and manufacturing requirements.
Feature ● Maximum Rubber Sleeve Size: Diameter 30mm, Thickness 20mm, Square 30*30*20mm. ● Production Efficiency: Average 5 seconds/hole, slight differences may occur due to thread length and plastic shell positioning. ● Needle assembly changeover: 3 minutes; tube assembly changeover: 3 minutes; claw assembly changeover: 9 minutes. ● High production efficiency, saving 2-5 people and reducing manual labor intensity. ● High equipment compatibility; can achieve threading of various rubber sleeves through changeover, changeover time 15 minutes. ● High safety performance; multi-step, two-hand start-up. ● One-button switching between single and two rubber sleeve functions (customizable).
