Feature
● Adjustable High-Speed Twisting
Twisting speed can be adjusted from 200–5,500 rpm, allowing flexible processing for both delicate and standard conductors.
● Multi-Segment Programmable Control
Supports up to 20 programmable twisting segments, enabling different twisting profiles within a single production program.
● Intelligent Soft-Start Function
Multiple soft-start modes help protect thin wires from excessive tension during startup, improving twisting quality for fine conductors.
● Fast Start & Instant Braking
The machine accelerates quickly and features high-speed electronic braking to improve production efficiency and shorten cycle times.
● User-Friendly LCD Interface
The backlit LCD display simplifies parameter setting, while storage for 99 material programs allows quick recall of frequently used production settings.
Application Range

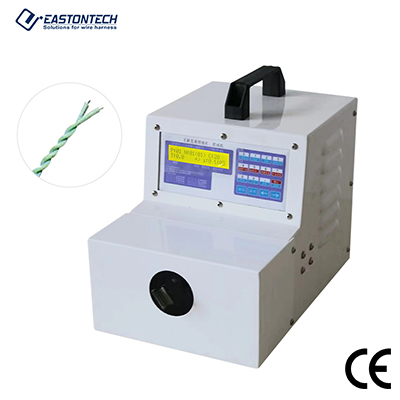

The EW-20F-2 is designed for manufacturers requiring programmable wire twisting with adjustable speed and multi-segment control, making it suitable for a wide range of electrical and wire harness applications.
● Wire Harness Manufacturing: Twists conductors for automotive, appliance, and industrial wire harness production with consistent twisting quality.
● Electronics Assembly: Suitable for fine electronic wires where soft-start control helps protect delicate conductors.
● Communication Cable Production: Processes twisted conductors used in signal transmission and communication equipment.
● Control Cabinet Wiring: Produces twisted conductors for electrical panels and industrial automation equipment.
● OEM Wire Processing: Stores multiple material programs for quick product changeovers across different wire specifications.
