Feature

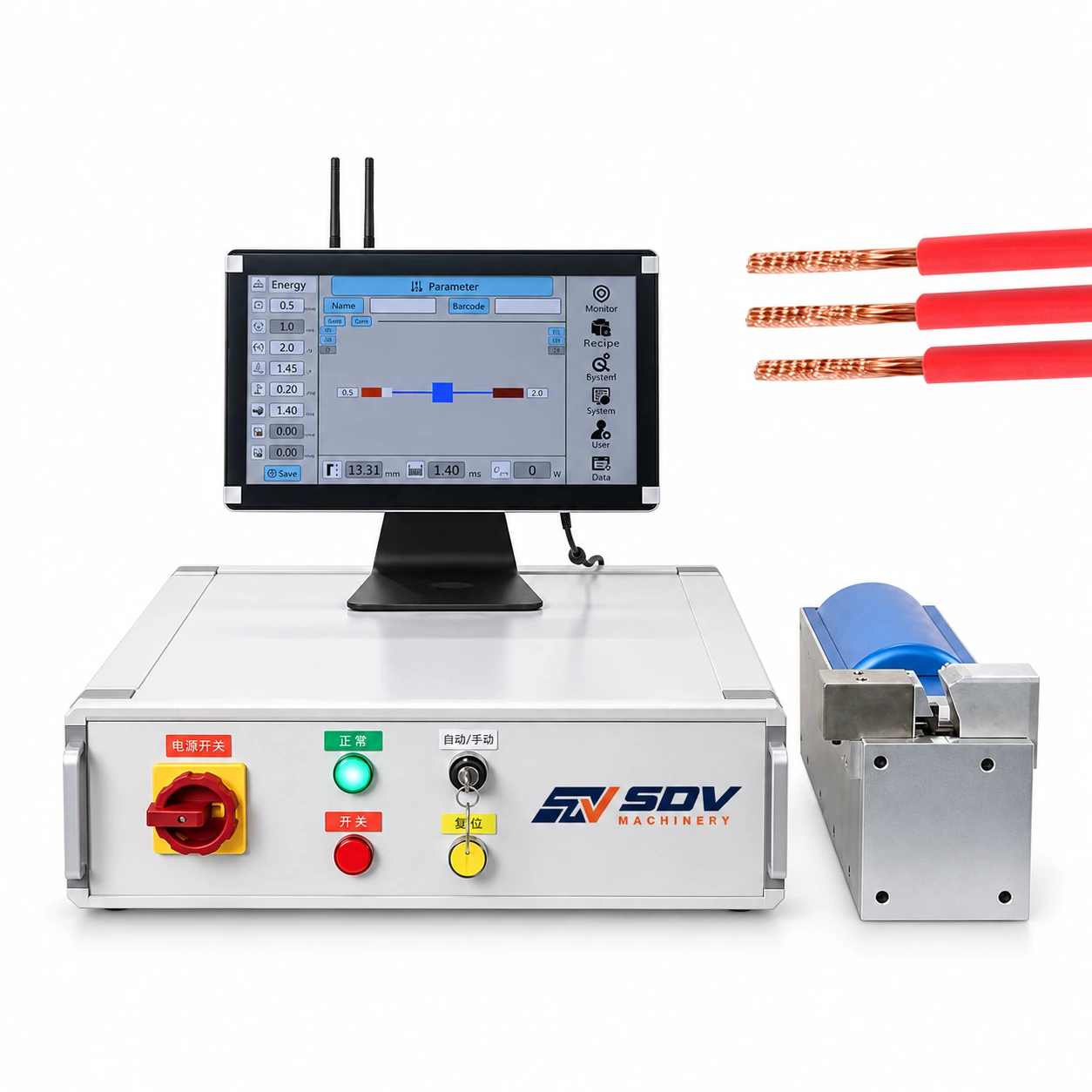

● Solid-State Ultrasonic Joining (20 kHz / 3000W): Creates zero-resistance, gas-tight molecular bonds between copper-to-copper, aluminum-to-aluminum, or dissimilar copper-to-aluminum conductors.
● Broad Splicing Range (0.35–20 mm²): Versatile dual-range capacity accommodates fine signal leads (0.35–3 mm²) up to heavy automotive power splices (3–20 mm²).
● Smart Factory & MES Connectivity: Connects seamlessly with factory MES networks for real-time welding data tracking, automated job dispatching, and complete process traceability.
● In-Line Quality Monitoring System: Continuously tracks weld energy, time, and collapse height during every cycle to guarantee joint strength and detect out-of-tolerance wires.
● Eliminates Crimp Sleeves & Solder Flux: Saves material costs and reduces harness bundle weight by welding bare conductors directly, preventing thermal degradation and corrosion.
● Automatic Adjustment & Overload Protection: Microprocessor-controlled automatic parameter tuning shortens setup times, while overload protection guards piezoelectric transducers and welding horns.
Application Range
● Automotive Wire Harness Splicing: In-line wire-to-wire splicing and wire end knotting for door looms, dashboard harnesses, and engine bays.
● EV & New Energy Vehicle Cabling: High-reliability copper and aluminum conductor welding for battery packs, charging ports, and power distribution units.
● Relay & Sensor Assemblies: Precise, flame-free micro-welding for relay leads, fuse blocks, and multi-pin sensor junctions.
● Industrial & Home Appliance Wiring: Solderless, flux-free wire jointing for home appliances, power tools, and industrial machinery controls.
