Feature

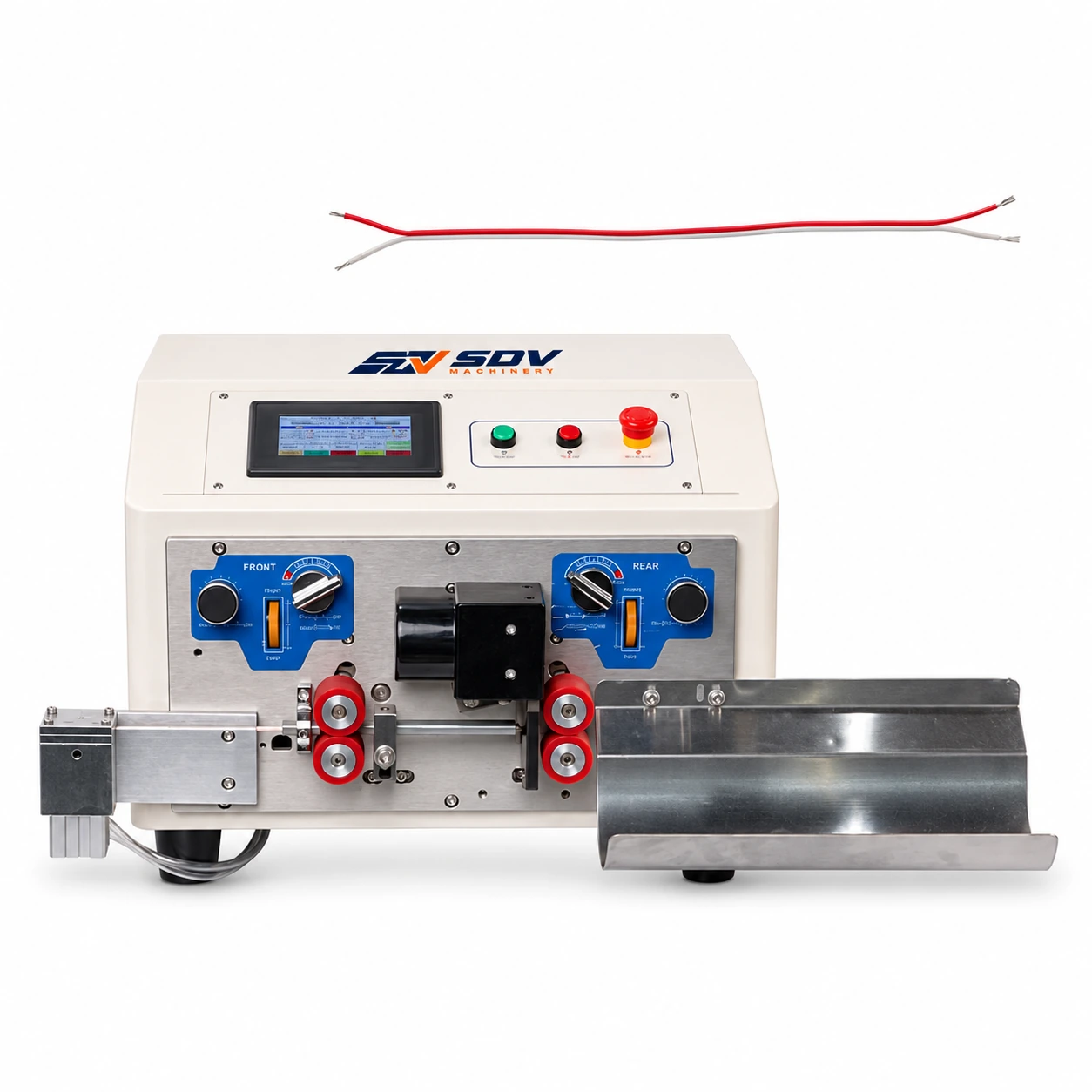

● Unlimited Slitting Length Capability: Pneumatic cylinder and roller pulling assembly allows free, unrestricted longitudinal slitting lengths without damaging internal core insulation.
● Burr-Free Art-Blade Wire Separation: Precision art blade cutting system cleanly separates twin conductors, ensuring smooth, unblemished insulation edges without nicking copper strands.
● 0.01 mm High-Precision Silent Stepper Drive: Silent hybrid stepper motor controls feeding and stripping depth with micro-fine 0.01 mm accuracy across cut lengths from 0.1 mm to 99,999.9 mm.
● 2-in-1 Convertible Modular Design: Independent slitting mechanism can be detached in minutes, enabling the machine to process standard single-conductor electronic wires.
● Staggered Length Mode (L-Model Feature): Integrated wire clamping system supports offset/staggered wire end lengths, allowing effortless switching between equal-length and offset-length processing modes.
● Full Touch-Screen CNC Computer Control: User-friendly touch-screen interface supports 100 job program memory slots and one-touch setup for single/double-end stripping, branching, and wire dropping.
Application Range
● Power Cord & Appliance Cabling: Automated slitting, stripping, and cutting of flat 2-core power leads, lamp cords, and plug wiring.
● Audio/Visual & Speaker Wiring: Clean separation and end-stripping for parallel twin speaker cables and audio patch cords.
● Automotive & Consumer Electronics: Precision processing of dual-lead internal power distribution wiring and sensor harnesses.
● General Electronic Wire Processing: Quick removal of the slitting module transforms the machine to process standard single-conductor hookup wires.
Feature ● Wire cutting, single (or double) end stripping, single (or double) end crimping, single end insertion of heat-shrink tub and heating, single end sleeve inserting machine ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Functions: Wire cutting, single/double-ended stripping, single/double/parallel-ended crimping, single/double/parallel heat-shrink tubing application. ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Equipped with high-precision servo motors for cutting and stripping mechanisms, the system delivers exceptional accuracy and consistency in wire processing operations. The positive and negative screw structure cutting blade ensures precise stripping results, while the robust ductile iron crimping mechanism provides stable crimping height and superior rigidity for reliable terminal connections. ● Featuring an intuitive color touchscreen interface with comprehensive program memory functions, the machine enables rapid product changeover through one-key parameter recall. The modular design allows individual function modules to be activated or deactivated as needed, maximizing production flexibility and equipment utilization across different product lines and manufacturing requirements.
Feature ● Maximum Rubber Sleeve Size: Diameter 30mm, Thickness 20mm, Square 30*30*20mm. ● Production Efficiency: Average 5 seconds/hole, slight differences may occur due to thread length and plastic shell positioning. ● Needle assembly changeover: 3 minutes; tube assembly changeover: 3 minutes; claw assembly changeover: 9 minutes. ● High production efficiency, saving 2-5 people and reducing manual labor intensity. ● High equipment compatibility; can achieve threading of various rubber sleeves through changeover, changeover time 15 minutes. ● High safety performance; multi-step, two-hand start-up. ● One-button switching between single and two rubber sleeve functions (customizable).
