Feature
● Multi-Material Cutting in One Machine

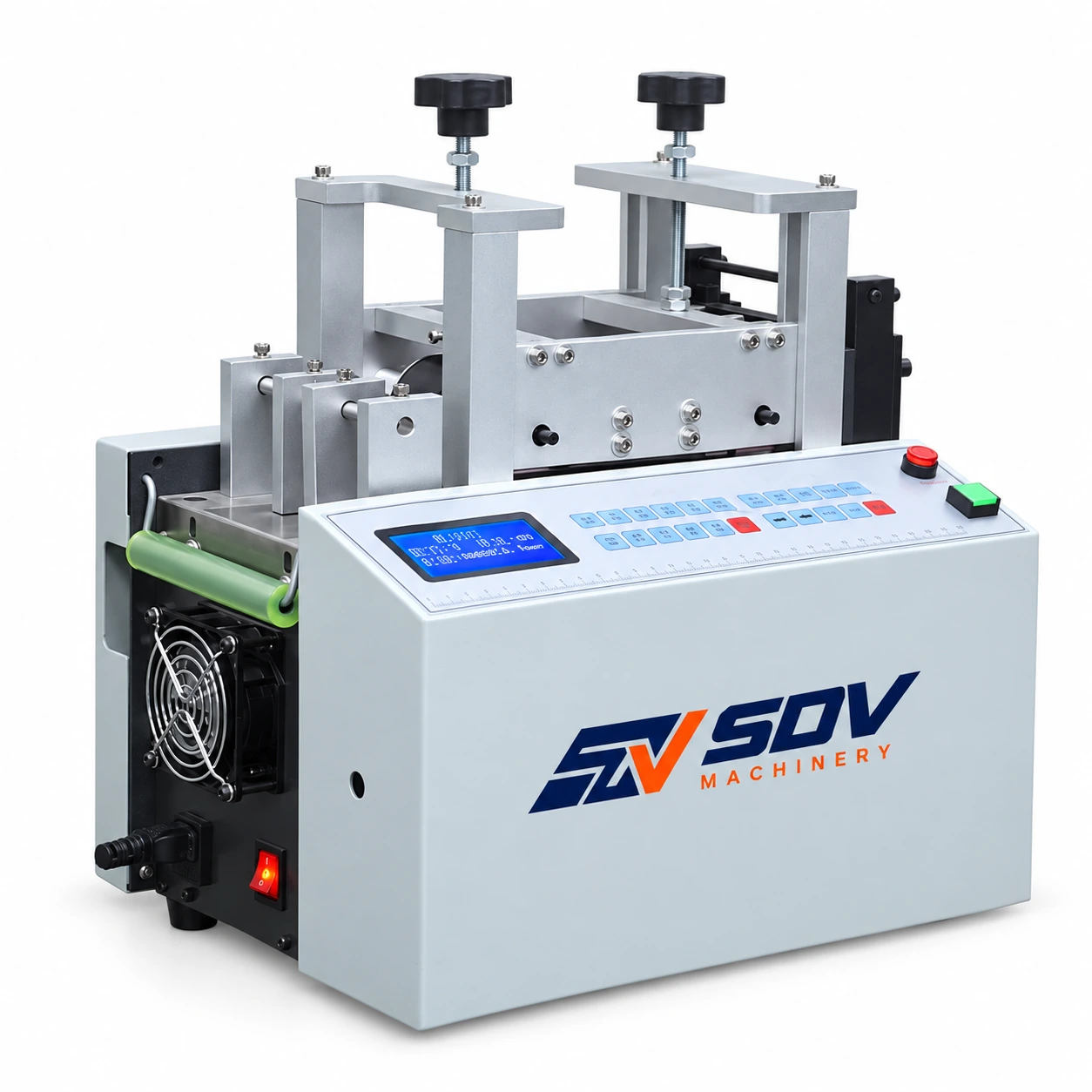

The EW-1295 cuts a wide variety of industrial materials, including tubes, hoses, fabrics, paper, films, foams, wires, cables, and ropes, reducing the need for multiple dedicated cutting machines.
● High-Speed ARM Control System
The ARM processor provides fast operation, large memory capacity, and stable performance while supporting production speeds of 7,200–9,000 pieces per hour.
● 0.1 mm Precision Cutting
Supporting cutting lengths from 1–9999.9 mm with 0.1 mm cutting tolerance and 0.1 mm length increments, the machine delivers consistent cutting accuracy for demanding production tasks.
● Adjustable 4-Rail Feeding System
The adjustable feeding rails accommodate materials up to 45 mm wide and can support multiple production lines, improving flexibility for different material sizes.
Application Range
● Tube & Hose Processing: Automatic cutting for plastic tubes, silicone hoses, rubber hoses, and flexible pipes requiring consistent length accuracy.
● Wire & Cable Manufacturing: Suitable for cutting wires, cables, ropes, and insulation materials used in electrical and industrial production.
● Packaging & Film Processing: Efficient cutting for paper, films, strips, bands, and foil materials used in packaging and converting industries.
● Foam & Textile Production: Ideal for cutting foam, fabric, and soft flexible materials with stable feeding and repeatable cutting performance.
● Industrial Material Converting: Supports high-volume processing of various rolled materials with adjustable feeding rails for different material widths.
Feature ● Wire cutting, single (or double) end stripping, single (or double) end crimping, single end insertion of heat-shrink tub and heating, single end sleeve inserting machine ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Functions: Wire cutting, single/double-ended stripping, single/double/parallel-ended crimping, single/double/parallel heat-shrink tubing application. ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Equipped with high-precision servo motors for cutting and stripping mechanisms, the system delivers exceptional accuracy and consistency in wire processing operations. The positive and negative screw structure cutting blade ensures precise stripping results, while the robust ductile iron crimping mechanism provides stable crimping height and superior rigidity for reliable terminal connections. ● Featuring an intuitive color touchscreen interface with comprehensive program memory functions, the machine enables rapid product changeover through one-key parameter recall. The modular design allows individual function modules to be activated or deactivated as needed, maximizing production flexibility and equipment utilization across different product lines and manufacturing requirements.
Feature ● Maximum Rubber Sleeve Size: Diameter 30mm, Thickness 20mm, Square 30*30*20mm. ● Production Efficiency: Average 5 seconds/hole, slight differences may occur due to thread length and plastic shell positioning. ● Needle assembly changeover: 3 minutes; tube assembly changeover: 3 minutes; claw assembly changeover: 9 minutes. ● High production efficiency, saving 2-5 people and reducing manual labor intensity. ● High equipment compatibility; can achieve threading of various rubber sleeves through changeover, changeover time 15 minutes. ● High safety performance; multi-step, two-hand start-up. ● One-button switching between single and two rubber sleeve functions (customizable).
