Feature

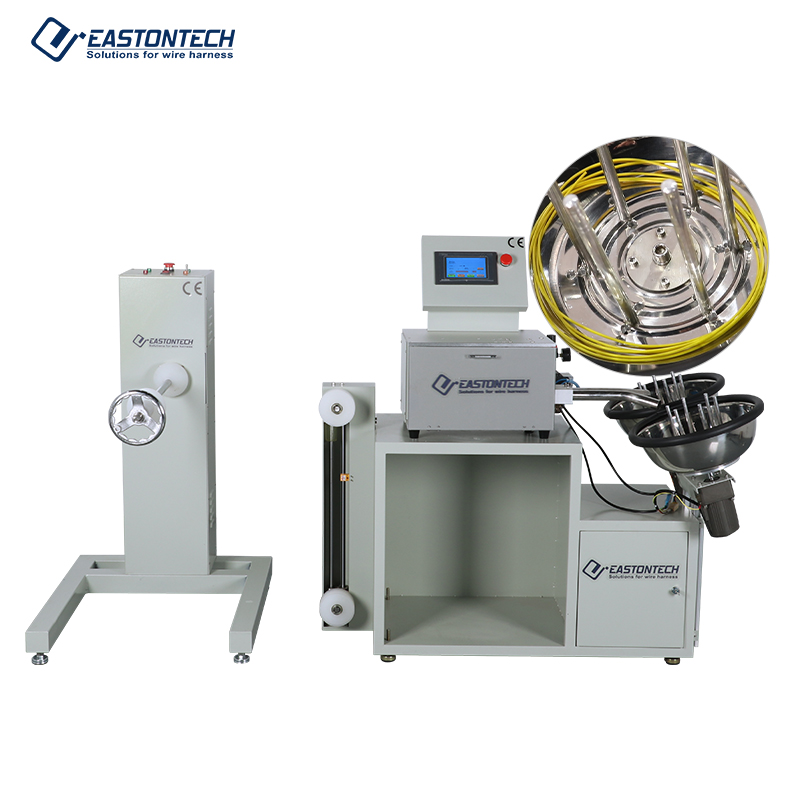

● 3-in-1 Measuring, Cutting & Ring Winding: Fully automates cable unwinding, high-accuracy length measurement, shear cutting, and uniform ring coiling in a single continuous cycle.
● Rapid Delivery Speed (1.6 m/s) with High Accuracy (≤ 3‰): Reaches feed speeds up to 1.6 m/s while using batch data feedback compensation to maintain high precision length calculation.
● Broad Optical Cable Compatibility (ø 0.9 – ø 7.0 mm): Handles single-core, dual-core, ribbon, and flat FTTH drop/leather fiber cables without causing micro-bending or cladding damage.
● Heavy-Duty 35 kg Payoff Reel Capacity: Robust unwinding mechanism supports large cable drums up to 35 kg for non-stop long-run processing up to 999 meters per piece.
● Bilingual Touch Screen Control System: Intuitive Chinese/English touch interface enables operators to set length, speed, and batch targets quickly with minimal training.
● Double Automatic Circuit Protection: Integrated double protection against frequency offset and current overload safeguards electronic drive components during continuous operation.
Application Range
● Fiber Optic Patch Cord & Jumper Production: High-volume measuring, cutting, and ring coiling for simplex and duplex optical jumpers.
● FTTH Drop Cable Processing: Automated coiling and cutting of flat "leather" drop cables for home broadband installation kits.
● Ribbon Fiber & Multi-Core Cable Preparation: Tension-controlled unwinding and neat coiling of ribbon optical cables without fiber attenuation.
● Telecom & Data Center Assembly: Precision long-length optical cable processing up to 999 meters per segment.
Feature ● Wire cutting, single (or double) end stripping, single (or double) end crimping, single end insertion of heat-shrink tub and heating, single end sleeve inserting machine ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Functions: Wire cutting, single/double-ended stripping, single/double/parallel-ended crimping, single/double/parallel heat-shrink tubing application. ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Equipped with high-precision servo motors for cutting and stripping mechanisms, the system delivers exceptional accuracy and consistency in wire processing operations. The positive and negative screw structure cutting blade ensures precise stripping results, while the robust ductile iron crimping mechanism provides stable crimping height and superior rigidity for reliable terminal connections. ● Featuring an intuitive color touchscreen interface with comprehensive program memory functions, the machine enables rapid product changeover through one-key parameter recall. The modular design allows individual function modules to be activated or deactivated as needed, maximizing production flexibility and equipment utilization across different product lines and manufacturing requirements.
Feature ● Maximum Rubber Sleeve Size: Diameter 30mm, Thickness 20mm, Square 30*30*20mm. ● Production Efficiency: Average 5 seconds/hole, slight differences may occur due to thread length and plastic shell positioning. ● Needle assembly changeover: 3 minutes; tube assembly changeover: 3 minutes; claw assembly changeover: 9 minutes. ● High production efficiency, saving 2-5 people and reducing manual labor intensity. ● High equipment compatibility; can achieve threading of various rubber sleeves through changeover, changeover time 15 minutes. ● High safety performance; multi-step, two-hand start-up. ● One-button switching between single and two rubber sleeve functions (customizable).
