Feature

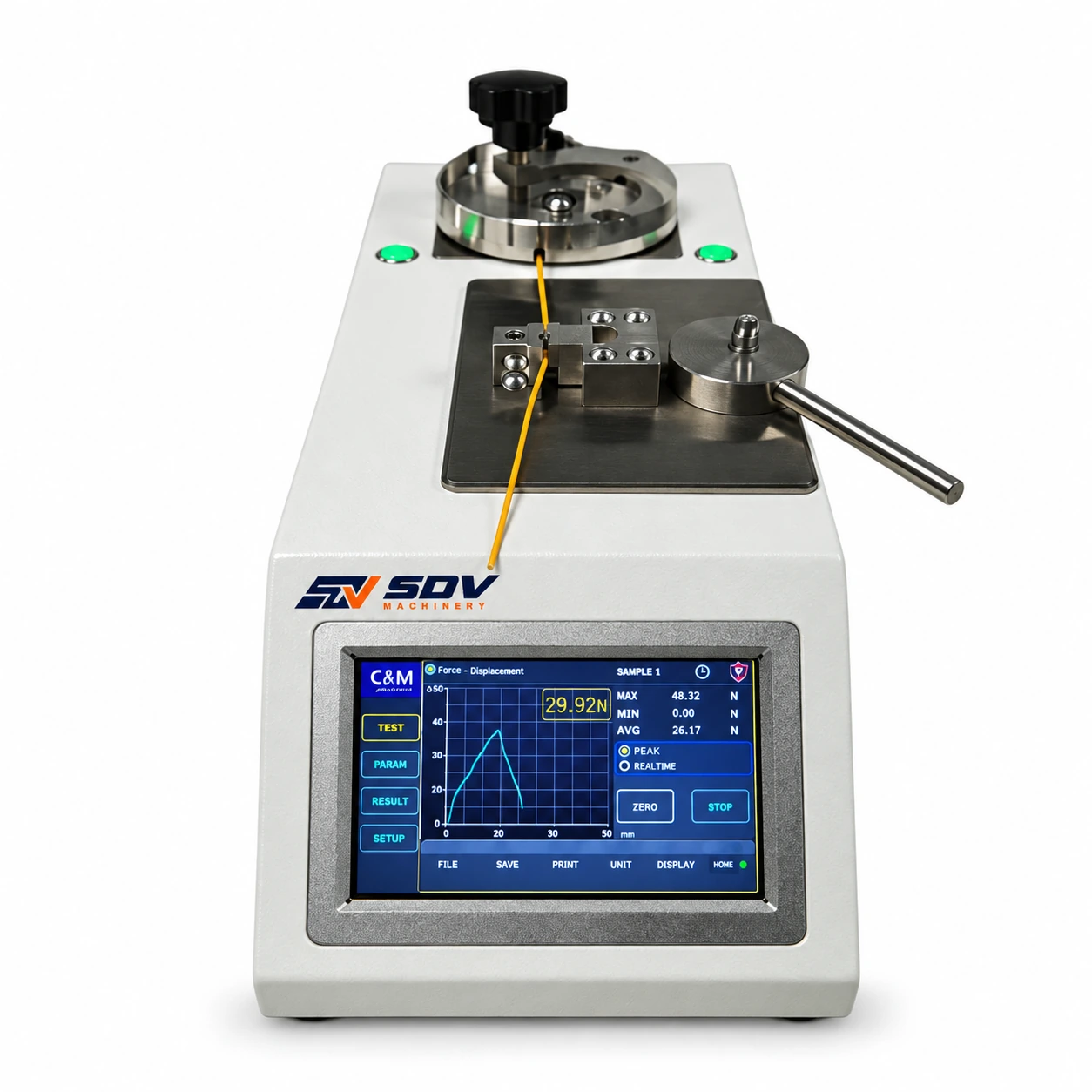

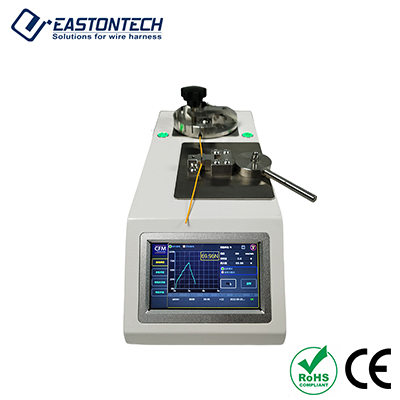

● Motorized Auto-Clamping & Auto-Return: Eliminates manual clamping fatigue—the motorized jaws automatically grip the terminal during testing and return to home position upon cycle completion.
● Class 0.05% Accuracy & Real-Time Curve Display: High-precision sensor measures forces up to 980 N with 0.01 N resolution, displaying real-time tension curves and peak force values on a clear LCD screen.
● Seamless MES Quality System Integration: Built-in MES connectivity automatically transfers pull-test results and timestamps to your factory server for digital quality tracking and paperless auditing.
● Configurable Force-Holding (Retention) Mode: Allows operators to set specific target holding forces and duration times to evaluate terminal deformation under continuous stress.
● Programmable Test Speeds (0–999 mm/min): Features preset speeds of 25, 50, and 100 mm/min, with fully customizable traction speeds up to 999 mm/min for specialized wire pull specs.
● Multi-Unit & Dual-Language Interface: Supports instantaneous unit switching between Newtons (N), Kilograms (kgf), and Pounds (lbf) across English and Chinese menu options.
Application Range
● Automotive Wire Harness Quality Control: Precision verification of terminal-to-wire crimp pull strength for ECU, airbag, and chassis wiring systems.
● Appliance & Industrial Cabinet Wiring: Destructive pull-off testing and non-destructive retention testing for ferrule, flag, and ring terminals.
● IPC/WHMA-A-620 Quality Auditing: Standardized pull testing for ISO/IATF 16949 compliant harness manufacturing lines.
● Industry 4.0 Smart Factories: Automatic pull-test data collection and MES server logging for complete digital production traceability.
