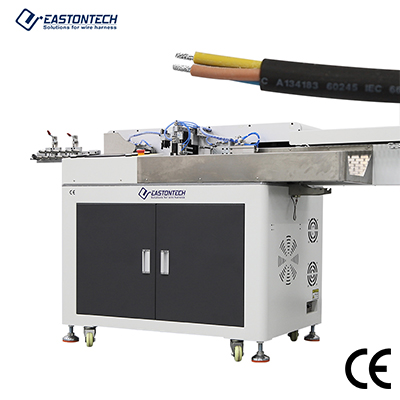

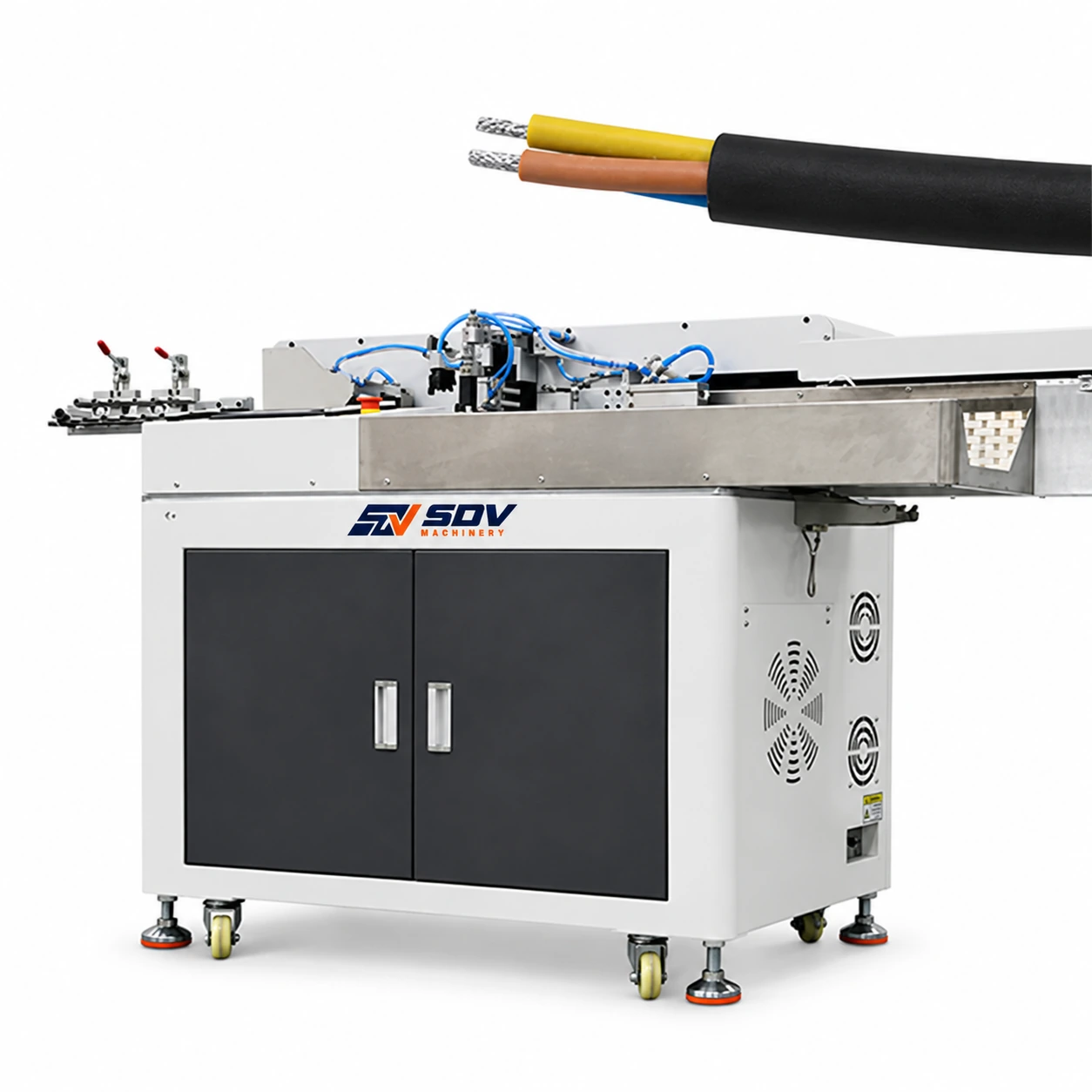

Feature
● High-Throughput 8-Wire Parallel Processing: Simultaneously feeds, strips, twists, and tins up to 8 individual wires in a single automated cycle, multiplying workstation output.
● Versatile Processing Sequences: Supports wire cutting, single/double-end jacket stripping, inner core stripping, single/double-end strand twisting, and single/double-end flux and tin dipping.
● Precision Temperature & Tinning Control: Maintains stable solder pot temperatures and automated immersion depth (1–20 mm) to ensure 100% gas-tight, bright tinned leads without cold solder spots.
● Extended Jacket Stripping Range: Processes long outer jacket strip lengths up to 70 mm on the front end and up to 130 mm on the rear end for complex multi-core breakout cables.
● Optional CCD Visual Quality Inspection: Integrates optional vision system detection and process monitoring (CFM) to inspect tinning coverage, stripping length, and strand alignment in real time.
● Intuitive Touchscreen Controller: Features a user-friendly program interface allowing quick adjustment of cut lengths (170–1,500 mm), strip depths, twist intensity, and tinning dwell times.
Application Range
● Consumer Electronics & Appliance Wiring: High-speed stripping, twisting, and tinning for multi-lead connecting wires and power jumper leads.
● Automotive & Marine Sensor Assemblies: Uniform tin dipping for multi-core sensor cabling requiring screwless PCB block solder terminations.
● Industrial Control Panel Cabling: High-volume preparation of multi-strand copper leads requiring tinned ends to prevent strand fraying during terminal installation.
● Contract Harness Bench Stations: Rapid parallel processing of ultra-short to long multi-wire leads for custom electronics manufacturing.
Feature ● Wire cutting, single (or double) end stripping, single (or double) end crimping, single end insertion of heat-shrink tub and heating, single end sleeve inserting machine ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Functions: Wire cutting, single/double-ended stripping, single/double/parallel-ended crimping, single/double/parallel heat-shrink tubing application. ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Equipped with high-precision servo motors for cutting and stripping mechanisms, the system delivers exceptional accuracy and consistency in wire processing operations. The positive and negative screw structure cutting blade ensures precise stripping results, while the robust ductile iron crimping mechanism provides stable crimping height and superior rigidity for reliable terminal connections. ● Featuring an intuitive color touchscreen interface with comprehensive program memory functions, the machine enables rapid product changeover through one-key parameter recall. The modular design allows individual function modules to be activated or deactivated as needed, maximizing production flexibility and equipment utilization across different product lines and manufacturing requirements.
Feature ● Maximum Rubber Sleeve Size: Diameter 30mm, Thickness 20mm, Square 30*30*20mm. ● Production Efficiency: Average 5 seconds/hole, slight differences may occur due to thread length and plastic shell positioning. ● Needle assembly changeover: 3 minutes; tube assembly changeover: 3 minutes; claw assembly changeover: 9 minutes. ● High production efficiency, saving 2-5 people and reducing manual labor intensity. ● High equipment compatibility; can achieve threading of various rubber sleeves through changeover, changeover time 15 minutes. ● High safety performance; multi-step, two-hand start-up. ● One-button switching between single and two rubber sleeve functions (customizable).
